| End-to-end inspection and analysis time (a) | MPO-12: 10 s MPO-24: 15 s Single-fiber: 4 s |
| Field of view | Multi-fiber: 2.03 mm × 5.16 mm Single-fiber: 0.75 mm × 0.75 mm |
| Pass/fail analysis | IEC 61300-3-35 ED.3(2022) (b), IEC 61300-3-35 (2015), user-set criteria |
| Camera sensor | 2 sensors of 5 megapixels |
| Light source | 2 violet LEDs at 415 ±15 nm |
| Lighting technique | Coaxial, pulsed |
| Display | 2.4 in IPS color LCD 166 dpi + capacitive touchscreen |
| CPU | 1.4 GHz dual core |
| Connectivity | Bluetooth®, Wi-Fi and USB-C |
| Battery type | Lithium-ion polymer (Li-Po) rechargeable battery |
| Autonomy (c) | 11 hours |
| Connector | USB-C |
| Local storage capability | 10 000 single-fiber connectors measurements or 5000 duplex-fiber connectors measurements or 2000 multi-fiber connectors (MPO 12) measurements The available memory for storage is 1.2 GB (on the entire system’s 2 GB) |
| a. Typical. b. Full SFOV and partial LFOV. c. Typical. Measured in eco mode – backlight 35% – Bluetooth/Wi-Fi off. One (1) single-fiber test per minute. | |
| Size (H × W × D) | 196 mm × 230 mm × 59 mm (7 3/4 in × 9 1/16 in × 2 5/16 in) |
| Reach (d) | 99 mm (3 15/16 in) |
| Weight (e) | 580 g (1.28 lb) |
| Temperature | Operating: –10 °C to 40 °C (14 °F to 104 °F) Storage: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity range | 0 % to 95 % non-condensing |
| Supported languages | Chinese (Simplified), English, French, German, Japanese, Korean and Spanish |
| Warranty (year) | 1 |

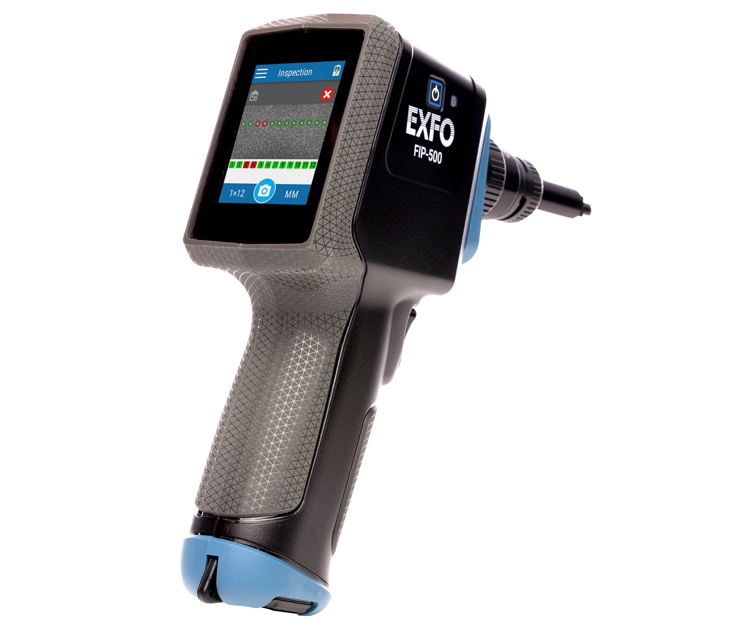

| d. From FIP-500 body to the extremity of the adapter tip. e. FIP-500 weight including optical head for multi-fiber (OHMF) and MPO UPC tip (STIP-MPO-U). Excluding the protective cap (GP-2300). | |
