FIP-500 - Fiber inspection scope

Download spec sheet
Download spec sheet
Overview
Industry’s first AI-driven endface analysis for simplex, duplex and multi-fiber connectors. Delivers reliable and repeatable results with a self-contained, fully automated tool for zero-button testing all day—no need to recharge batteries or offload results.

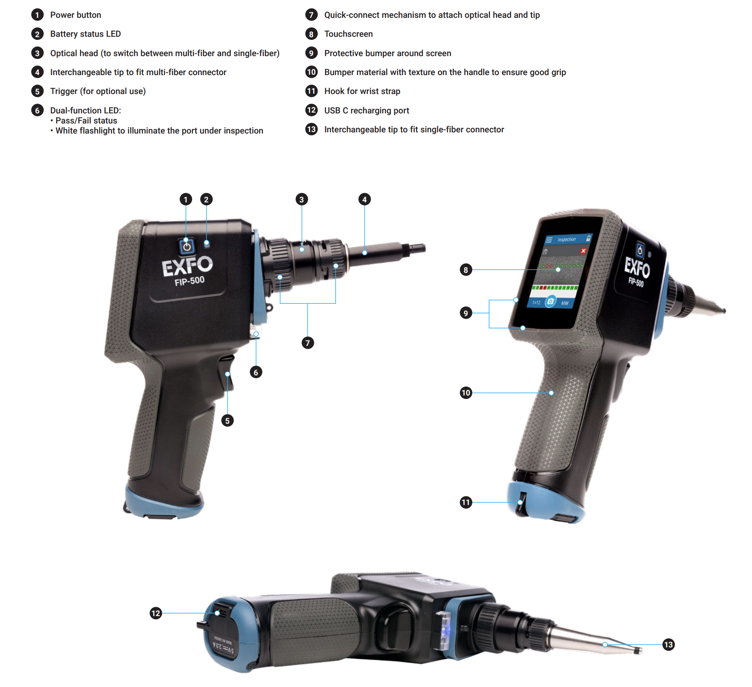

FIP-500 - Fiber inspection scope

Key features

  • First AI-powered inspection in the industry for enhanced detection accuracy even in poor lighting or dirty fiber scenarios
  • Fastest inspection in the industry (in under 10 seconds for MPO-12)
  • Best-in-class optical performance for accurate and repeatable results
  • Zero-button inspection: 100% automated from insertion to data saving
  • Wide array of adapter tips for single, duplex and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)
  • Smartphone-grade 2.4-inch color touchscreen

Applications

  • Central offices, exchanges and headends
  • Data centers
  • Wireless (e.g., 5G, FTTA, DAA, small cells)
  • Fiber-to-the-home (FTTH)

Specifications

Technical specifications
End-to-end inspection and analysis timeMPO-12: 10 s
MPO-24: 15 s
Single-fiber: 4 s (a)
Field of viewMulti-fiber: 2.03 mm × 5.16 mm
Single-fiber: 0.75 mm × 0.75 mm
Pass/fail analysisIEC 61300-3-35 ED.3(2022) (b), IEC 61300-3-35 (2015), user-set criteria
Camera sensor2 sensors of 5 megapixels
Light source2 violet LEDs at 415 ±15 nm
Lighting techniqueCoaxial, pulsed
Display2.4 in IPS color LCD 166 dpi + capacitive touchscreen
CPU1.4 GHz dual core
ConnectivityBluetooth®, Wi-Fi and USB-C
Battery typeLithium-ion polymer (Li-Po) rechargeable battery
Autonomy11 hours (c)
ConnectorUSB-C
Local storage capability10 000 single-fiber connectors measurements or
5000 duplex-fiber connectors measurements or
2000 multi-fiber connectors (MPO 12) measurements
The available memory for storage is 1.2 GB (on the entire system's 2 GB)
(a) Typical.

(b) Full SFOV and partial LFOV.

(c) Typical. Measured in eco mode – backlight 35% – Bluetooth/Wi-Fi off. One (1) single-fiber test per minute.
General specifications
Size (H × W × D)196 mm × 230 mm × 59 mm (7 3/4 in × 9 1/16 in × 2 5/16 in)
Reach99 mm (3 15/16 in) (d)
Weight580 g (1.28 lb) (e)
Temperature Operating–10 °C to 40 °C (14 °F to 104 °F)
Storage–20 °C to 60 °C (–4 °F to 140 °F)
Humidity range0 % to 95 % non-condensing
Supported languagesChinese (Simplified), English, French, German, Japanese, Korean and Spanish
Warranty (year)1
(d) From FIP-500 body to the extremity of the adapter tip.

(e) FIP-500 weight including optical head for multi-fiber (OHMF) and MPO UPC tip (STIP-MPO-U). Excluding the protective cap (GP-2300).
