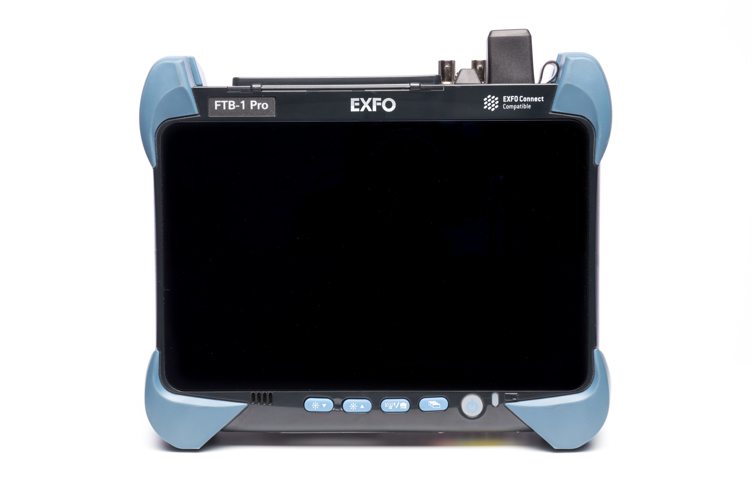

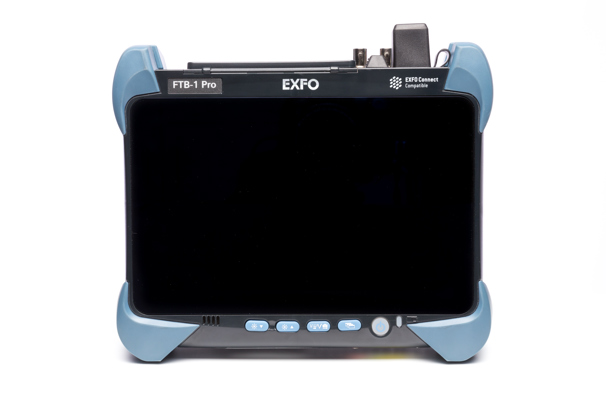

FTB-1v2 Pro - Single- or dual-carrier platform

Empowering frontline technicians with a truly fast and powerful multitechnology test platform.

Overview

Empowering frontline technicians with a truly fast and powerful multitechnology test platform.

Key features

Connects anywhere: USB, mobile, Wi-Fi, VPN and Bluetooth
Loaded with utilities: equipped with all the tools needed to optimize field testing, plus any third-party applications
Like a PC: available with a dual- or quad-core processor and Windows operating system
EXFO Connect-ready: automated asset management; data goes through the cloud and into a dynamic database
Single- or dual-carrier configuration available to slot compatible FTBx test modules.
High-power two-slot carrier configuration enabling simultaneous 100G quad port testing

Key features

Connects anywhere: USB, mobile, Wi-Fi, VPN and Bluetooth

Loaded with utilities: equipped with all the tools needed to optimize field testing, plus any third-party applications

Like a PC: available with a dual- or quad-core processor and Windows operating system

EXFO Connect-ready: automated asset management; data goes through the cloud and into a dynamic database

Single- or dual-carrier configuration available to slot compatible FTBx test modules.

High-power two-slot carrier configuration enabling simultaneous 100G quad port testing

Applications

Access fiber networks

FTTH testing

Fiber characterization

Multiservice testing up to 10 Gbit/s

Gigabit/10 Gigabit Ethernet configurations

RF spectrum analysis over CPRI

Wireless fronthaul and backhaul testing

Technical specifications
Mainframe	Quad-core processor / 8 GB RAM
Operating system	Windows 10 IoT Enterprise LTSC 2021
Display	Touchscreen, color, 1280 × 800 TFT 203 mm (8 in)
Interfaces	RJ45 LAN 10/100/1000 Mbit/s USB 2.0 ports (2) USB 3.0 port (1) Micro SD card slot 3.5 mm headset/microphone port
Storage (internal flash memory)	128 GB
Battery	Rechargeable Li-ion smart battery (Two batteries with the high-power dual carrier)
Power supply	AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A
With high-power dual carrier	AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 5.0 A max, output: 24 V; 13.75 A
Calibrated wavelengths (nm)	850, 1300, 1310, 1490, 1550, 1577, 1625, 1650 ^(d)
Optional CWDM calibrated wavelengths (nm)	1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1383 and 1625 ^(d)
Power range (dBm)	Typical 27 to –50 ^(d)
Uncertainty	±5 % ± 10 nW ^{(d), (e), (f)}
Display resolution (dB)	0.01 = max to –40 dBm 0.1 = –40 dBm to –50 dBm ^(d)
^{Note: All specifications valid at 23 °C (73 °F). (d) At 23 °C ± 1 °C, 1550 nm and FC connector. With modules in idle mode. Battery-operated after warm-up. (e) Typical. (f) At calibration conditions.}

General specifications
Size (H × W × D) With single-depth module back / With single carrier	210 mm × 254 mm × 66 mm (8 ¼ in × 10 in × 2 ⅝ in)
With double-depth module back / With dual carrier	210 mm × 254 mm × 96 mm (8 ¼ in × 10 in × 3 ⅞ in)
With high-power dual carrier	210 mm × 254 mm × 122 mm (8 ¼ in × 10 in × 4 ¾ in)
Weight (with battery) ^(c) With single carrier	1.5 kg (3.3 lb) 2.0 kg (4.3 lb)
With dual carrier	2.4 kg (5.2 lb)
With high-power dual carrier	3.2 kg (7.1 lb)
Temperature Operating	0 °C to 50 °C (32 °F to 122 °F)
Storage	–40 °C to 70 °C (–40 °F to 158 °F) ^(b)
Relative humidity	0 % to 95 % non-condensing
^{(b) –20 °C to 60 °C (–4 °F to 140 °F) with the battery, and –20 °C to 45 °C (–4 °F to 113 °F) for long-term storage. (c) Platform with batteries and without module.}
