Icon-based view with optical link mapper (OLM), simplifying OTDR trace interpretation
AXS-120 - Last-mile/Access compact OTDR
Overview
Compact yet mighty, the AXS-120 brings EXFO’s renowned OTDR accuracy, reliability and durability to the field in a compact form factor.
Key features
Automated macrobend detection
Optimized display of test results (single-screen summary)
Test Title
Integrated testing essentials: VFL, inline light source and power checker
Swap-out connectors: patented field-replaceable connectors
Applications
FTTH testing
P2P Access
FTTx PON
Passive Optical Lan (POL)
CATV/HFC network testing
FTTA fiber-DAS installations
This essential tool is extremely user-friendly and packed with innovative features:
Optical link mapper (OLM)
Automatic analysis of multiple wavelengths with a consolidated icon-based link view:
- Synced with events and placed on the same screen below the OTDR trace to better explain and understand events.
- Display of end-to-end link length, loss and ORL according to the pass/fail settings.
- Automatic parameter settings and clear go/no-go results.
- Prompt guidance on what and where the network issues are.
Helping you accelerate the learning curve
Compact yet mighty, the AXS-120 simplifies testing for all contractors and field crews, no matter their crew size or level of experience.

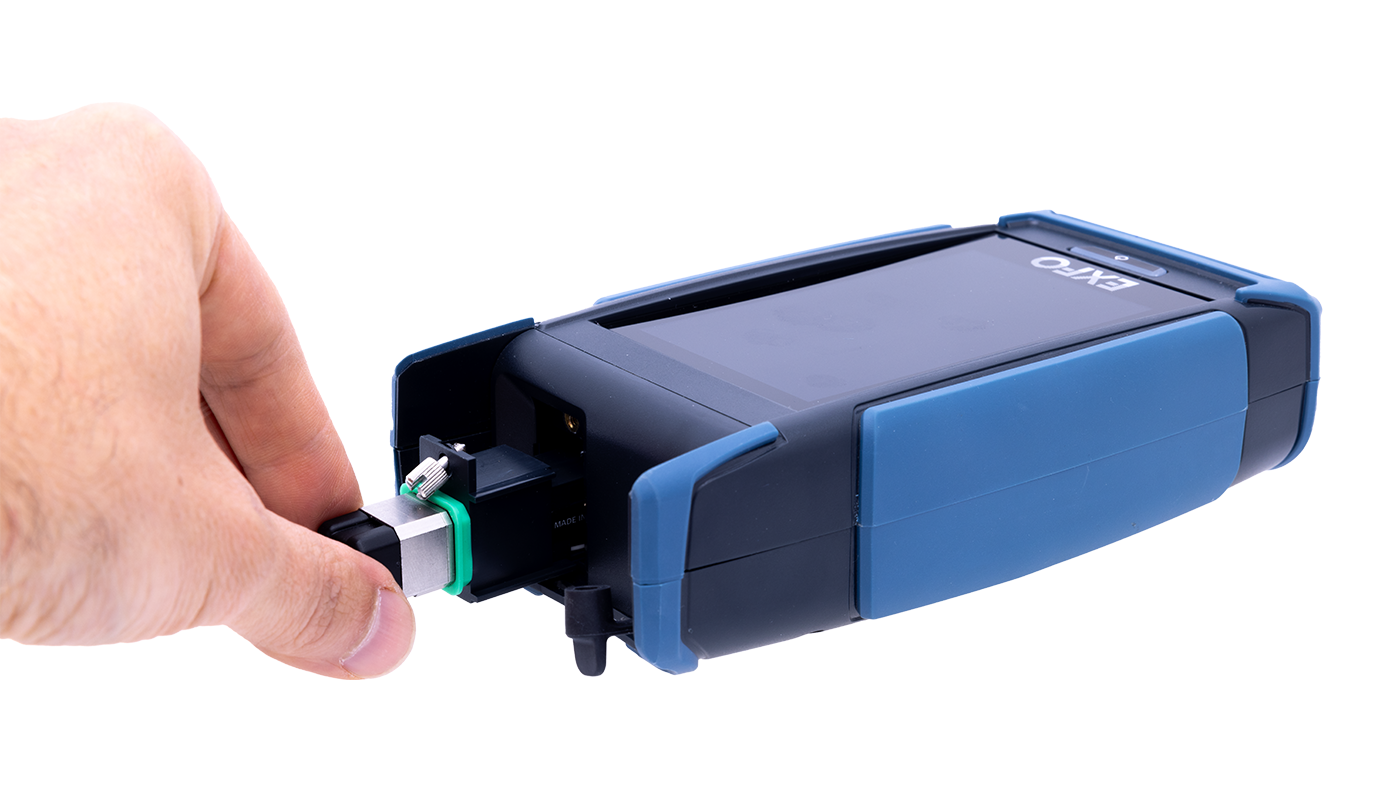

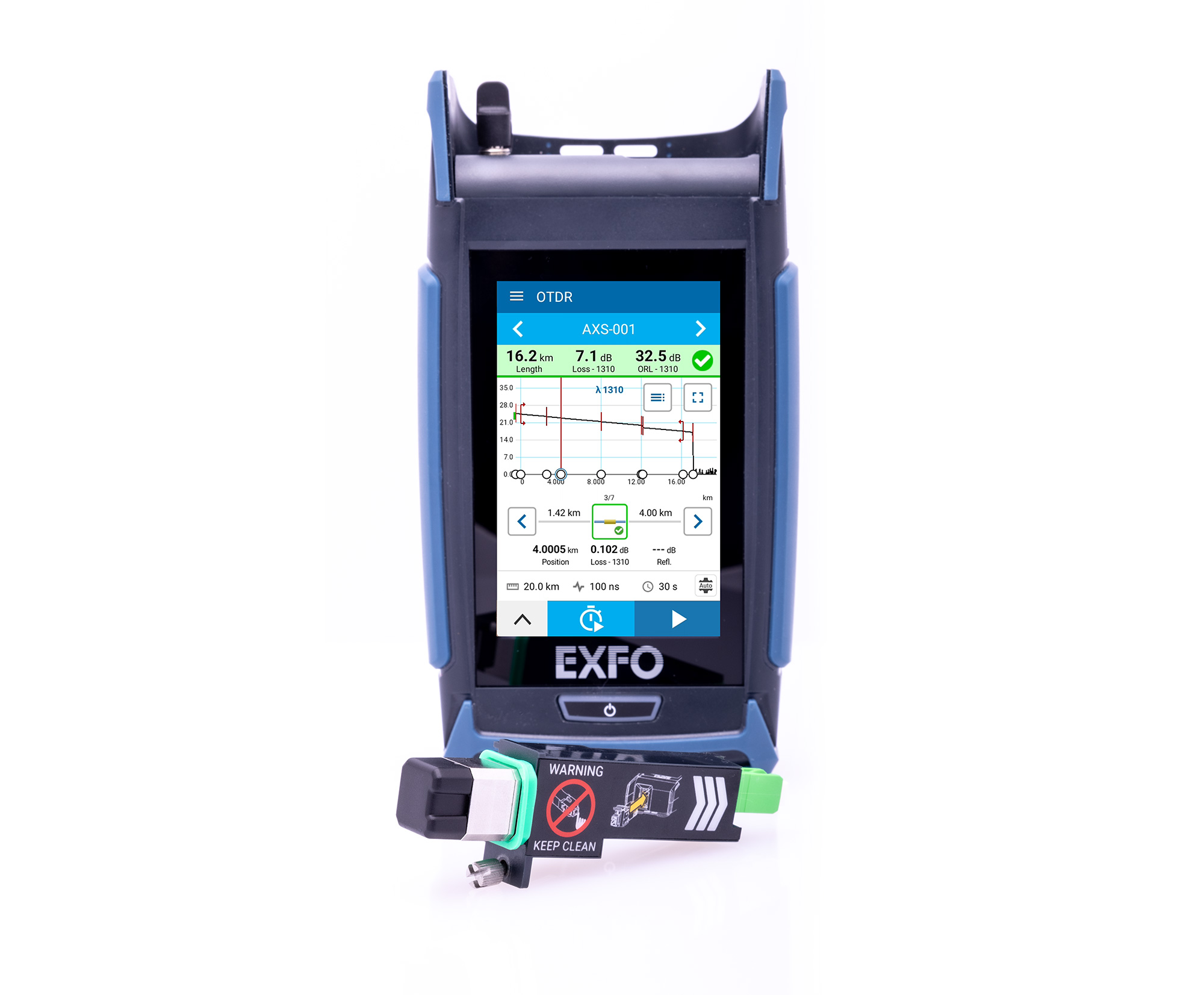

Swap-Out connector
This compact OTDR series comes with a patented Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center. This ensures optimal performance over time, without undue maintenance costs and downtime. The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.
Your calibration date remains valid, even after swapping the connector. No need to calibrate your unit sooner than planned.
Share test results. Boost compliance. Unlock insights.
Cloud-hosted solution for sharing test results and ensuring compliance.
Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.
Key benefits:
Automate test results management.
Boost compliance and efficiency.
Improve collaboration and visibility.
Access comprehensive reporting.
Unlock insights to see what matters.
