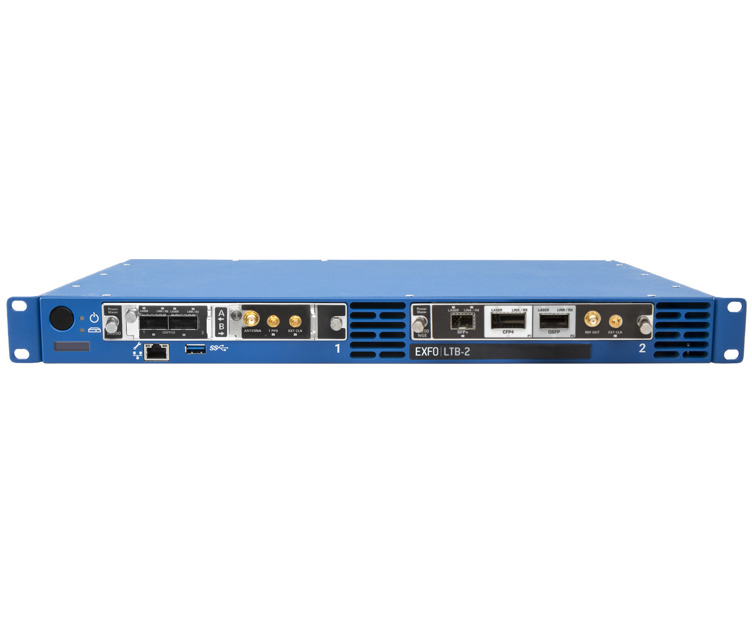

LTB-2 - rackmount modular mainframe

规格书
规格书
概述
The LTB-2 is a powerful, scalable, two-slot modular rackmount platform designed for multiservice testing at central office environments and labs
LTB-2 - rackmount modular mainframe

主要优点

  • Flexible, scalable and modular: Compact 1U modular solution with in-rack or tabletop applications. Features datacom and transport protocol testing and simultaneous testing of up to four times 100G
  • Hot swappable: Intelligent module hot-swap capability, enabling a quick transition from platform to platform, or from rackmount platform to portable platform without powering down
  • Industrial-grade computer design: Simple, easy-to-use design powered by a quad-core processor with the Microsoft Windows operating system
  • Out-of-band management: Optimal remote access for maintenance or initial setup using Intel® Active Management Technology (AMT)
  • Connectivity: USB 3.0, LAN, Sync and AMT port for maximum connectivity options
  • Accessibility: Remote access capability via VNC or Remote Desktop. Third-party tools can be easily installed for a versatile range of applications

应用

  • Multiservice testing in labs
  • Central office re-architected as a data center (CORD)
  • Headend Re-architected as a data center (HERD)
  • Data center interconnect (DCI)

规格

Technical specifications
Mainframe Quad-core Intel processor / 16 GB RAM / Windows 10
Interfaces 3 x RJ45 LAN 10/100/1000 Mbit/s
6 x USB 3.0 port
Storage 256 GB SSD
Power supply Dual −48 V input, 10 A
a. All specifications valid at room temperature.
b. Size and weight inclusive of rackmount brackets.
General specifications
Size (H x W x D)(b) 44 mm × 482 mm × 262 mm (1 3/4 in x 19 in x 10 5/16 in)
Weight(b) 4.9 kg (11 lb)
Temperature Operating: −5 °C to 40 °C (23 °F to 104 °F)
Storage: −40 °C to 70 °C (−40 °F to 158 °F)
Relative humidity 0 % to 95 % non-condensing
a. All specifications valid at room temperature.
b. Size and weight inclusive of rackmount brackets.
