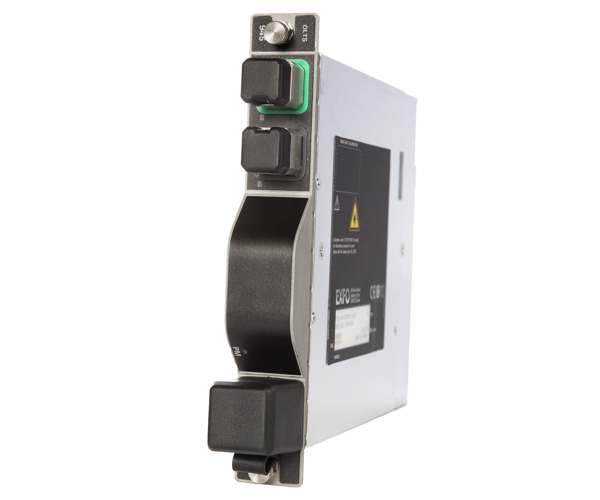

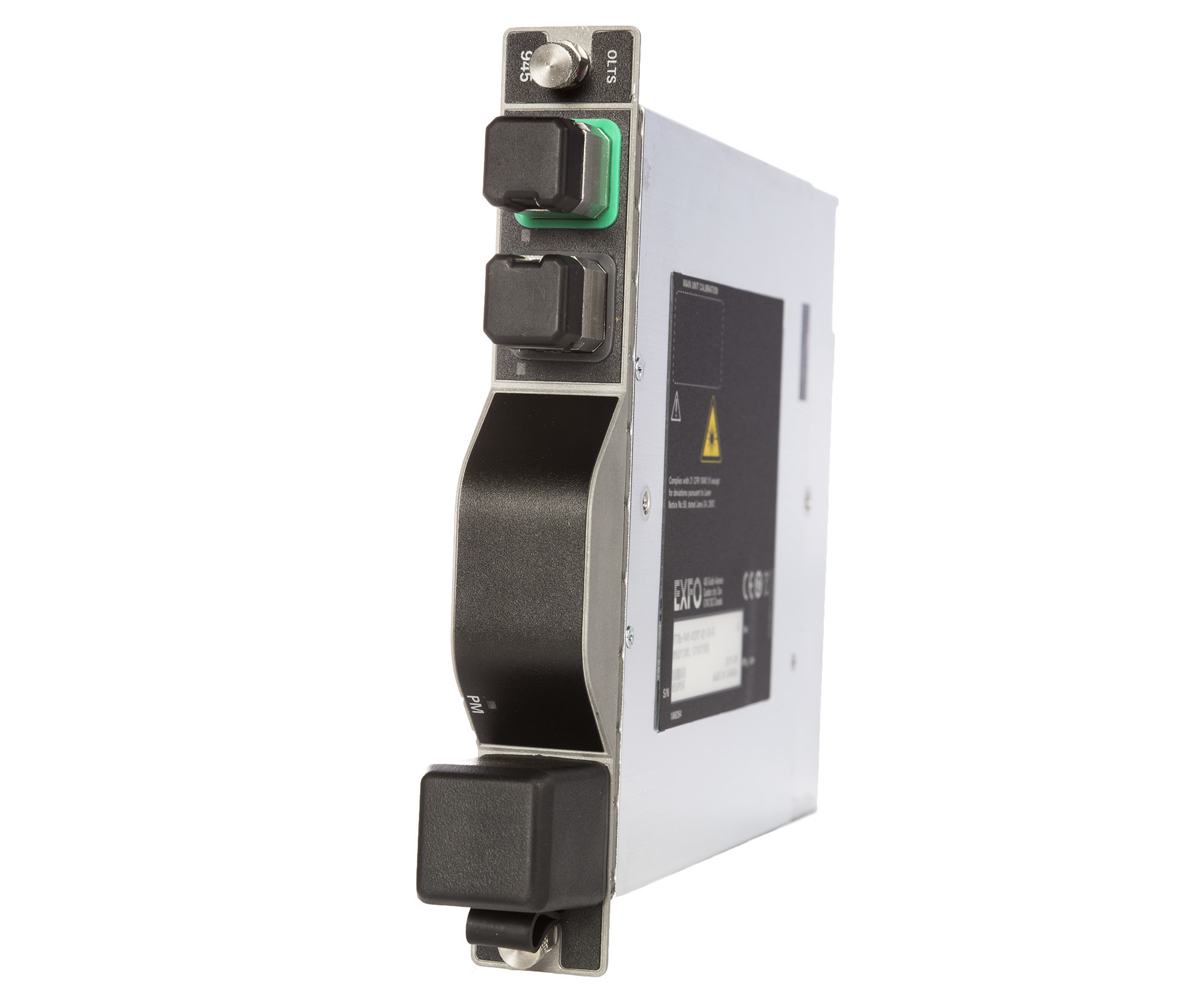

FTBx-945 Fiber Certifier OLTS

概述

模块化OLTS，兼容FTB-2平台，适用于数据中心和企业网Tier-1光纤验证。

主要优点

Certify two fibers at two wavelengths in less than 3 seconds with FasTesT™
On-board assistant and diagnosis to reduce the risk of reference errors and negative loss
Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC
100% automated fiber inspection: one-step process with pass/fail analysis at both ends
Certifies to multiple industry standards simultaneously
On-board professional PDF reporting

Certify two fibers at two wavelengths in less than 3 seconds with FasTesT™

On-board assistant and diagnosis to reduce the risk of reference errors and negative loss

Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC

100% automated fiber inspection: one-step process with pass/fail analysis at both ends

Certifies to multiple industry standards simultaneously

On-board professional PDF reporting

Data centers

Enterprise structured cabling



	850 / 1270 / 1290 / 1300 / 1310 / 1330 / 1350 / 1370 / 1383 / 1390 / 1410 / 1430 / 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 / 1610 / 1625 / 1650
	Module
兼容产品	FTB-1v2 Pro / FTB-2-PRO / FTB-4-PRO
Automation	Automated (FasTesT™)
Fiber Connector Type	ST / SC / LC / E2000
Fiber Type	Singlemode / Multimode
Measurement Type	Link loss / Optical return loss (ORL)
Multiple wavelength measuring
Recalibration Month Interval	36
Tone Detection
Visual Fault Locator (VFL)

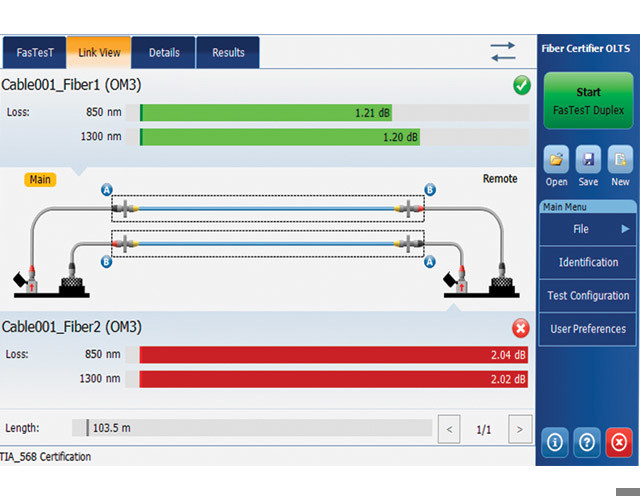

FTBx-940/945光纤验证测试仪设计用于鉴定大量的数据中心光纤链路。要降低成本并优化验证时间，技术人员需要尽可能提高工作速度和准确度。类似于Windows的直观用户界面、基于图标的功能以及自带的帮助功能确保所需的学习曲线最短并迅速记录测量结果。

功能全面的Tier-1光纤验证测试仪，兼容FTB-2模块化平台。可将FTBx-940/945和EXFO的OTDR/iOLM结合起来，构成一体化Tier-1和Tier-2以太网测试设备，也可以将它和任何其它EXFO FTBx模块结合起来，成为非常灵活的测试解决方案。
