主要优点

无差错且省时的测试功能：自动波长识别，无需偏移归零

轻松的数据管理，可通过USB连接将数据传输到PC

自动波长切换功能，用于多波长测试

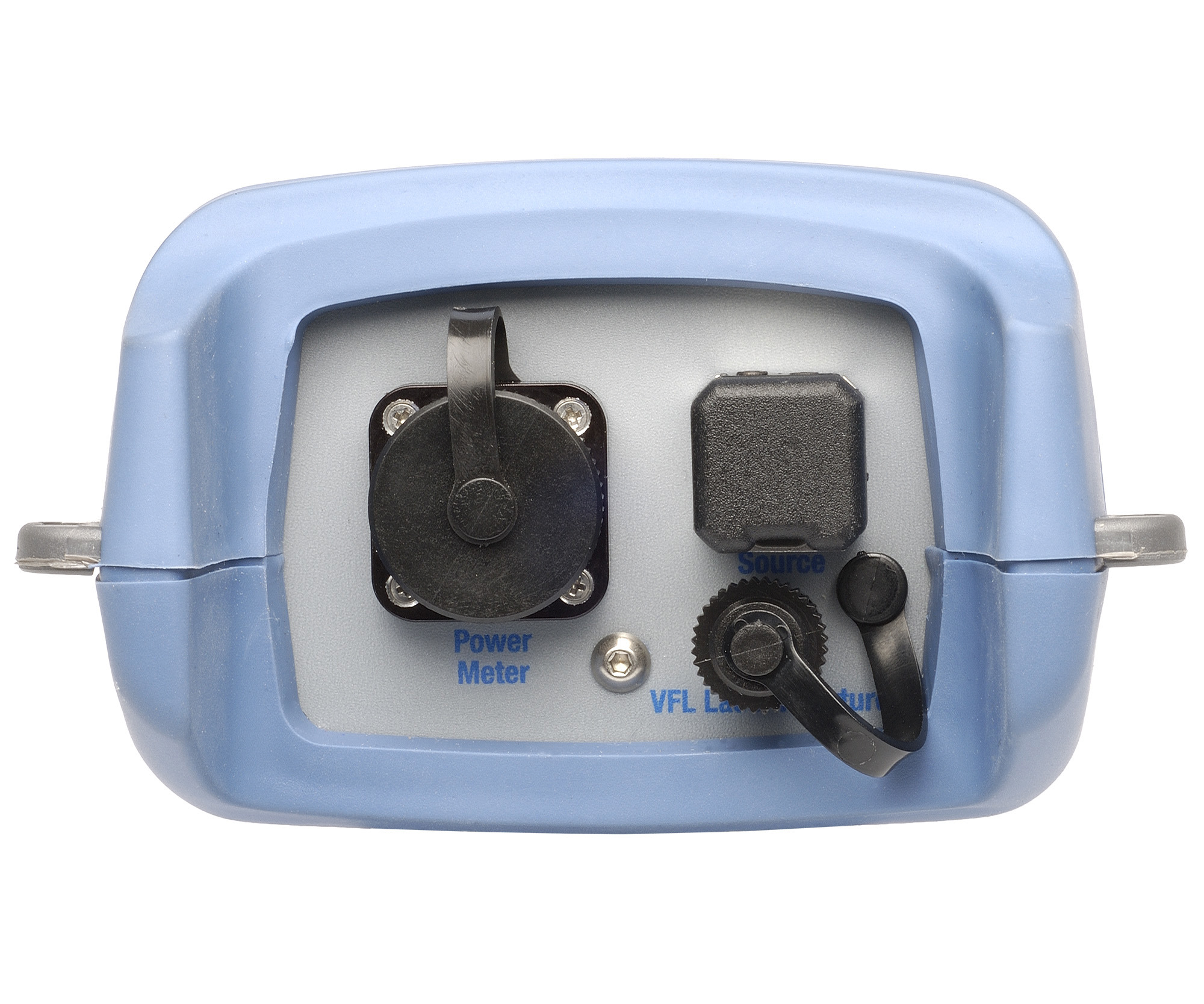

标准的可视故障定位仪（VFL），用于快速、轻松的故障诊断

应用

链路损耗鉴定

网络验证

规格

技术规格
类型测试	Loss / Optical power
Automation	Yes
Calibrated wavelengths	800 / 820 / 830 / 840 / 850 / 860 / 870 / 880 / 910 / 980 / 1270 / 1280 / 1290 / 1300 / 1310 / 1320 / 1330 / 1340 / 1370 / 1390 / 1450 / 1460 / 1470 / 1480 / 1490 / 1500 / 1510 / 1520 / 1530 / 1540 / 1550 / 1560 / 1570 / 1580 / 1590 / 1600 / 1610 / 1620 / 1630 / 1640 / 1650 / 1060
Fiber Connector Type	ST / SC / LC / E2000 / FC / DIN
Fiber Type	Singlemode
Measurement Type	Link loss
Multiple wavelength measuring
Product type	Handheld
Tone Detection
Visual Fault Locator (VFL)

规格书

描述

Ideal for Network-Link Qualification

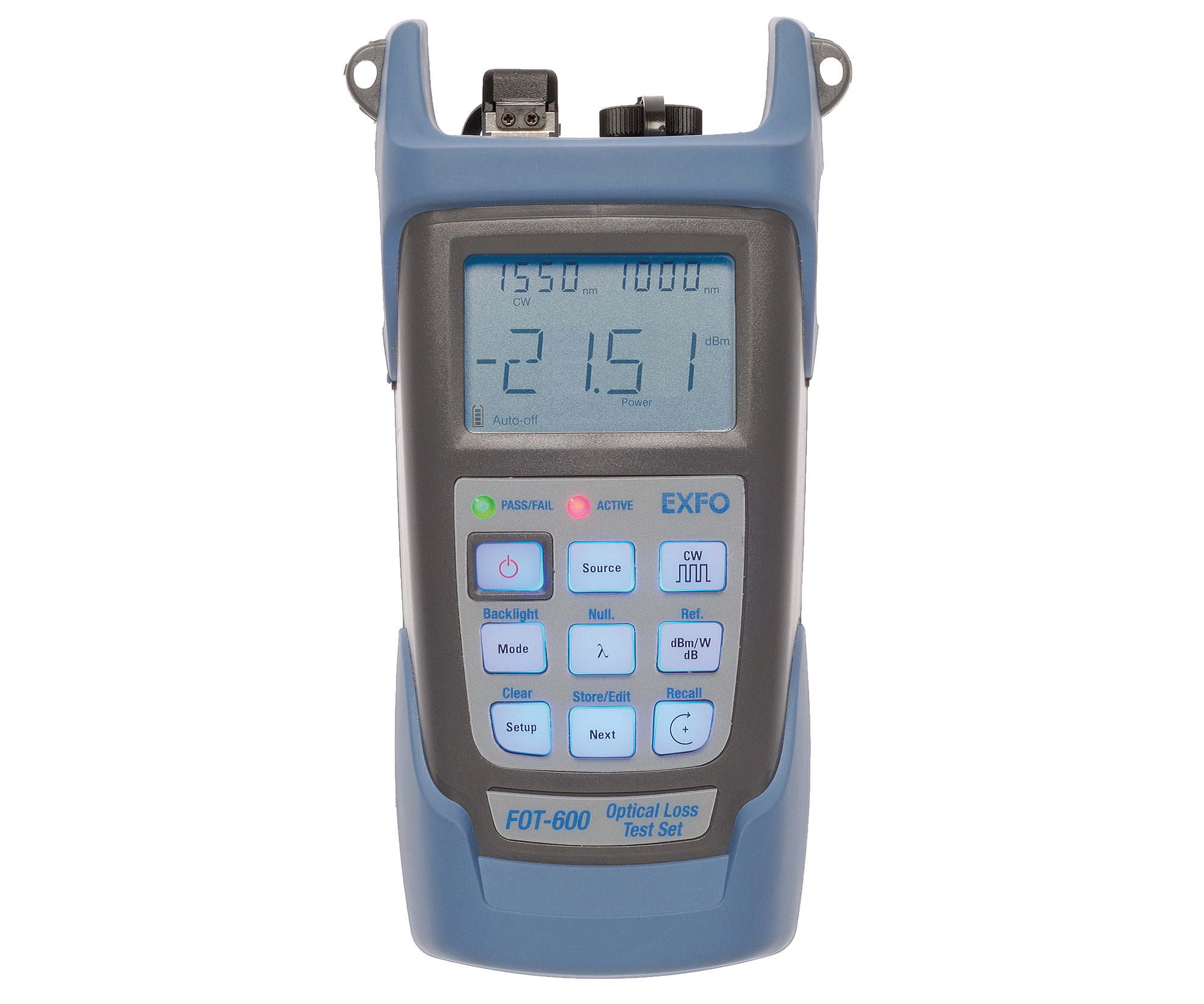

Designed for first-class ease of use, the FOT-600 features a pass/fail LED indicator; what’s more, it lets you set your own thresholds for absolute or relative loss measurements.

Thanks to its memory capacity of 1000 data items and its built-in reporting software, the FOT-600 facilitates data management and enables data transfer to a PC via USB connection. Create and customize a complete test report, including certification of the link with pass/fail information.

Error-Free Test Features in a Highly Versatile Unit

When using the FOT-600 in Auto-Switching mode, the light source automatically toggles between available wavelengths. The power meter recognizes the wavelength in use and switches to the proper calibration parameter. With a press of a button, you can store results for all wavelengths at once, providing easy and error-free testing.

Thanks to its unique design, the FOT-600 Optical Loss Test Set reduces risk of error and measurement time in typical measurement situations, as the need for an offset nulling is eliminated.

In addition to network-link qualification features, the highly accurate FOT-600 offers over 40 calibrated wavelengths, including all CWDM wavelengths. What’s more, it lets you measure power fluctuations with its Hold Min/Max Power function.

FTTx Ready

EXFO’s FOT-600 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.

Rugged and Versatile

Like all EXFO portable instruments, the FOT-600 is built for top ruggedness and versatility, perfect for the harshest test conditions.

It features a keypad/LCD backlight, for easy operation in darker environments. What’s more, it is powered by a rechargeable battery.

Reporting Software

This new software tool enables you to produce professional-looking reports with comprehensive documentation. It also offers these functionalities:

Two test files can be merged into one test report
Pass/fail thresholds that are active during download are automatically activated and displayed in the Report Viewer
One-touch storage of results for all wavelengths at once
Unit B configuration information can be input and documented
Data transfer can be launched from the Report Viewer window
A pass/fail threshold can be set for an individual fiber or wavelength
