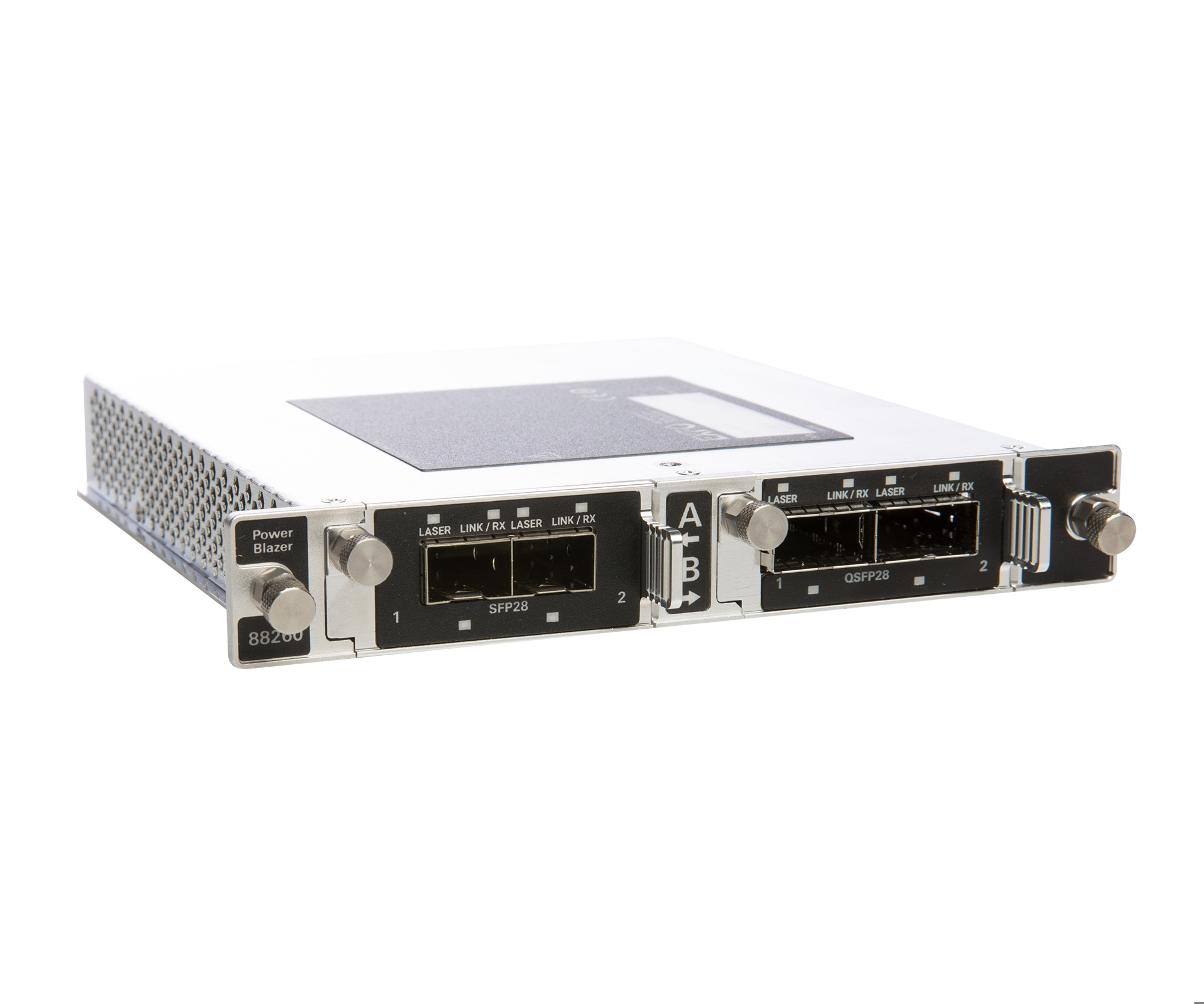

100G模块，支持25G和50G以太网测试 | FTBx-88260

主要优点

采用EXFO的OTS（Open Transceiver System）：创新、革命性的设计，使任何收发器（现有或未来）都能够安装到EXFO的测试解决方案中

OTS支持多种接口：双SFP28接口、双QSFP28接口和单CFP4接口

提供速率直至50G的双端口以太网测试功能，包括一套完整的测试套件

提供iOptics测试应用程序，只需进行很少的配置便可迅速验证光设备的运行是否正常

兼容EXFO的LTB-8机架式平台，支持热插拔功能，便于在实验室内使用

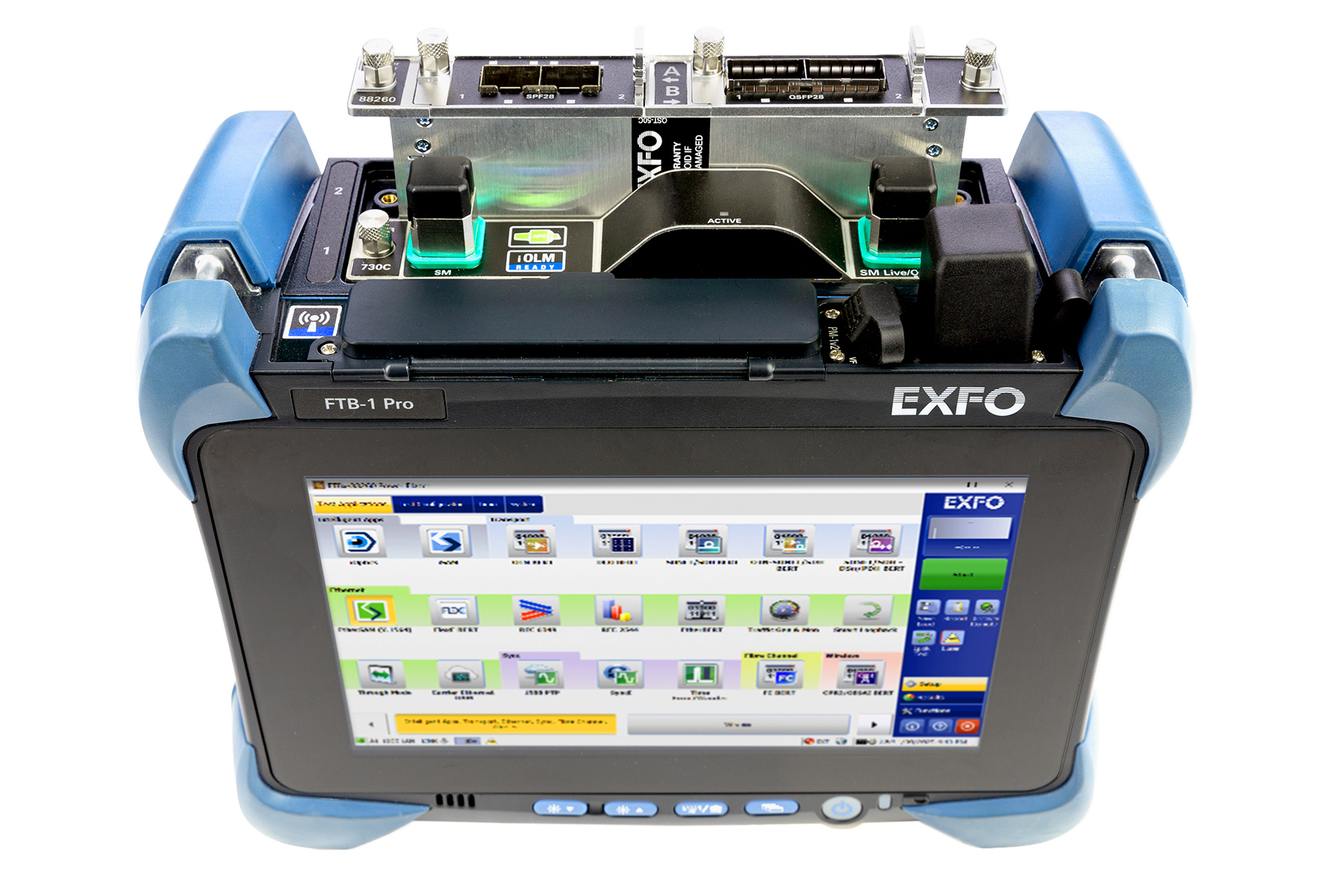

兼容FTB-2 Pro平台，能够同时运行两个模块，最多支持4个25 GigE端口

兼容FTB-4 Pro平台，能够同时运行四个模块，最多支持8个25 GigE端口

可结合FTBx-88200NGE模块，构成支持10M至100G测试的解决方案

支持EXFO Multilink，这是一款基于Web的应用程序，便于多用户管理和远程访问

应用

Ethernet/IP network testing and troubleshooting up to 100G

5G transport network validation (fronthaul, midhaul, backhaul)

Data centers

规格

技术规格
类型测试	Ethernet / Fibre channel / Transport / Wireless
EXFO 交换兼容性
OTS support	QSFP28 / QSFP-DD
Product type	Module
Supported data rates	1G to 800G

规格书

描述

Rapid evolution in transceiver technology

Whether motivated by cost, power requirements, space or increased demand for bandwidth, pluggable transceivers are evolving rapidly. Predicting how long an existing transceiver will be required before another comes along to take its place is tough—making the obsolescence of today’s hardware simply a waiting game.

Another challenge is that network operators and data centers still need to support existing technologies, but also be ready to address new rates and technologies without always doing forklift upgrades. Whether we consider SFP and SFP+ (for rates up to 10G) or QSFP28 and CFP4 (for 100G) or SFP28 (for 25G rates), it’s clear that integrating all these into a network—as well as testing and validating them—is a huge task. The smart move is to allocate budget for versatile—not limited—solutions.

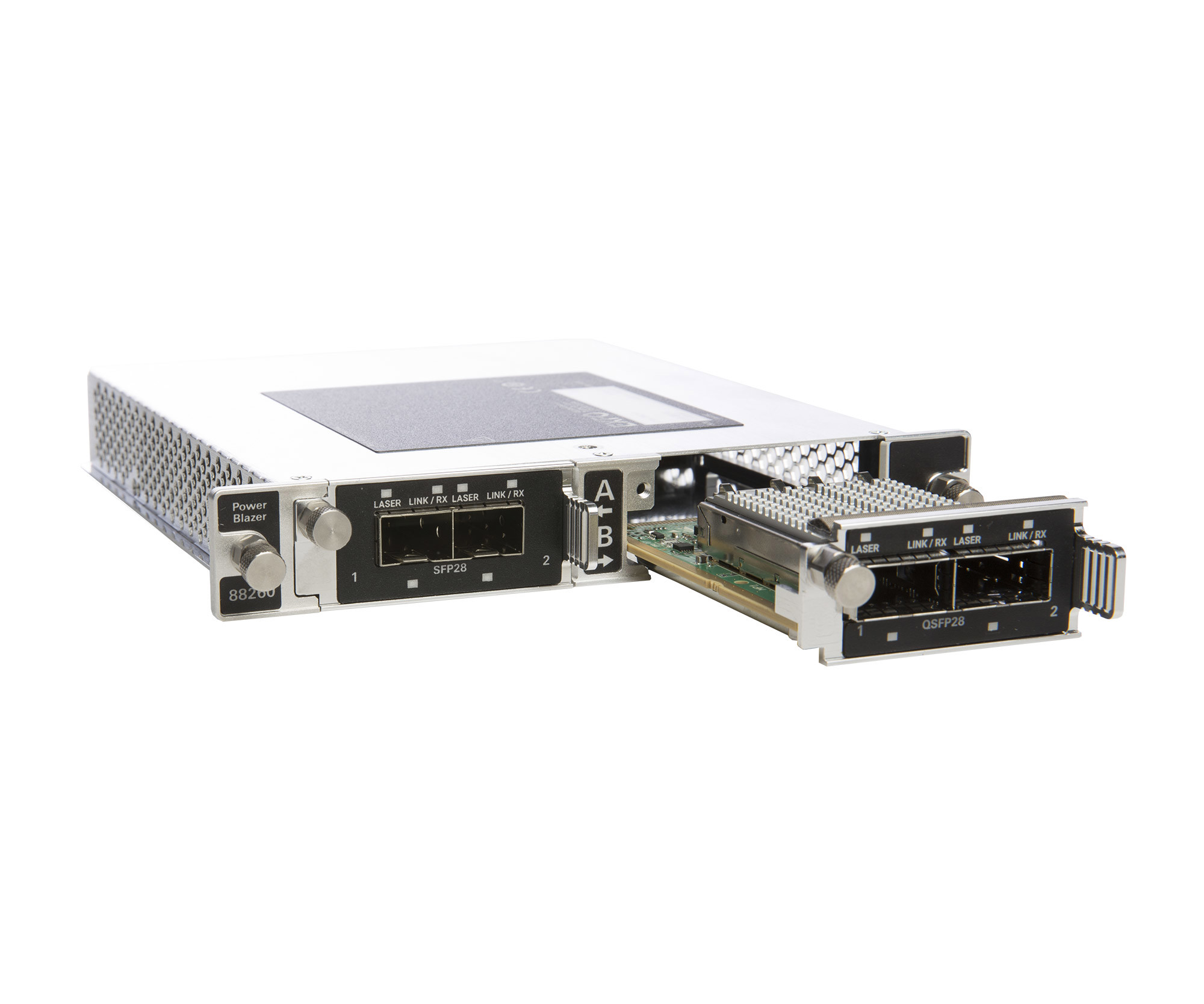

EXFO’s Open Transceiver System (OTS)

Introducing a new concept for the latest Power Blazer modules: EXFO’s Open Transceiver System (OTS). The OTS is an innovative, evolutionary design enabling any transceiver (now or future) to fit into an EXFO test solution. Benefits include:

Experience ultimate flexibility—swap out OTS modules right in the field, lab or on the production floor, choosing only the ones needed for whichever applications, rates or technologies under test.
Save tens of thousands of dollars by eliminating the necessity to completely replace an expensive testing module. Instead, change a less costly OTS module and extend the life of testing equipment.
Support multiple transceiver types simultaneously with a future-proof architecture designed to handle both current and upcoming high-speed transceiver technologies as they are developed and launched.

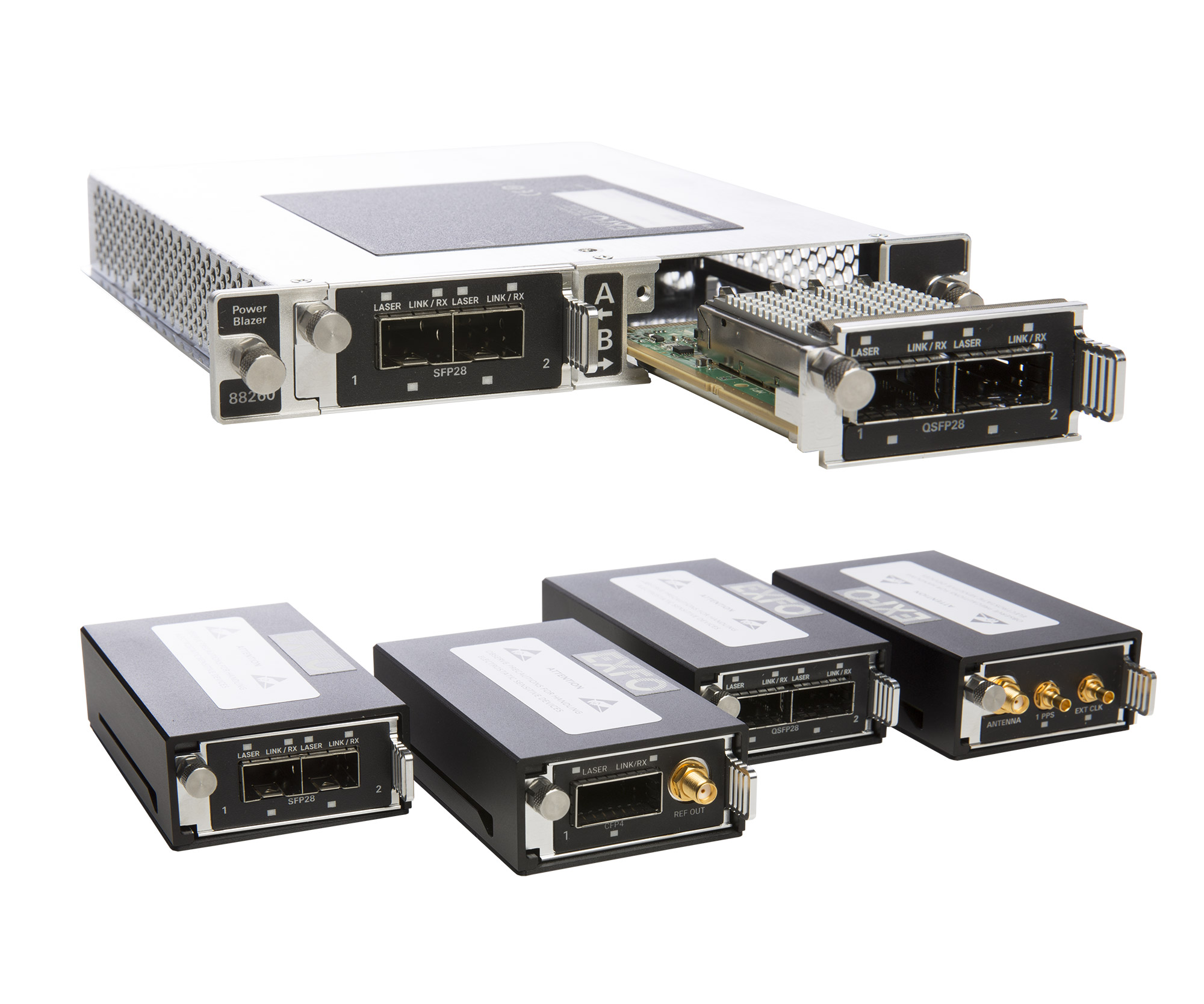

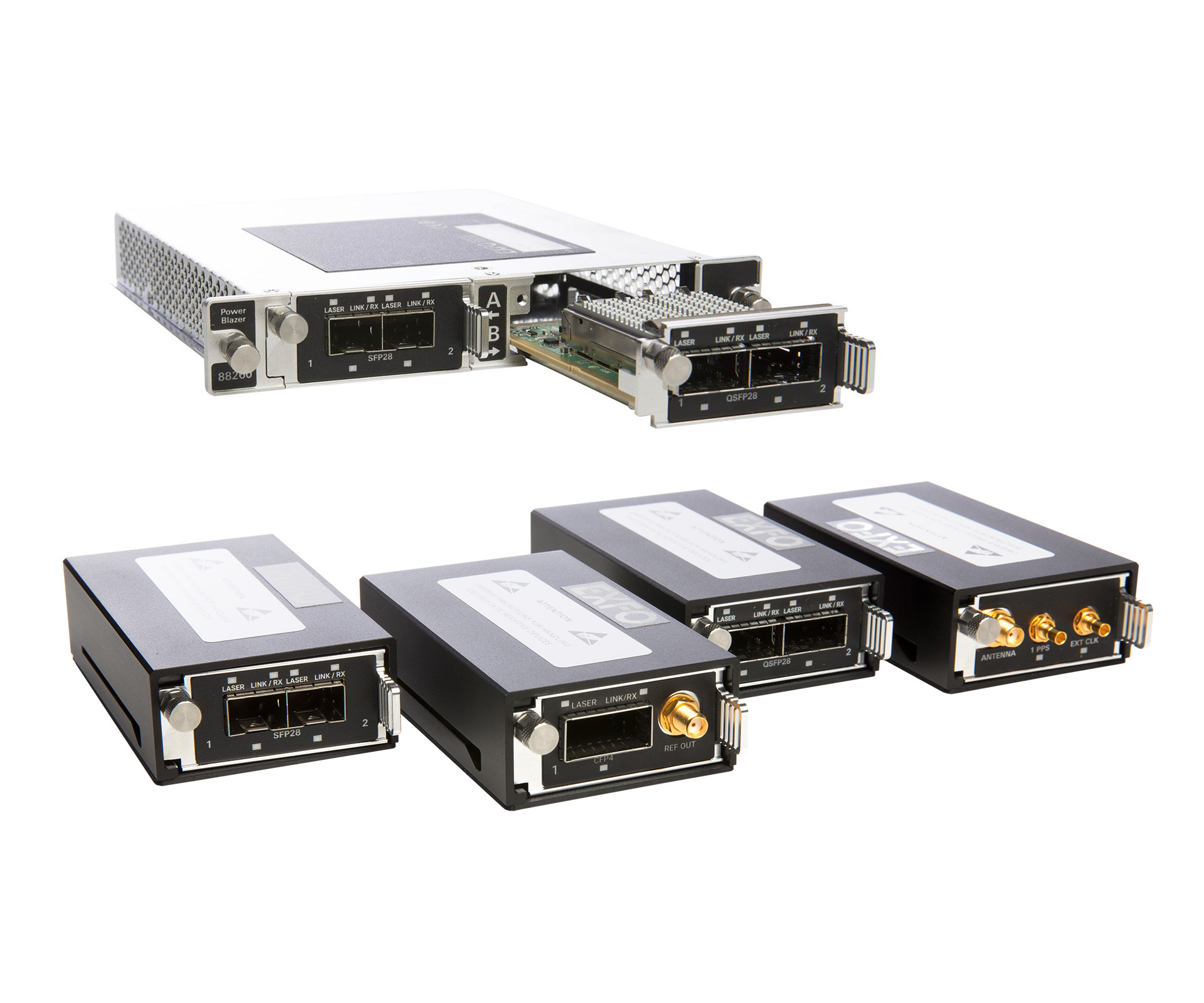

Support for multiple transceiver types

Dual SFP28

10G / 25G / FC32x data rates
Ethernet Dual Port testing (EBERT, RFC2544, ESAM, TGEN), OTN, SONET/SDH, FC testing
The dual port can be shared with another OTS module, one port from each OTS module

Dual QSFP28

40G/100G data rates
Framed Ethernet Dual Port testing (EBERT, RFC2544, ESAM, TGEN), OTN testing
The dual port can be shared with another OTS module, one port from each OTS module

Single CFP4

100G data rate
Ethernet Dual Port testing (EBERT, RFC2544, ESAM, TGEN), OTN testing
The dual port can be shared with another OTS module, one port from each OTS module

Sync
