LTB-12 - rackmount modular mainframe

Spec sheet
Spec sheet
Overview
Bring power to your lab with a powerful, scalable and hot-swappable twelve-slot rackmount or benchtop platform designed for advanced lab and manufacturing photonic applications.

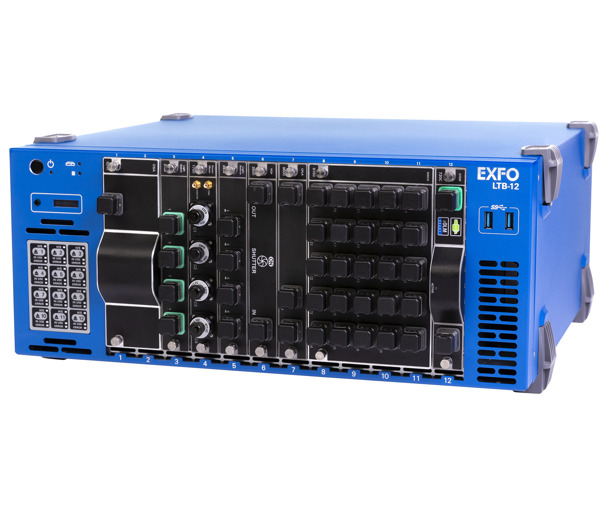

LTB-12 - rackmount modular mainframe

Key features

  • Compact 4U solution with high port module density for in-rack and tabletop applications
  • Hot-swap capability for quick transitions between both rackmount and portable platforms
  • RAID1 mirroring for redundancy and data protection
  • Simple, easy-to-use industrial grade computer design with the Microsoft Windows operating system
  • Out-of-band management: optimal remote access for maintenance or initial setup using Intel® Active Management Technology (AMT)
  • Powerful and flexible enough to run automation software and scripts without an external personal computer

Applications

  • Active and passive component testing
  • Transceiver manufacturing
  • WSS and ROADM calibration and tests
  • Sensing and spectroscopy
  • Spectral characterization
  • System verification and design
  • Manufacturing/Industry 4.0
  • PIC wafer-level testing

Specifications

Technical specifications
Mainframe Quad-core Intel processor / 8 GB RAM / Windows 10 IoT Enterprise LTSC 2019
Interfaces RJ45 LAN 10/100/1000 Mbit/s ports (2)
USB 3.0 ports (6)
HDMI and VGA video ports
Headset and microphone ports
Storage 128 GB SSD
Power supply AC input: 100 V – 240 V ; 50/60 Hz; 10 – 4.2 A
a. All specifications valid at room temperature.
b. Size only includes feet and not rackmount bracket. Rackmount configuration will fit inside 4U, 19-inch bay.
General specifications
Size (H x W x D)(b) 199 mm × 459 mm × 436 mm (7 13/16 in x 18 1/16 in x 17 3/16 in)
Weight 16 kg (36 lb)
Temperature Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity 0 % to 80 % non-condensing
a. All specifications valid at room temperature.
b. Size only includes feet and not rackmount bracket. Rackmount configuration will fit inside 4U, 19-inch bay.
