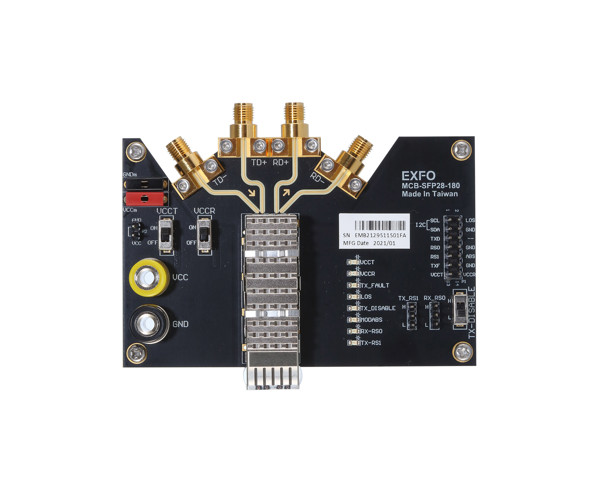

MCB - MCB to test next-gen transceivers

Download spec sheet
Download spec sheet
Overview
The module compliance board (MCB) enables the serial communication between the bit error rate (BER) tester and the optical transceiver.
MCB - MCB to test next-gen transceivers

Key features

  • MSA supported: QSFP-DD, OSFP, QSFP28, SFP28, SFP-DD and DSFP
  • Pin for standard MSA
  • Supports 90-degree 2.92 mm RF connectors or 1x8 multi-coaxial O-SMPM RF connectors
  • DDMI connection (I2C)
  • Switch control (VCCT/ VCCR/VCC1/LPMode/ ResetL/ MODSEIL)
  • LED monitor (VCCT/VCCR/VCC1/ModPrsL/InitMod/ResetL/ MODSEIL/IntL)

Applications

  • Test and validation of transceivers and cables

Specifications

Technical specifications
Key features
MSA supportedQSFP-DD, OSFP, QSFP28, SFP28, SFP-DD and DSFP
Pin for standardMSA
RF connectors supported90 degree 2.92 mm RF connectors or 1x8 multi-coaxial O-SMPM RF connectors
DDMI connectionI2C
Switch controlVccT/ VccR/Vcc1/LPMode/ResetL/MODSEIL
LED monitorVccT/VccR/Vcc1/ModPrsL/InitMod/ResetL/MODSEIL/IntL
Vcc inputs3 types Vcc inputs (header pin/power jack/banana)
Specifications
MCB modelQSFPDD-O
Form factorQSFP-DD
RF connector1x8 O-SMPM
MCB modelQSFPDD-K
Form factorQSFP-DD
RF connectorK (2.92 mm)
MCB modelOSFP-O
Form factorOSFP
RF connector1x8 O-SMPM
MCB modelOSPF-K
Form factorOSFP
RF connectorK (2.92 mm)
MCB modelQSFP56-O
Form factorQSFP56 and QSFP28
RF connector1x8 O-SMPM
MCB modelQSFP28-K
Form factorQSFP28
RF connectorK (2.92 mm)
MCB modelSFPDD
Form factorSFP-DD
RF connectorK (2.92 mm)
MCB modelDSFP
Form factorDSFP
RF connectorK (2.92 mm)
MCB modelSFP28-90
Form factorSFP28
RF connector90o K (2.92 mm)

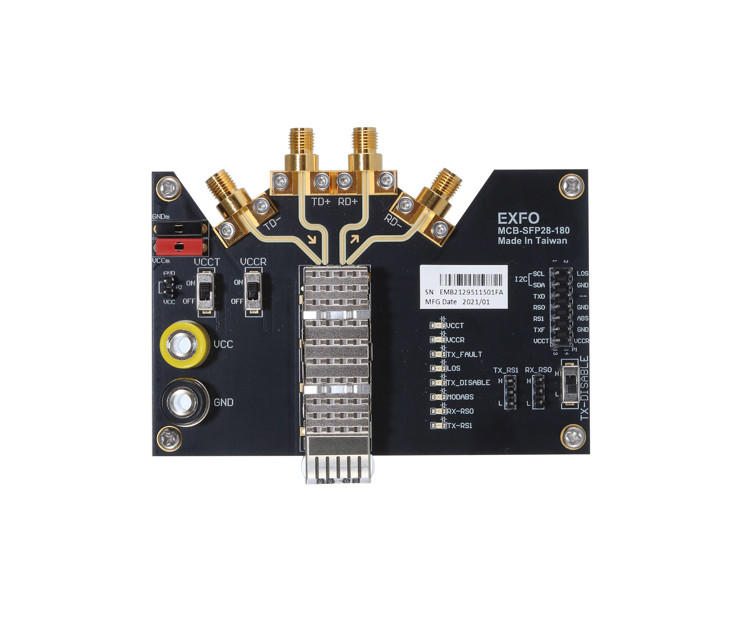

MCB modelSFP28-180
Form factorSFP28
RF connector180o K (2.92 mm)
General specifications
DocumentSPEC SHEET
DescriptionThe module compliance board (MCB) enables serial communication between the bit error rate (BER) tester and the optical transceiver.
EXFO headquartersT +1 418 683-0211
Toll-free +1 800 663-3936 (USA and Canada)
CertificationsEXFO is certified ISO 9001 and attests to the quality of these products.
Units of measurementUnits of measurement in this document conform to SI standards and practices.
WEEEAll of EXFO’s manufactured products are compliant with the European Union’s WEEE directive.
Prices and availabilityContact EXFO for prices and availability or to obtain the phone number of your local EXFO distributor.
Most recent versionFor the most recent version of this spec sheet, please go to www.EXFO.com/specs.
In case of discrepancy, the web version takes precedence over any printed literature.
ReferenceSPMODULECOMPLIANCEBOARD.3AN
Copyright© 2021 EXFO Inc. All rights reserved. Printed in Canada 21/04
