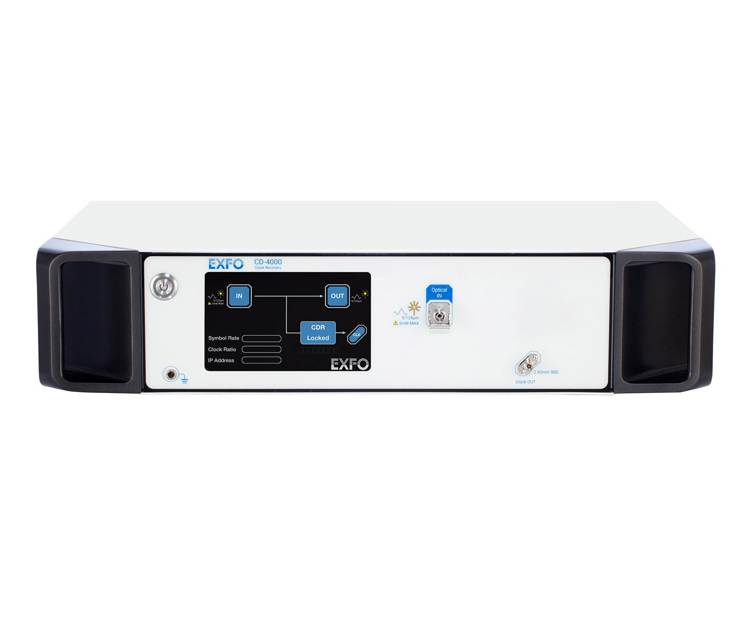

| OPTICAL SPECIFICATIONS | |
| Optical singlemode CDR / Optical multimode CDR | |
| Modulation | NRZ and PAM4 (singlemode and multimode) |
| Symbol rate (GBd) | 25, 25.78125, 26.5625, 28.05, 28.125, 28.9, 53.125, 57.8 (singlemode and multimode) |
| Wavelength (nm) | Singlemode: 1250 - 1650; 1260 - 1650 (with built-in splitter). Multimode: 850 - 1350. |
| Return loss (dB) | Singlemode: –30 (at 1310/1550 nm). Multimode: –30 (at 850 nm). |
| Input sensitivity (dBm) | Singlemode: –5 (at 1310/1550 nm). Multimode: –5 (at 850 nm). |
| Damage power | 5 mW (singlemode), 5 mW (multimode) |
| Connector type | Singlemode: FC/PC (9/125 µm). Multimode: FC/PC (50/125 µm). |
| Loop bandwidth (MHz) | 20 (singlemode and multimode) |
| Clock output ratio | /8 for 53.125 GBd to 57.8 GBd; /4 for 25 GBd to 28.9 GBd (singlemode and multimode) |
| Recovered clock random jitter (fs) | < 290 (0 dBm, PRBS16Q at 53 GBd) (singlemode and multimode) |
| Clock output amplitude (mV) | 400 (singlemode and multimode) |
| ELECTRICAL SPECIFICATIONS | |
| Modulation | NRZ and PAM4 |
| Symbol rate (GBd) | 25, 25.78125, 26.5625, 28.05, 28.125, 28.9, 53.125, 57.8 |
| Bandwidth (GHz) | 25.6 - 31.9 |
| Return loss (dB) | –30 |
| Input amplitude (mVppd) | 350 - 550 |
| Connector type | 2.92 mm (K) |
| Loop bandwidth (MHz) | 20 |
| Clock output ratio | /8 for 53.125 GBd to 57.8 GBd; /4 for 25 GBd to 28.9 GBd |
| Recovered clock random jitter (fs) | <50 |
| OPTICAL SPECIFICATIONS – 10G CDR | |
| Modulation | NRZ |
| Symbol rate | 155 Mbit/s to 11.3 Gbit/s |
| Wavelength (nm) | 1260 - 1610 |
| Input sensitivity (dBm) | –12 |
| Damage power (dBm) | 5 |
| Optical split ratio (nominal) | 70 (output) / 30 (CDR) |
| Connector type | FC/PC (9/125 µm) |
| Clock output ratio | /8 |
| Clock output amplitude (mV) | 540 |
| All specifications are typical at 23 °C ± 2 °C unless otherwise specified. | |
| GENERAL SPECIFICATIONS | |
| Size (H x W x D) | 103 mm x 442 mm x 300 mm (4.1 in x 17.4 in x 11.8 in) |
| Weight | ≤10 kg (22 lb) |
| Temperature (operating) | 5 °C to 40 °C (41 °F to 104 °F) |
| Temperature (storage) | –20 °C to 70 °C (–4 °F to 158 °F) |
| Relative humidity | 20% to 80% |
| Power (a) | 100/120 Vac (50/60/400 Hz); 220/240 Vac (50/60 Hz); 60 W typical/80 W max. |
| Access interface | Gigabit Ethernet (RJ45 port) |
| GENERAL SPECIFICATIONS – 10G CDR | |
| Size (H x W x D) | 51 mm x 125 mm x 172 mm (2.0 in x 4.9 in x 6.8 in) |
| Weight | ≤ 1 kg (2.2 lb) |
| Temperature (operating) | 5 °C to 40 °C (41 °F to 104 °F) |
| Temperature (storage) | –20 °C to 70 °C (–4 °F to 158 °F) |
| Relative humidity | 20% to 80% |
| Power | 100 V to 240 V, 50/60 Hz |
| Access interface | n/a |
| a. Operate with supply voltage fluctuations up to ±10 % of the nominal voltage. | |
