Full specifications

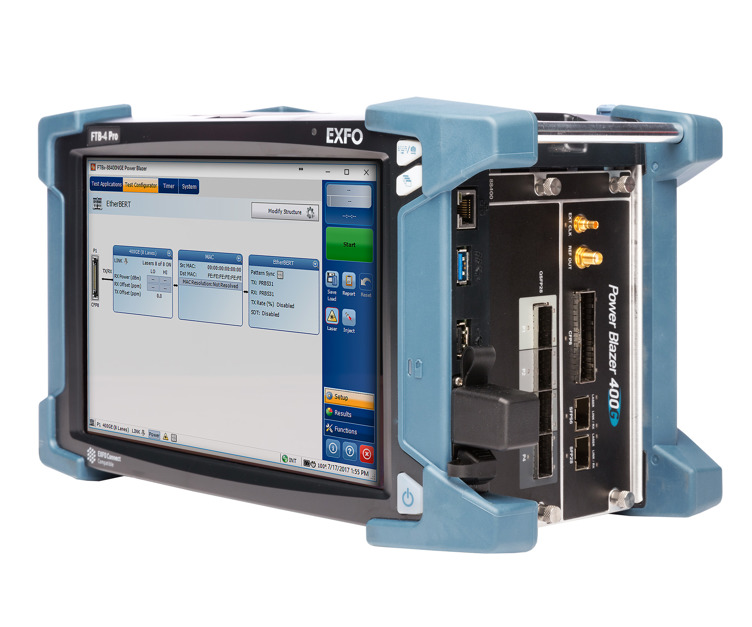

FTBx-88460 - 400G test solution for the field

The most compact multiservice 400G test solution on the market for field applications

Overview

The most compact multiservice 400G test solution on the market for field applications

Key features

400G/200G Ethernet testing capabilities based on IEEE 802.3bs standard
Single module supporting 1G to 400G testing without any additional HW
Offers all test tools needed for 400G testing: KP4 FEC assessment, virtual eye-opening histogram
EXFO’s Open Transceiver System (OTS): innovative, evolutionary design enabling the validation of QSFP-DD, OSFP and CFP8 interfaces
Ready to support coherent ZR and ZR+ transceivers
Supports quick optical transceiver validation and sanity check using iOptics, an intelligent pluggable optics test application

Key features

400G/200G Ethernet testing capabilities based on IEEE 802.3bs standard

Single module supporting 1G to 400G testing without any additional HW

Offers all test tools needed for 400G testing: KP4 FEC assessment, virtual eye-opening histogram

EXFO’s Open Transceiver System (OTS): innovative, evolutionary design enabling the validation of QSFP-DD, OSFP and CFP8 interfaces

Ready to support coherent ZR and ZR+ transceivers

Supports quick optical transceiver validation and sanity check using iOptics, an intelligent pluggable optics test application

Applications

Validation of 200G/400G network elements in Carrier Labs

Transceiver validation

1G to 400G service deployment and QoS assessment (SLA validation

Business Ethernet services, Metro/Core networks validation

Data centers

Technical specifications
REF-OUT interface
Tx pulse amplitude	200 mVpp to 1300 mVpp, depending on frequency
Transmission frequency	155 MHz to 3.50 GHz
Output configuration	AC-coupled
Load impedance	50 Ω
Connector type	SMA
External cable	Maximum 1 meter cable length (RG178 cable with 3.1 dB/m attenuation at 3.5 GHz)

General specifications
Mechanical and environmental specifications
Size (H x W x D)	101 mm x 159 mm x 175 mm (4 in x 6 1/4 in x 6 7/8 in)
Weight	1.70 kg (3.75 lb)^(a)
Temperature — Operating	0 °C to 40 °C (32 °F to 104 °F)
Temperature — Storage	−40 °C to 70 °C (−40 °F to 158 °F)
Laser safety	Module: The host unit that you use with your module may have different laser classes. Refer to the host unit documentation for exact information.
^{a. With filler.}
