FTB-4-PRO - Test platform

Download spec sheet
Download spec sheet
Overview
The most flexible solution to test multiple technologies and high speed networks.

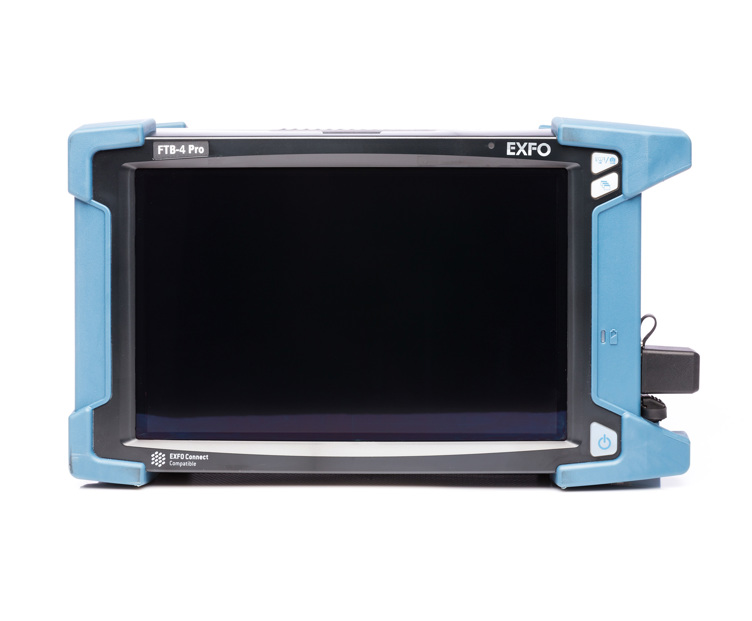

FTB-4-PRO - Test platform

Key features

  • Connects anywhere: USB, WiFi, Bluetooth, mobile and virtual private network (VPN)
  • Loaded with utilities: equipped with all the tools required to maximize field testing
  • Like a PC: quad-core processor with Windows 10 operating system
  • EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

Applications

  • 100G and 400G testing applications
  • 10M-to-100G Ethernet testing
  • FTTH testing
  • Fiber characterization
  • Fibre Channel
  • Gigabit/10 Gigabit Ethernet configurations
  • Multiservice testing
  • Pol-Mux spectral testing
  • ROADM commissioning

Specifications

Technical specifications
MainframeQuad-core processor / 4 GB RAM / Windows 10
DisplayTouchscreen, color, 1280 × 800 TFT 256 mm (10.1 in)
InterfacesRJ45 LAN 10/100/1000 Mbit/s
USB 2.0 ports (2)
USB 3.0 port (1)
Display port
3.5 mm headset/microphone port
Storage (internal flash memory)128 GB
Battery (not included)Two rechargeable Li-ion smart batteries (optional)
Power supplyAC input: 100 – 240 V; 50/60 Hz; 5.2 – 1.9 A
Calibrated wavelengths (nm)850, 1300, 1310, 1490, 1550, 1625, 1650 (d)
Optional CWDM calibrated wavelengths (nm)1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1383, 1625 (d)
Power range (dBm)27 to –50 (d), (e)
Uncertainty (%)±5 % ± 10 nW (d), (e), (f)
Display resolution (dB)0.01 = max to —40 dBm
0.1 = —40 dBm to —50 dBm (d)
Note: All specifications valid at 23 °C (73 °F).

(d) At 23 °C ± 1 °C, 1550 nm and FC connector. With modules in idle mode. Battery-operated after warm-up.

(e) Typical.

(f) At calibration conditions.
General specifications
Size (H x W x D)199 mm × 333 mm × 170 mm (7 13/16 in × 13 1/8 in × 6 11/16 in)
Weight4.6 kg (10 lb) (b)
Temperature Operating0 °C to 40 °C (32 °F to 104 °F)
Storage–40 °C to 60 °C (–40 °F to 140 °F) (c)
(b) Platform without batteries or modules.

(c) Not including internal batteries. Battery storage temperatures: –20 °C to 60 °C (–4 °F to 140 °F) for shipping, and –20 °C to 45 °C (–4 °F to 113 °F) for long-term storage.
