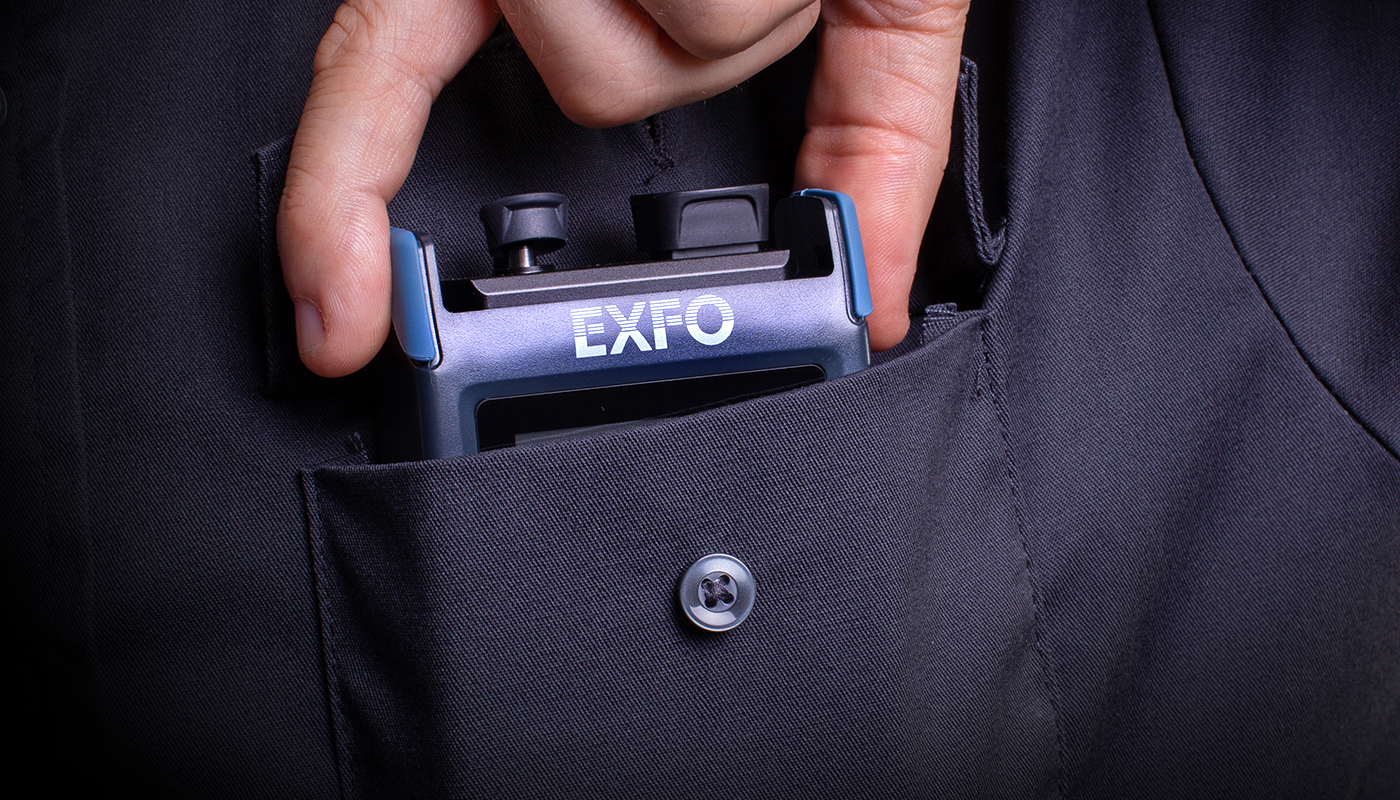

PPM1 - Service activation PON power meter

Overview
Versatile dual-layer tester purpose-built for PON service activation, with added broadband capabilities.

Key features

  • Unique PON-aware™ capability: helps to select the appropriate PON technology under test
  • Supports 1G/10G PON networks: G/EPON and XGS-PON/10G-EPON
  • No training required: color touchscreen with a highly intuitive GUI
  • Robust and rugged: IP54 design for dust and water protection
  • 3-year calibration interval
  • Visual fault locator (PRO model)

Applications

  • Service activation: Multilayer FTTx PON
  • Service activation: GPON, EPON, XGS-PON and 10G EPON
  • Network troubleshooting

Specifications

Technical specifications
Auto-Wavelength Switching Yes
Battery Autonomy 10 h
Exchange compatibility Yes
Fiber Connector Type SC / APC
Fiber Type Singlemode
Recalibration Month Interval 36
Supported Languages Simplified Chinese / Chinese (Traditional) / English / French / German / Spanish / Italian
Tone Detection Yes
Touchscreen Yes (capacitive)
Visual Fault Locator (VFL) Yes
Full specifications

PON-aware technology

The PPM1 leverages a unique patented technology that makes all the difference in the field. The PPM1 automatically detects the PON technology in use and self-adjusts the pass/fail criteria, enabling rapid and error-free testing.

Next-gen PON service activation

A single power meter for 1G and 10G—No training required.

Next-generation passive optical networks (PONs) will, in most cases, leverage existing outdoor plant infrastructure. Adding new services on existing networks translates into overlaying multiple wavelengths on the same physical fiber plant. The PPM1 is compatible with multiple services including GPON, EPON, XGS-PON and 10G-EPON technologies. Its wavelength-selective design allows it to measure up to two downstream signals simultaneously, assessing power level for rapid and reliable service activation.

Share test results. Boost compliance. Unlock insights. 

Cloud-hosted solution for sharing test results and ensuring compliance.

Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.

Key benefits:


icon automate test results managementAutomate test results management.

icon boost compliance efficiencyBoost compliance and efficiency.

icon improve collaboration visibilityImprove collaboration and visibility.

icon access comprehensive reportingAccess comprehensive reporting.

icon unlock insights see what mattersUnlock insights to see what matters.
