Optical Power Expert (PX1) - Connected optical power meter

Overview

Power meter with Bluetooth connectivity, a wide touchscreen and best-in-class optical performances.

Key features

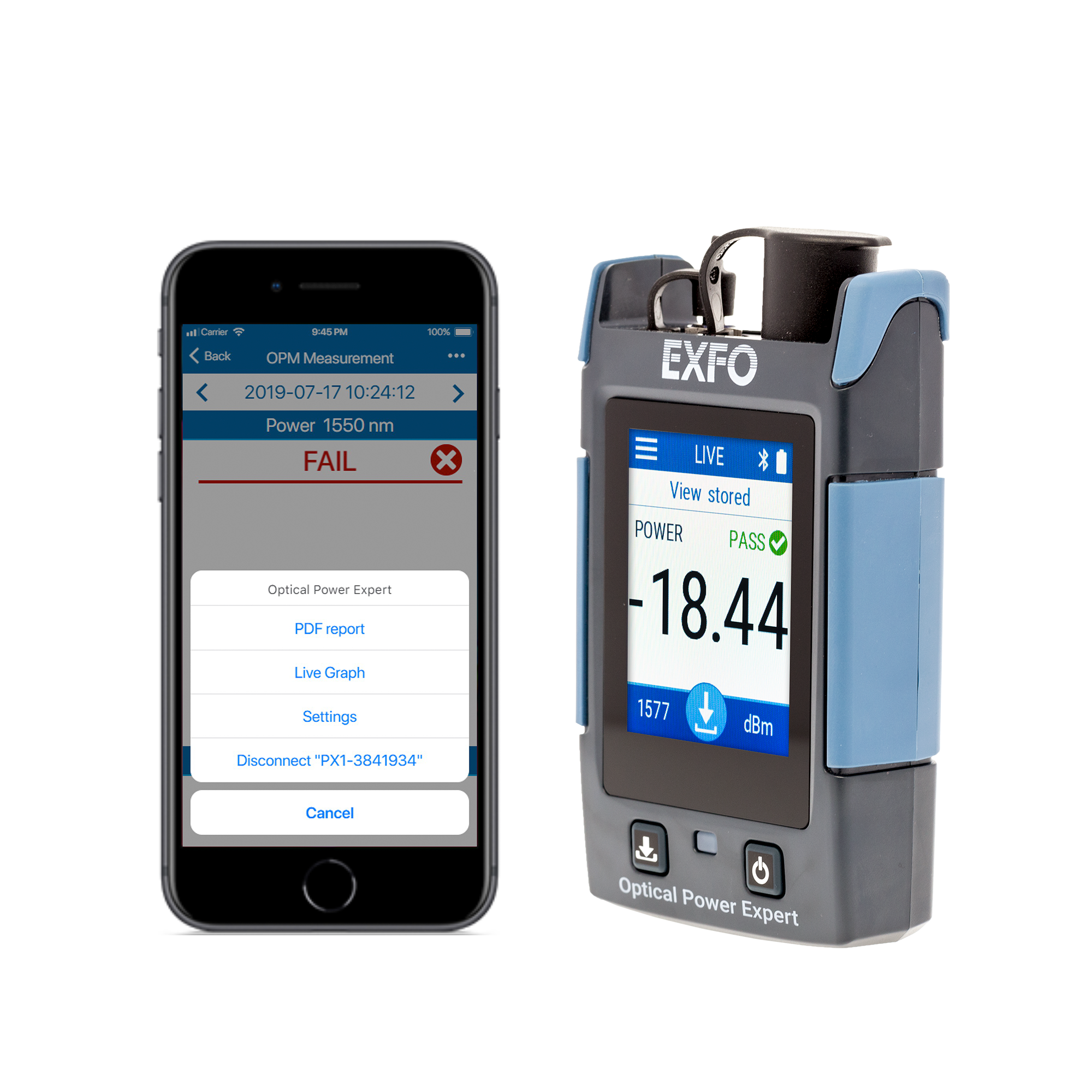

Connect to smart app via Bluetooth: data reporting from the field, cloud storage, workflow management
User-friendly: compact, color touchscreen and intuitive GUI
Robust and rugged: IP54 design for dust and water protection
Time-saving features: no offset nulling, lightning-fast boot-up
High-capacity internal data storage
3-year calibration interval

Connect to smart app via Bluetooth: data reporting from the field, cloud storage, workflow management

User-friendly: compact, color touchscreen and intuitive GUI

Robust and rugged: IP54 design for dust and water protection

Time-saving features: no offset nulling, lightning-fast boot-up

High-capacity internal data storage

3-year calibration interval

Applications

Measuring optical power and insertion loss
Fiber tracing
Passive optical networks (PON)
5G rollouts
FTTx
LAN/WAN access and enterprise
CATV
Military applications

Measuring optical power and insertion loss

Fiber tracing

Passive optical networks (PON)

5G rollouts

FTTx

LAN/WAN access and enterprise

CATV

Military applications

Specifications

Technical specifications
Auto-Wavelength Switching	Yes
Exchange compatibility	Yes
Fiber Connector Type	FC / SC / ST / LC / Universal 1.25 / Universal 2.5
Fiber Type	Singlemode / Multimode
Product type	Handheld
Recalibration Month Interval	36
Test Type	Fiber tracing / Loss / Optical power
Tone Detection	Yes
Touchscreen	Yes (capacitive)
Visual Fault Locator (VFL)	Yes

Full specifications

Connected. Intuitive. Evolutive.

An essential device in today’s field toolkit which combines seamless reporting capabilities and ease of use in a pocket-sized form factor. Evolutive by nature, the solution upgrades over time to help you meet new challenges.

EXFO grade

Designed for extended use in the field, the Optical Power Expert delivers best-in-class optical performances day in, day out.

EXFO’s track-record of robustness, backed with IP54 design for water and dust protection, makes this device extremely reliable and a long-lasting investment.
