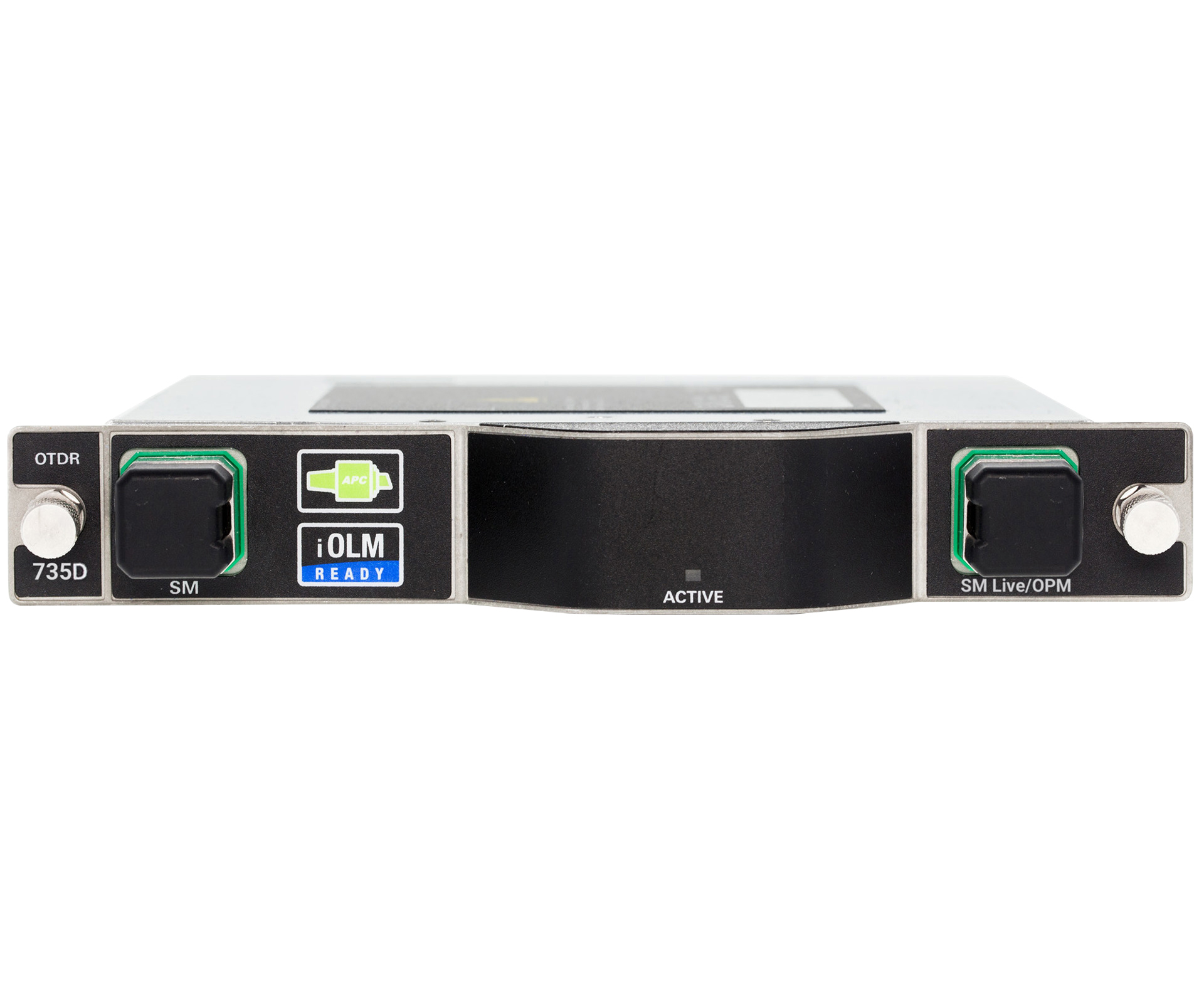

FTBx-735D - PON/metro FTTx/MDU OTDR

High-resolution OTDR designed for metro network testing and splitter characterization in PON FTTx applications. Optimized for use during the rollout and troubleshooting of metro/core and FTTx/MDU networks.

Spec sheet User manual

Key features

Dynamic range up to 45 dB for up to 144 km point-to-point (P2P)

Support high port count PON splitters (up to 1x128)

Live fiber testing

Short dead zones: event dead zone (EDZ) = 0.5 m; attenuation dead zone (ADZ) = 2.0 m; PON dead zone = 25 m

Single port for in-service troubleshooting with in-line 1490/1550 nm PON power meter (optional)

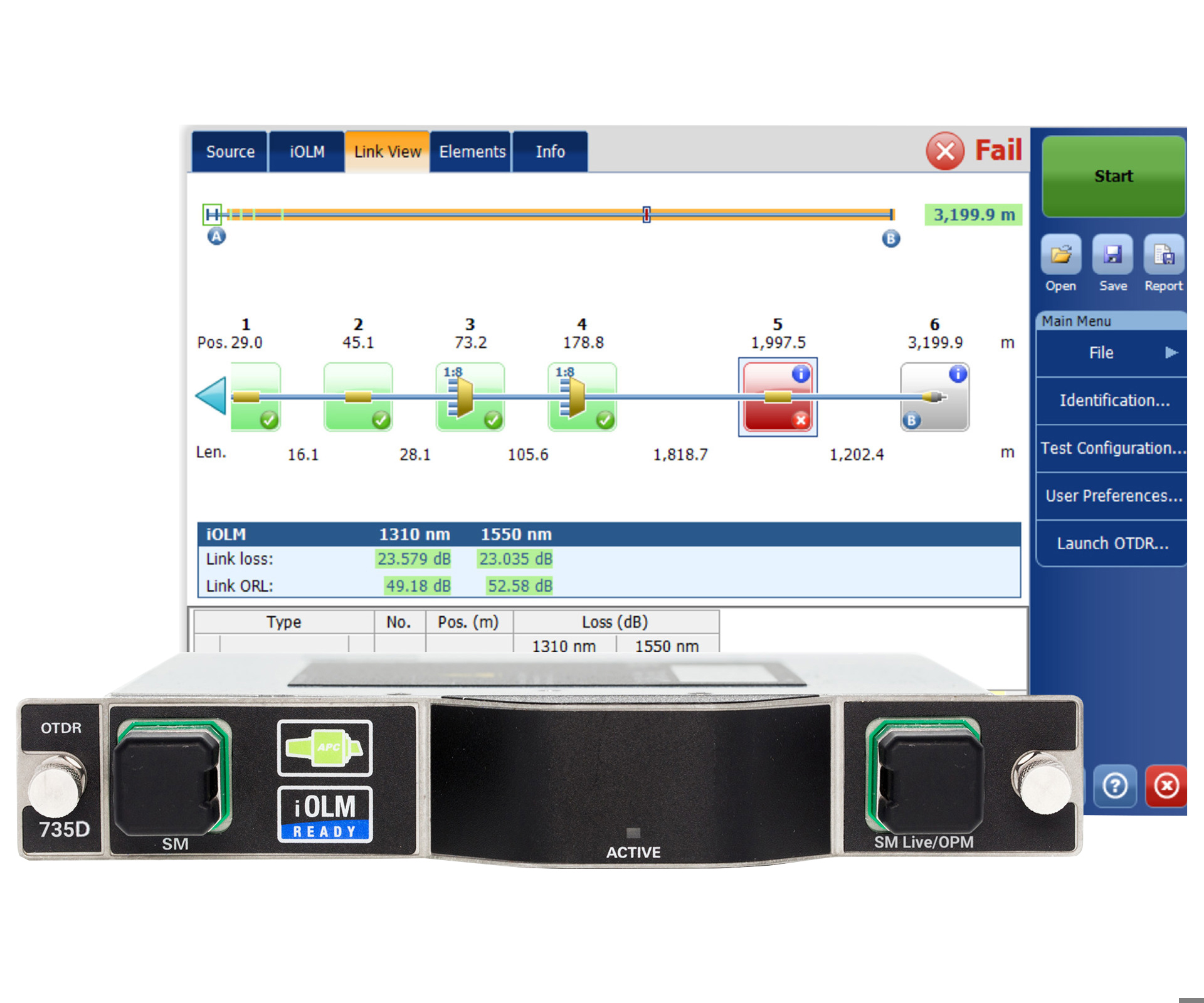

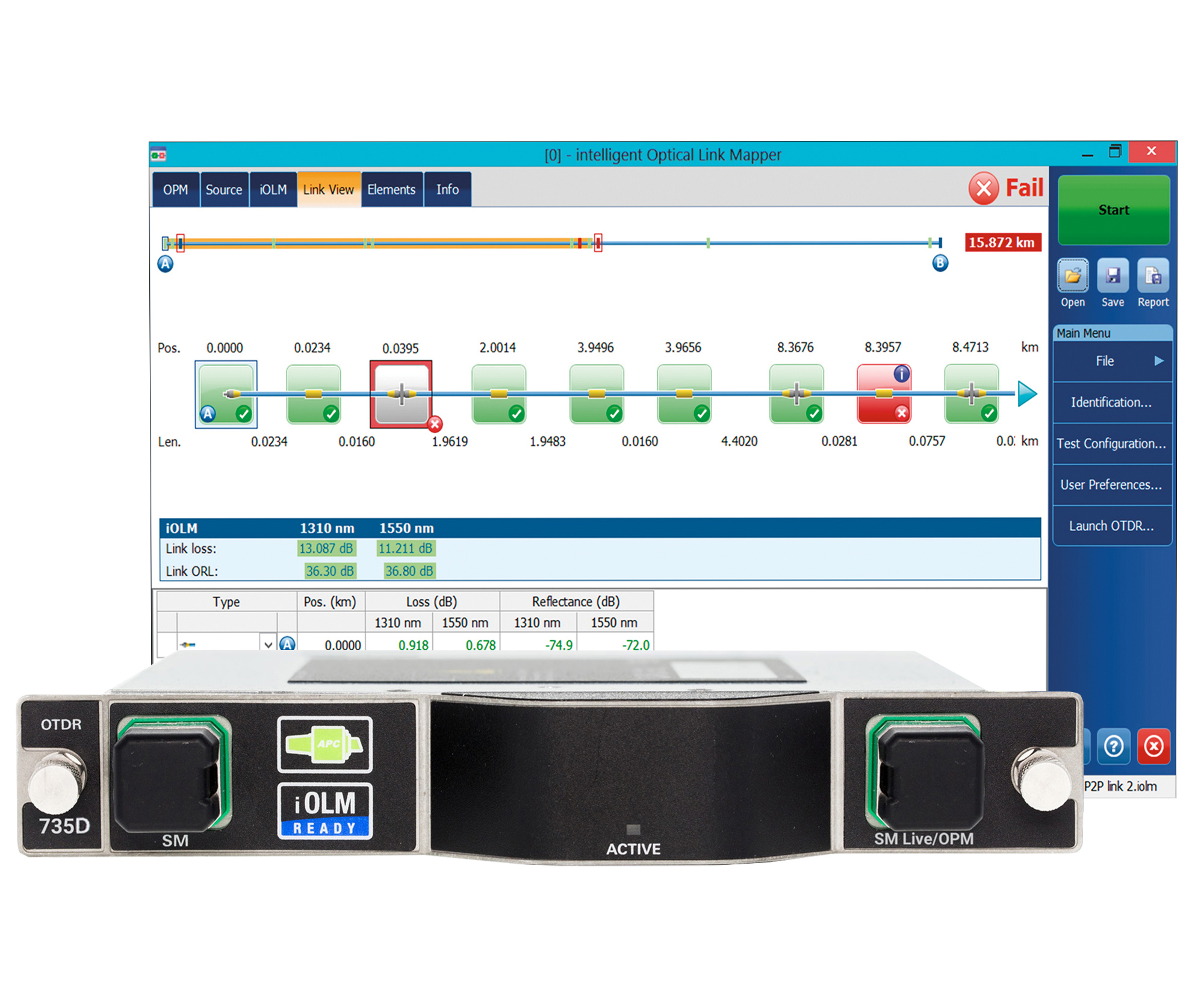

iOLM-ready: one-touch multiple acquisitions, with visually clear go/no-go results

Applications

FTTx/MDU test challenges within PON networks

Metro/core network testing (P2P)

Manufacturing automation

Specifications

Technical specifications
Calibrated wavelengths	1310 / 1550 / 1625 / 1650

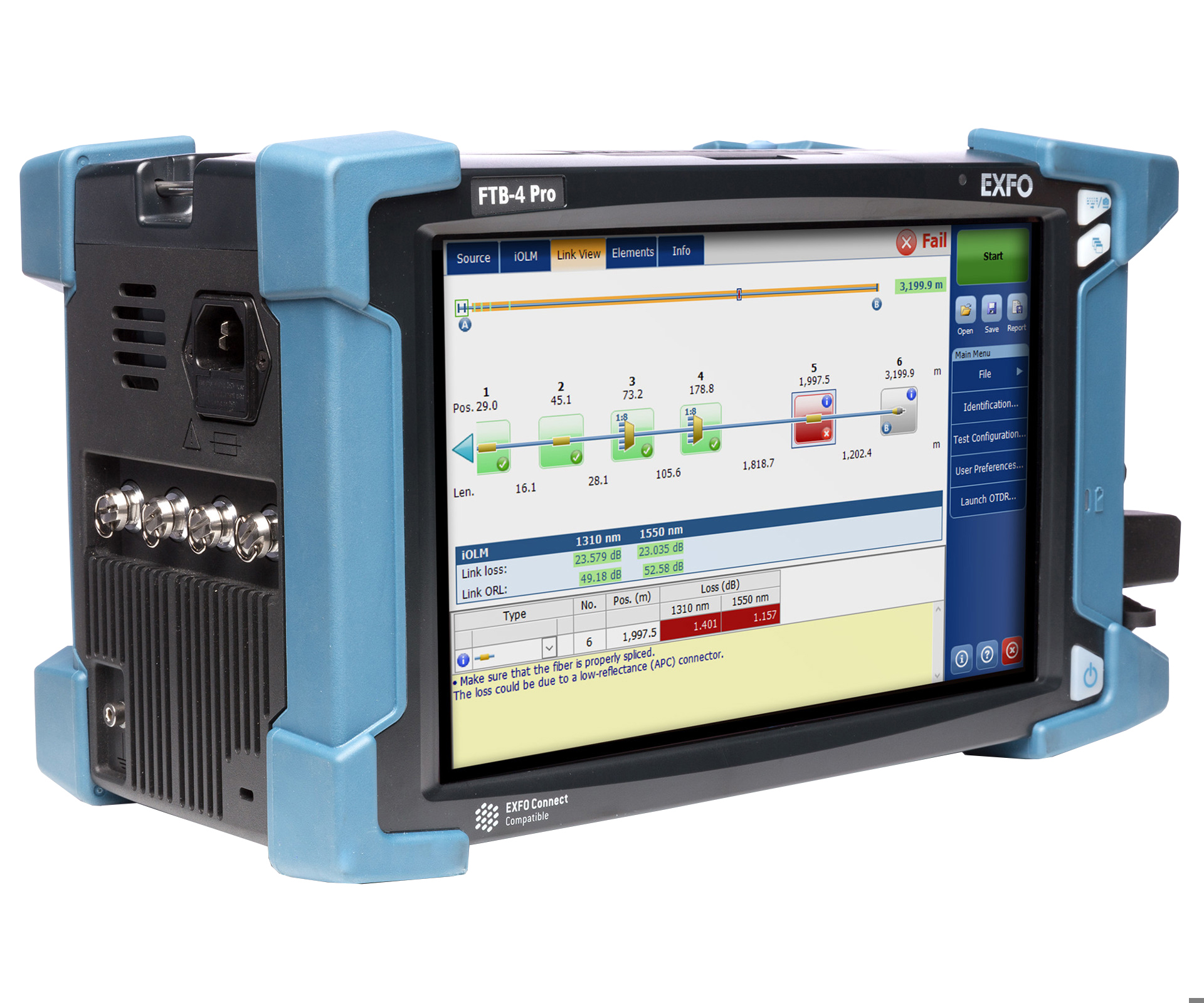

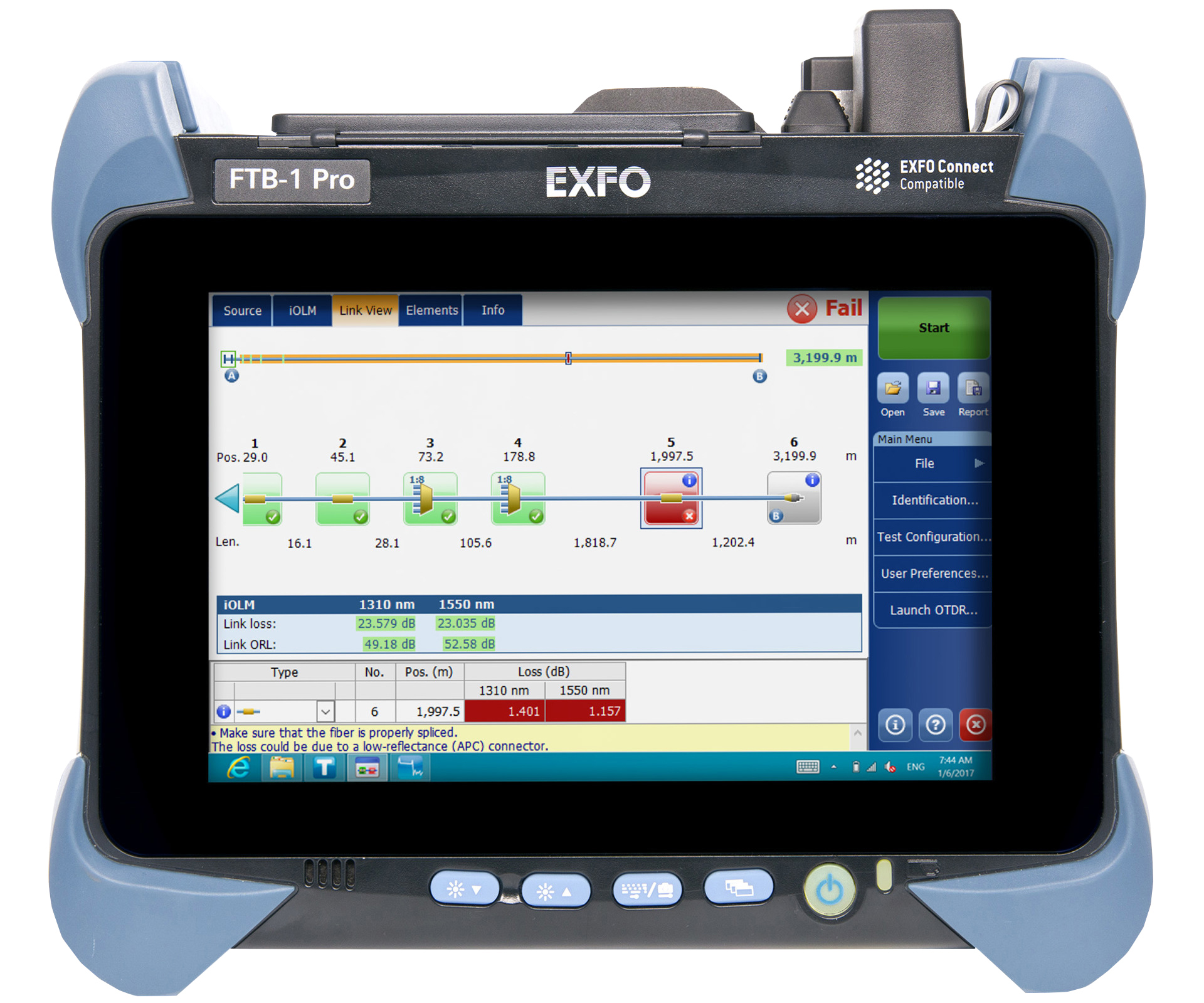

Compatible Products	FTB-1V2-PRO / FTB-2-PRO / FTB-4-PRO
Dynamic range (dB)	45 dB
EXFO Exchange Compatibility	Yes
iOLM-ready	Yes
Product type	Module

Spec sheet

Description

The FTBx-735D is the OTDR of choice for field technicians who need a high-resolution tool for metro network testing and splitter characterization in PON FTTx/MDU applications. It is optimized for the rollout and troubleshooting of metro/core and FTTx networks.

The FTBx-735D OTDR is designed to support high port-count splitters (up to 1x128) and point-to-point (P2P) testing up to 144 km, thanks to its dynamic range of up to 45 dB. Its advanced features, including live fiber testing and short dead zones, make it ideal for precise fault location.

The FTBx-735D advantage

Accurately characterize high port-count PON splitters and metro links with dynamic range up to 45 dB for up to 144 km point-to-point (P2P).
Identify faults closer to splitters with short event and attenuation dead zones.
Simplify in-service troubleshooting with a single port, optional in-line 1490/1550 nm PON power meter, and user-friendly graphical interface.

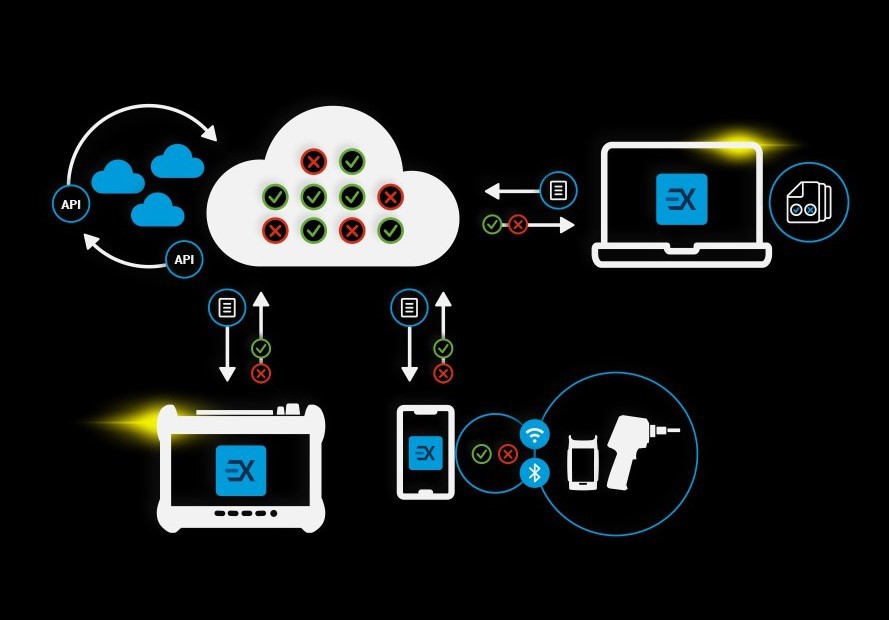

Share test results. Boost compliance. Unlock insights. 

Cloud-hosted solution for sharing test results and ensuring compliance.

Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.
