FTB Lite 735D | connected metro/PON FTTx/MDU OTDR

Key Features

Free 36-month basic data plan provided for real time visibility

8-inch (203-mm) color touchscreen for use in bright sunlight or any other environment

Dynamic range up to 45 dB for up to 144 km point-to-point (P2P)

Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM

Live fiber testing

FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

Industry-leading onboard PDF reporting and post-processing

3-year warranty

Applications

FTTx/MDU testing within PON

Metro/core network testing (P2P)

Manufacturing automation

Specifications

Technical specifications
Calibrated wavelengths	850 / 1300 / 1310 / 1342 / 1358 / 1490 / 1550 / 1577 / 1625 / 1650
Dynamic range (dB)	45 dB
EXFO Exchange Compatibility	Yes
iOLM-ready	Yes
Product type	Handheld

Spec sheet

Test procedure compliance matters

Nearly 40% of organizations have experienced major outages due to human error in the past three years, with 85% of these incidents resulting from staff failing to adhere to methods of procedure (MoPs) or from flawed procedures. (Study by Uptime Institute, 2023).

Always-on connectivity

The FTB Lite Series builds upon EXFO’s innovation in OTDR testing with a secure Connected First™ approach that complements its dedicated and rugged design. Always-on and seamless connectivity to EXFO Exchange delivers unprecedented gains in compliance, efficiency, security and visibility:

Streamlined compliance and automated validation

Automated job tracking and real-time reporting confirm adherence to methods of procedure (MoP) ensure compliance with testing standards while reducing errors and administration time.

Enhanced collaboration and efficiency

Real-time data sharing, automated uploads, and cloud-based reporting enable seamless teamwork, faster decision-making, and accelerated project timelines.

Valuable insights

Automated access to comprehensive live data to perform analytics and extract insights, enabling informed decision-making and planning.

Icon-based mapping

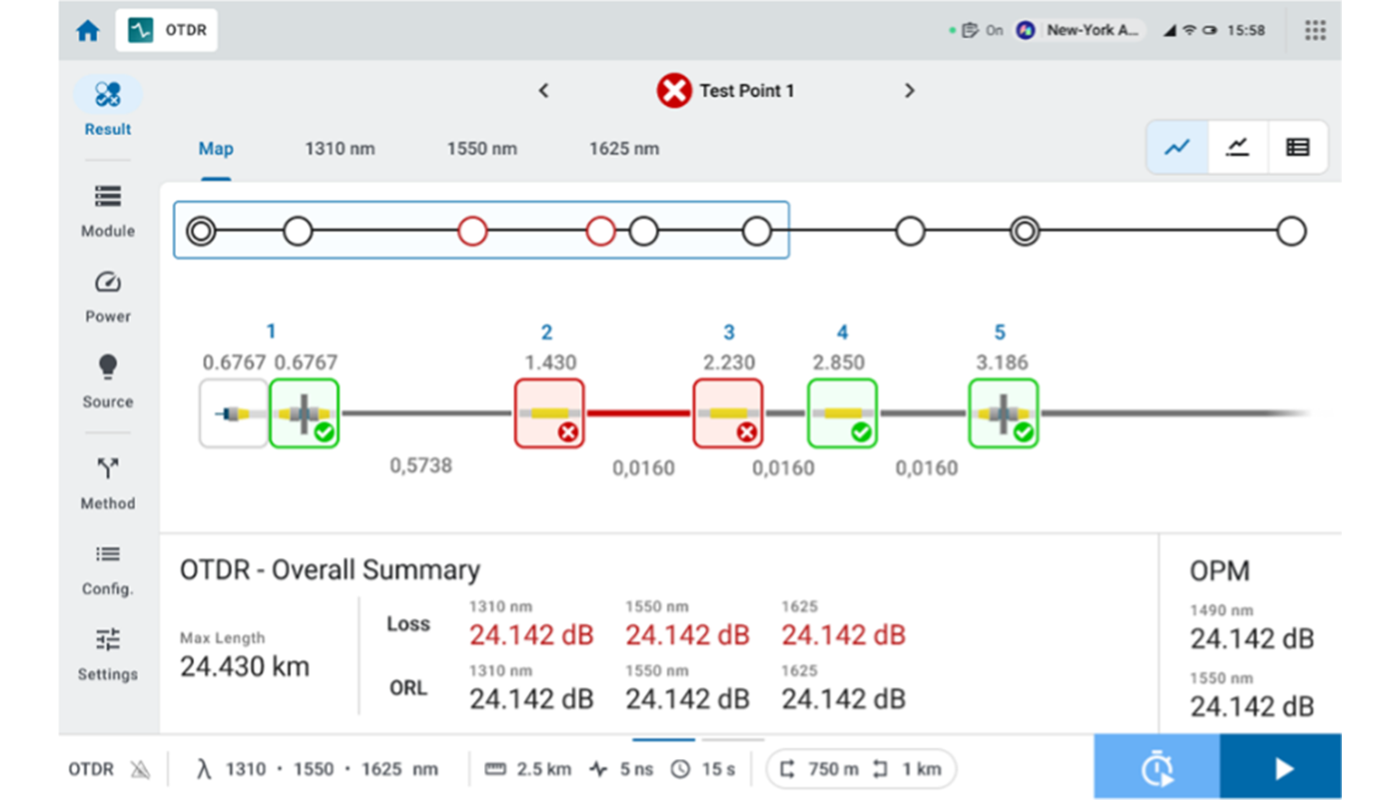

Optical Link Mapper (OLM) is included with all FTB Lite OTDRs.

OLM interprets OTDR traces automatically and provides an icon-based view of the elements on the link:

Automatic analysis of multiple wavelengths with a consolidated link view display.
Synced with events and placed below the linear view to see all events on the link.
Display of end-to-end link length, loss and ORL according to pass/fail settings.
Automatic parameter settings and clear go/no-go results.
Prompt guidance on where and what the network issues are.
