FTB Lite 730D - connected PON/metro OTDR

Overview
Optimized for FTTx/MDU fiber rollouts and troubleshooting. Can also test metro networks.

Key features

  • Free 36-month basic data plan provided for real-time visibility
  • 8-inch (203-mm) color touchscreen for use in bright sunlight or any other environment
  • Live and dark fiber characterization, troubleshooting and activation through the same OTDR port
  • Dynamic range up to 42 dB for up to 132 km point-to-point (P2P) or 1×128 PON
  • Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM
  • FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

Applications

  • FTTx/PON testing through splitters (up to 1×128)
  • FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
  • Access network testing (P2P)
  • Metro links testing (P2P)
  • Live fiber troubleshooting
  • Passive optical LAN (POL)

Specifications

Technical specifications
Battery Autonomy up to 10 hours
Battery Type LiFePO4 / Rechargeable
Calibrated wavelengths 850 / 1300 / 1310 / 1342 / 1358 / 1490 / 1550 / 1577 / 1625 / 1650
Dynamic range (dB) 42 dB
Exchange compatibility Yes
iOLM-ready Yes
Product type Handheld
Storage >20,000 OTDR SOR traces
Touchscreen Yes (capacitive)
Full specifications

Resources

Spec sheet

FTB Lite 730D connected PON/metro OTDR
All resources

Test procedure compliance matters

Nearly 40% of organizations have experienced major outages due to human error in the past three years, with 85% of these incidents resulting from staff failing to adhere to methods of procedure (MoPs) or from flawed procedures.​ (Study by Uptime Institute, 2023)​.

Always-on connectivity

The FTB Lite Series builds upon EXFO’s innovation in OTDR testing with a secure Connected First™ approach that complements its dedicated and rugged design. Always-on and seamless connectivity to EXFO Exchange delivers unprecedented gains in compliance, efficiency, security and visibility.

Streamlined compliance and automated validation

Automated job tracking and real-time reporting confirm adherence to methods of procedure (MoP) ensure compliance with testing standards while reducing errors and administration time.

Enhanced collaboration and efficiency

Real-time data sharing, automated uploads, and cloud-based reporting enable seamless teamwork, faster decision-making, and accelerated project timelines.

Valuable insights

Automated access to comprehensive live data to perform analytics and extract insights, enabling informed decision-making and planning.

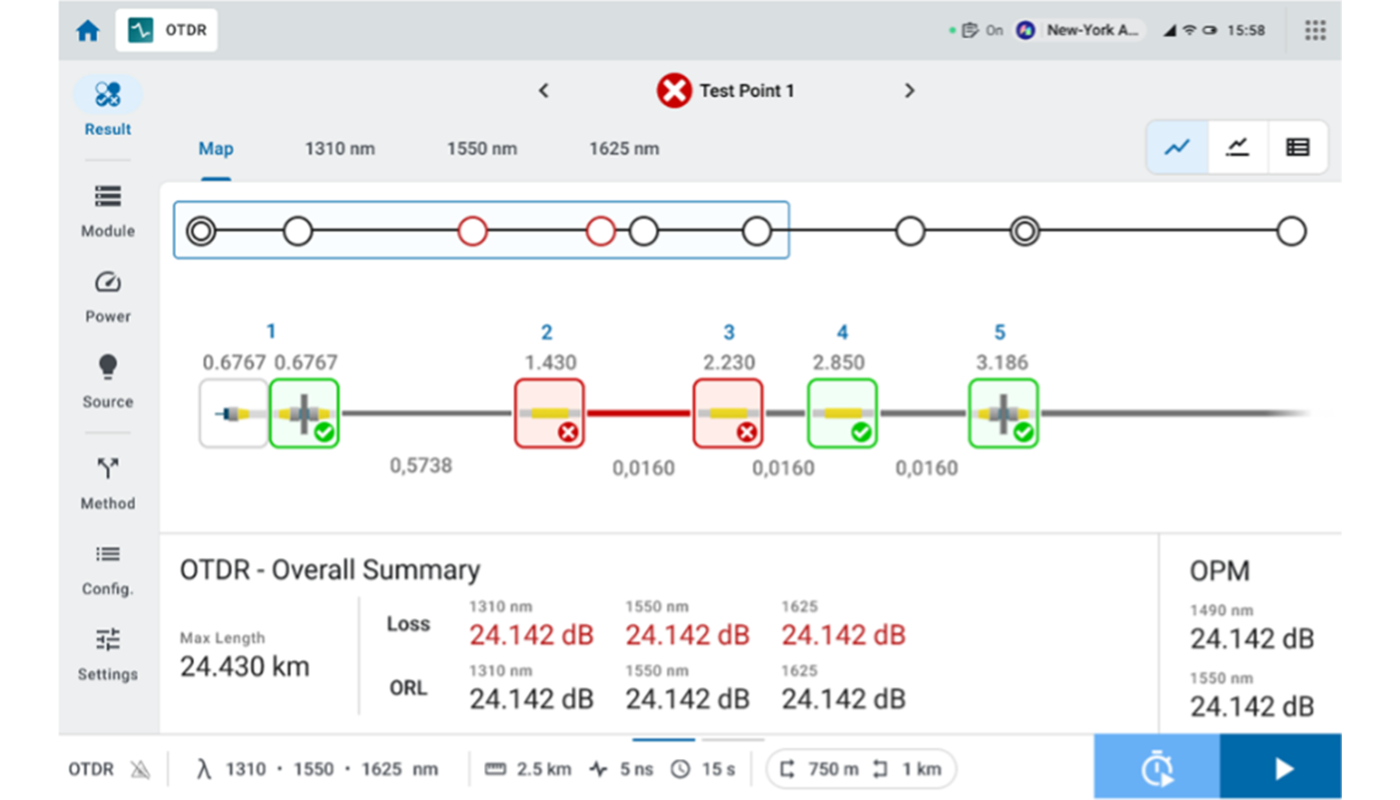

Icon-based mapping

Optical Link Mapper (OLM) is included with all FTB Lite OTDRs.

OLM interprets OTDR traces automatically and provides an icon-based view of the elements on the link:

  • Automatic analysis of multiple wavelengths with a consolidated link view display.
  • Synced with events and placed below the linear view to see all events on the link.
  • Display of end-to-end link length, loss and ORL according to pass/fail settings.
  • Automatic parameter settings and clear go/no-go results.
  • Prompt guidance on where and what the network issues are.

Swap-Out connector

This OTDR comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center. This ensures optimal performance over time without undue maintenance costs and downtime. The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.

Your calibration date remains valid, even after swapping the connector. No need to calibrate your unit sooner than planned.

Did you know?

Was your OTDR connector damaged when connecting a UPC cable to the APC port on your device? This no longer needs to cause downtime by sending the device back for repair. Thanks to EXFO’s Swap-Out connectors, you can now check connector health instantly and replace your connector within seconds if needed–directly from the field!

Share test results. Boost compliance. Unlock insights. 

Cloud-hosted solution for sharing test results and ensuring compliance.

Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.

Key benefits:


icon automate test results managementAutomate test results management.

icon boost compliance efficiencyBoost compliance and efficiency.

icon improve collaboration visibilityImprove collaboration and visibility.

icon access comprehensive reportingAccess comprehensive reporting.

icon unlock insights see what mattersUnlock insights to see what matters.
