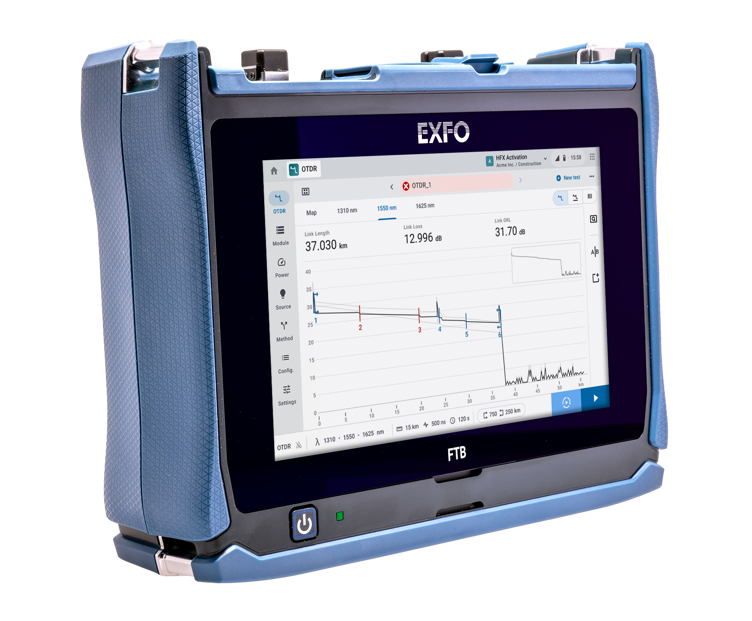

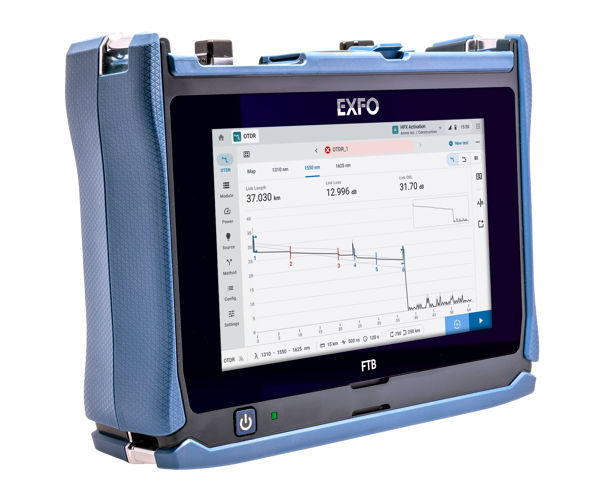

| Wavelength (nm)(b) | 850 ± 20 / 1300 ± 20 / 1310 ± 30 / 1550 ± 30 / 1650 ± 15 |
| Live wavelength (nm) | 1650 |
| Isolation | 50 dB from 1265 nm to 1617 nm |
| Dynamic range (dB)(c) | 28 / 30 / 38 / 36 / 37 |
| Event dead zone (m)(d) | SM: 0.7 MM: 0.7 |
| Attenuation dead zone (m) | SM: 2.5e MM: 2.5f |
| PON dead zone (m)(g) | 35 |
| Distance range (km) | MM: 0.1 to 40 SM: 0.1 to 260 |
| Pulse width (ns) | MM: 3 to 1000 SM: 3 to 20 000 |
| MM launch conditions(h) | EF-compliant |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.001 |
| Sampling resolution (m) | MM: 0.04 to 5 SM: 0.04 to 10 |
| Sampling points | Up to 256 000 |
| Distance uncertainty (m)(i) | ±(0.75 + 0.0025 % × distance + sampling resolution) |
| Measurement time | User-defined |
| Reflectance accuracy (dB)(b) | ±2 |
| Typical real-time refresh (Hz) | 4 |
| In-line power checker(b, j, k) | |
| Power range (dBm) | −60 to 23 |
| Power uncertainty (dB)(l, m) | ±0.5 |
| Calibrated wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable wavelengths (nm) | 1310, 1490, 1550, 1577, 1625, 1650 |
| Tone detection | 270 Hz / 330 Hz / 1 kHz / 2 kHz |
| Technical specifications (in-line PON power meter with OPM2 in option)(a, b) | |
| Power range (dBm) | −60 to 23 |
| PON power meter (nm) | Two channels: 1490/1550 and 1490/1577 |
| Power uncertainty (dB)(c, d) | ±0.5 |
| Calibrated wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable wavelengths (nm) | 1310, 1490, 1550, 1577, 1625, 1650, 1490/1550, 1490/1577 |
| Source | |
| Output power (dBm)(e) | MM: −2 SM: −8 |
| Modulation | CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| a. All specifications valid at 23 °C ± 2 °C with an FC/APC connector, unless otherwise specified. b. Typical. c. Typical dynamic range with longest pulse and three-minute averaging at SNR = 1. d. Typical, for reflectance of −55 dB in SM and −45 dB in MM. e. Typical, for reflectance at −55 dB, using a 3-ns pulse. f. Typical, for reflectance at −45 dB, using a 3-ns pulse. g. Non-reflective FUT, non-reflective splitter, 13-dB loss, 50-ns pulse in SM, typical value. h. Compliant with Encircled Flux TIA-526-14-B and IEC 61280-4-1 Ed. 2.0 using an external EF conditioner (SPSB-EF-C-30). i. Does not include uncertainty due to fiber index. j. Not available when OPM2 is selected. k. Specifications valid when OTDR not in operation or in idle mode. l. At calibrated wavelengths. m. Requires a good entry connector’s health. | |
| Display | 8-inch (203 mm), 1280×800, color touchscreen (viewable in sunlight) |
| Interfaces | USB-A ports (2) USB-C port with power delivery RJ45 LAN 10/100/1000 Mbit/s |
| RF comms(a, b) | Bluetooth, Wi-Fi, 2G/3G/4G LTE, GNSS (GPS/GALILEO/QZSS) |
| Storage | >20 000 OTDR SOR traces |
| Battery | Rechargeable LiFePO4 battery, up to 10 hours(c) of operation as per Telcordia (Bellcore) GR-196-CORE |
| Power supply | Input: AC/DC adapter, 100 to 240 V AC, 50 to 60 Hz, 1.5 A max. Output: 5 to 20 V DC, 3.0 A max., 45 W max., USB-C power delivery standard supported |
| Weight (including battery and module) | 2.4 kg (5.3 lb) |
| Size (H × W × D) | 198 mm × 249 mm × 71 mm (7.8 in × 9.8 in × 2.8 in) |
| Temperature | Operating: −10 °C to 50 °C (14 °F to 122 °F) Storage: −40 °C to 70 °C (−40 °F to 158 °F) |
| Relative humidity | 0 % to 95 % non-condensing |
| Warranty (year) | 1 |
| Built-in power meter specifications (GeX) (optional)(d) | |
| Calibrated wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Selectable wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Power range (dBm)(e) | 27 to −50 |
| Uncertainty (%)(f) | ±5 % |
| Display resolution (dB) | 0.01 = max to −40 dBm 0.1 = −40 dBm to −50 dBm |
| Tone detection (Hz) | 270 / 330 / 1000 / 2000 |
| VFL specifications | VFL (optional) and high-power VFL (optional) |
| Operation mode | VFL (optional): Flashing (slow/fast) and continuous High-power VFL (optional): Flashing (slow/fast) and continuous |
| Flashing frequency (Hz) | VFL (optional): 1 or 4 High-power VFL (optional): 1 or 4 |
| Wavelength (nm) (typical) | VFL (optional): 650 High-power VFL (optional): 660 |
| Emitter type | VFL (optional): Laser High-power VFL (optional): Laser |
| Power output (mW) (max.) | VFL (optional): 1 High-power VFL (optional): 5 |
| Distance range (km) (typical)(g) | VFL (optional): 7 High-power VFL (optional): 12 |
| Laser safety class | VFL (optional): 2 High-power VFL (optional): 3R |
| Laser safety | Complies with FDA 1040.10 and IEC 60825-1:2014-05. Without VFL (option): IEC 60825-1:2014-05. With VFL (option): IEC 60825-1:2014-05, IEC/CEI 60825-1:2014. With high-power VFL (option): IEC 60825-1:2014-05, IEC/CEI 60825-1:2014. Applicability: Class 1M, 2M and 3R. WARNING: Viewing the laser output with telescopic optical instruments (for example, telescopes and binoculars) may pose an eye hazard and thus the user should not direct the beam into an area where such instruments are likely to be used. |
| a. Free 36-month basic data plan provided. b. Restrictions may apply depending on country/region which will prevent EXFO from providing mobile connectivity. Contact EXFO for details. c. Battery life varies significantly based on device configuration, usage, network and feature configuration, signal strength, settings and other factors. d. At 23 ºC ± 1 ºC, 1550 nm and FC connector. With modules in idle mode. Battery operated after 30-minute warm-up. e. Typical. f. At calibration conditions. g. Depends on fiber attenuation and ambient light conditions. | |
