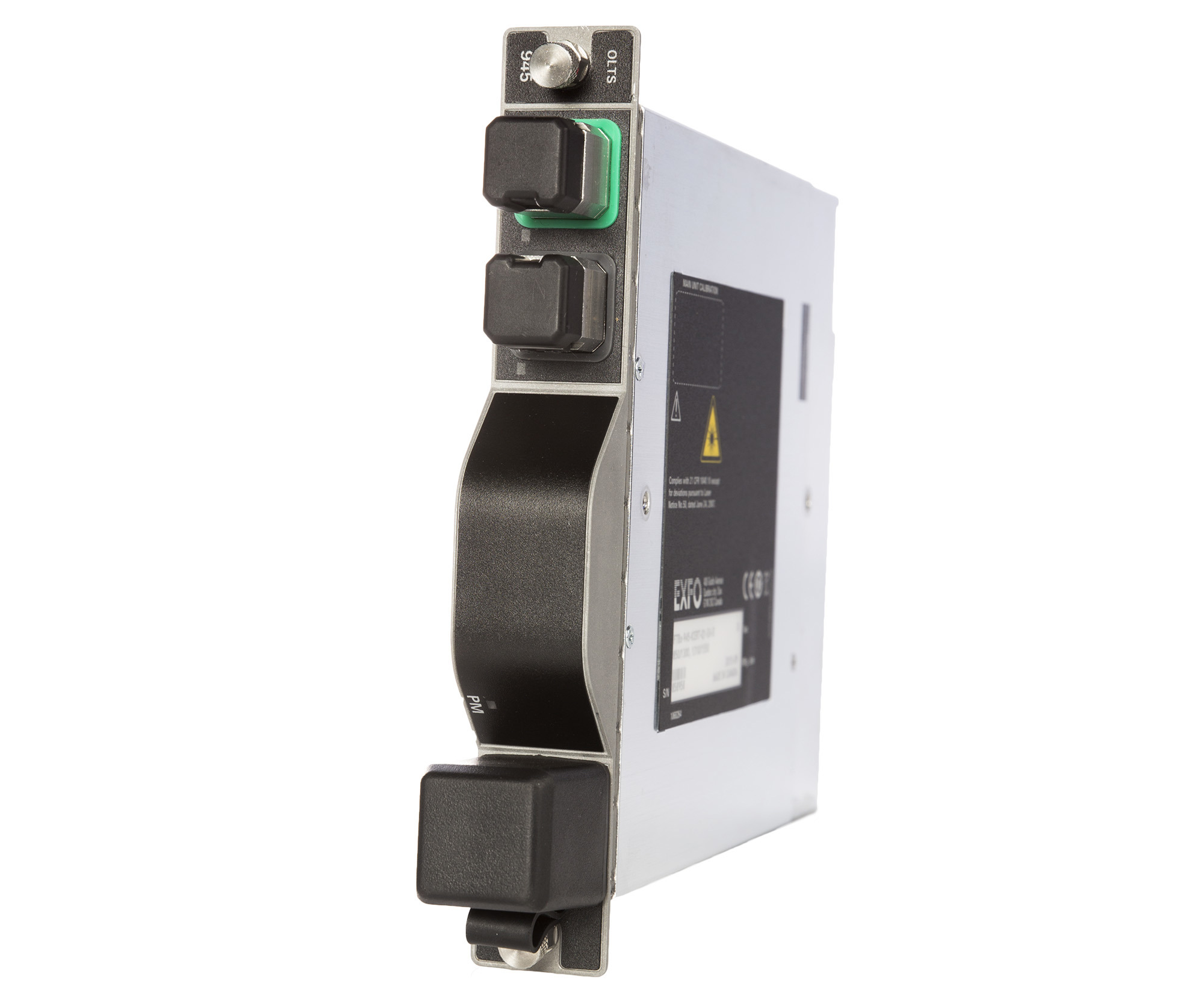

FTBx-945 Fiber Certifier OLTS

OLTS test module for data center and enterprise Tier 1 fiber certification.

Spec sheet

Key features

Certify two fibers at two wavelengths in less than 3 seconds with FasTesT™

On-board assistant and diagnosis to reduce the risk of reference errors and negative loss

Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC

100% automated fiber inspection: one-step process with pass/fail analysis at both ends

Certifies to multiple industry standards simultaneously

On-board professional PDF reporting

Optional Optical Return Loss measure (FTBx-945)

Batch processing of results with FastReporter 2 software

Best-in-class singlemode distance range of 200 km

EXFO Connect ready

Applications

Data centers

Enterprise structured cabling

Specifications

Technical specifications
Automation	Automated (FasTesT™)
Calibrated wavelengths	850 / 1270 / 1290 / 1300 / 1310 / 1330 / 1350 / 1370 / 1383 / 1390 / 1410 / 1430 / 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 / 1610 / 1625 / 1650
Compatible Products	FTB-1V2-PRO / FTB-2-PRO / FTB-4-PRO
EXFO Exchange Compatibility	Yes
Fiber connector type	ST / SC / LC / E2000
Fiber type	Singlemode / Multimode
Measurement	Link loss / Optical return loss (ORL)
Multiple wavelength measuring	Yes
Product type	Module
Tone detection	Yes
Visual Fault Locator (VFL)	No

Spec sheet

Description

Data center and enterprise Tier 1 fiber certification

The FTBx-940/945 Fiber Certifier OLTS has been specifically designed for characterizing high volumes of data center fiber links. Technicians need to work as fast and as accurately as possible to keep expenses down and optimize certification time. An intuitive Windows-like user interface, icon-based functions as well as onboard assistance ensure that learning curves are minimized and measurements quickly recorded.

OLTS module for Tier 1 certification

Fully featured Tier-1 certifier. Combine the FTBx-940/945 with EXFO’s OTDR/iOLM for an all-in-one Tier-1 and Tier-2 test, Ethernet testing or with any other EXFO FTBx module for a fully flexible test solution.

Share test results. Boost compliance. Unlock insights. 

Cloud-hosted solution for sharing test results and ensuring compliance.

Paired with EXFO’s leading test instruments, EXFO Exchange drives an entire ecosystem, while integrating seamlessly with existing operation processes.
