Full specifications

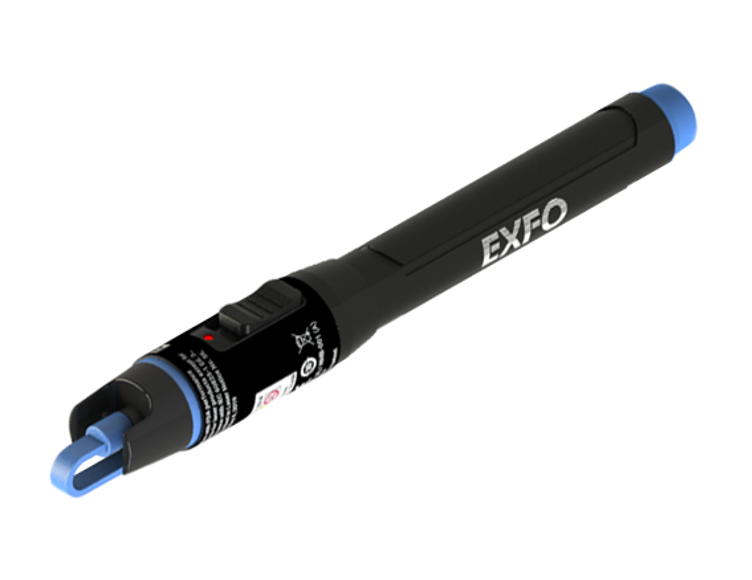

FLS-190 - High-power visual fault locator (VFL)

This high-power pocket-sized VFL is an essential tool for any technician testing fiber over long distances.

Overview

This high-power pocket-sized VFL is an essential tool for any technician testing fiber over long distances.

Key features

Key features

Output power: 5 mW

Range: 12 km

Bright red laser at 650 nm (safety class 3R)

Flashing and continuous operation modes

30 hours of operation (typical)

Standard AA alkaline batteries

Applications

Break and macrobend location

Fiber identification

Technical specifications
Operation mode	Flashing and continuous
Flashing frequency (Hz)	2 ~ 3
Wavelength (nm) (typical)	650
Emitter type	Laser
Power output (mW) (max.)	5
Distance range (km) (typical)^b	12
Standard accessories (included)	Quick reference guide, belt-loop holster and two AA alkaline batteries
Accessories	GP-1013 Universal 1.25 mm ferrule adapter
Laser safety	IEC/CEI 60825-1:2014; complies with 21 CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
^{a. Specifications are valid at 23 °C ± 1 °C. b. Depends on fiber attenuation and ambient light conditions. c. Typical battery life using AA alkaline batteries.}
