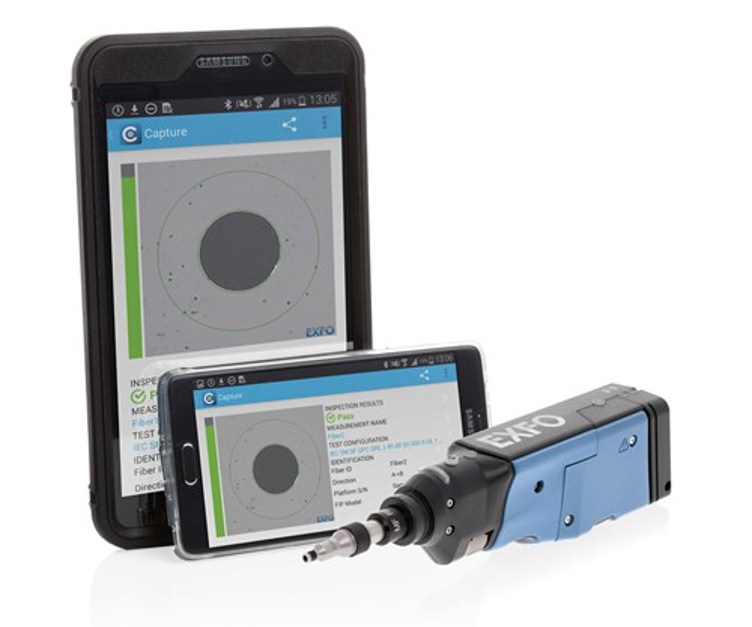

| WiFi fiber inspection scope specifications (FIP-435B)b | |
| Size (H x W x D) | 55 mm x 39 mm x 207 mm (2 3/16 in x 1 1/2 in x 8 1/8 in)c |
| Weight | 0.3 kg (0.66 lb) |
| Resolution | 0.55 µm |
| Camera sensor | Five-megapixel CMOS |
| Visual detection capabilityh | <1 µm |
| Field of viewh | 304 µm x 304 µm (high magnification) 608 µm x 608 µm (mid magnification) 912 µm x 912 µm (low magnification) |
| Light source | Blue LED |
| Lighting technique | Coaxial |
| Capture button | Available on all models |
| Magnification button | Available on all models |
| Digital magnification | Three levels |
| Connector | Micro USB |
| Connectivity | WiFi 802.11g |
| Frequency band | 2.4 GHz |
| Smart device OS compatibilityd | Android 4.4 and above, iOS 9 and above |
| Power | 1 x removable battery |
| Autonomye | ≥8 hours |
| Recharge timef | ≤ 4 h |
| Distance rangeg | 2.5 m (8.2 ft) |
| USB fiber inspection scope specifications (FIP-4X0B)b | |
| Size (H x W x D) | 47 mm x 42 mm x 162 mm (1 7/8 in x 6 1/8 in x 2 in) |
| Weight | 0.3 kg (0.66 lb) |
| Resolution | 0.55 µm |
| Camera sensor | Five-megapixel CMOS |
| Visual detection capability | <1 µm |
| Field of view | 304 µm x 304 µm (high magnification) 608 µm x 608 µm (mid magnification) 912 µm x 912 µm (low magnification) |
| Light source | Blue LED |
| Lighting technique | Coaxial |
| Capture button | Available on all models |
| Magnification button | Available on all models |
| Digital magnification | Three levels |
| Connector | Minimum USB 2.0 |
| Built-in power meter specifications (GeX) (optional)a | |
| Calibrated wavelengths (nm) | 850, 1300, 1310, 1490, 1550, 1625, 1650 |
| Power range (dBm)b | 27 to –50 |
| Uncertainty (%)c | ±5 % ± 10 nW |
| Display resolution (dB) | 0.01 = max to –40 dBm 0.1 = –40 dBm to –50 dBm |
| Automatic offset nulling rangeb, d | Max power to –34 dBm |
| Tone detection (Hz) | 270/330/1000/2000 |
| Visual fault locator (VFL) (optional) | |
| Laser | 650 nm ± 10 nm |
| CW/Modulate | 1 Hz |
| Typical Pout in 62.5/125 µm | > –1.5 dBm (0.7 mW) |
| Laser safety | Class 2 |
| b. Typical. c. Measurement excluding tip and including strain relief. d. Software is qualified with Google Nexus, Apple iPhone and Apple iPad devices. Other models are not guaranteed to be 100% compatible. e. One (1) test per minute. The scope remains in live mode for 20 seconds during each test. f. Using USB AC adapter. When scope is in use it may take more time to fully recharge. g. WiFi interference and physical obstacles may affect distance range. h. Single fiber connector mode. At 23 ºC ± 1 ºC, 1550 nm and FC connector. Battery-operated after 20-minute warm-up. a. Typical. b. At calibration conditions. c. For ±0.05 dB, from 10 °C to 30 °C. | |
| Temperature (operating) | Unit powered by batteries: –10 °C to 40 °C (14 °F to 104 °F) Unit connected to USB adapter: 0 °C to 40 °C (32 °F to 104 °F) |
| Temperature (storage) | Unit without batteries: –40 °C to 70 °C (–40 °F to 158 °F) Unit with batteries: –20 °C to 60 °C (–4 °F to 140 °F) |
| Relative humidity | Unit: 0 % to 95 % non-condensing USB adapter: 5 % to 95 % non-condensing for storage; 8 % to 90 % for operating temperature |
| ConnectorMax 2 software – PC operating system compatibility and requirements | Windows 7 (32 bit and 64 bit): Pentium (1.6 GHz or higher recommended); 512 MB RAM (2 GB recommended); 40 MB disk space; latest .NET Framework 3.5; DirectX 9.0; USB 2.0, minimum. Windows 8 (32 bit and 64 bit): Pentium (1.6 GHz or higher recommended); 1 GB RAM for 32-bit, 2 GB for 64-bit (2 GB or more recommended); 40 MB disk space; desktop applications supported. Windows 10 (32 bit and 64 bit): Pentium (2 GHz or faster); 2 GB RAM for 32-bit, 4 GB for 64-bit; 40 MB disk space; desktop applications supported. |
| a. –20 °C to 60 °C (–4 °F to 140 °F) with the battery pack. | |
