FIP-200 - Connector Checker

Spec sheet
Spec sheet
Overview
Purpose-built for​ broadband service activation.​ Compact and intuitive, the FIP-200 Connector Checker™ provides visually clear pass/fail results adapted to broadband in the field.

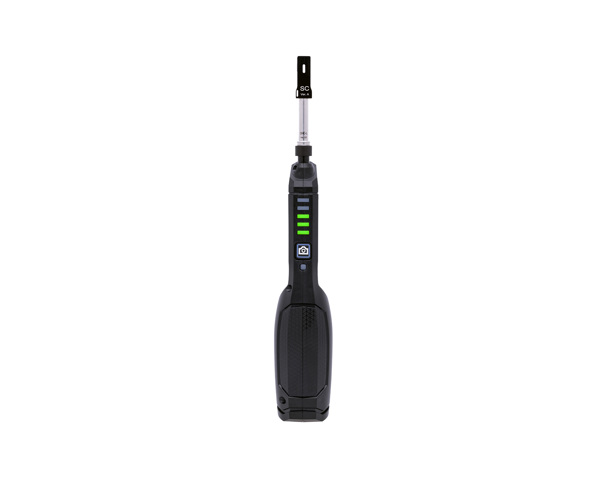

FIP-200 - Connector Checker

Key features

  • Single-button operation for power-on and capture.
  • Five-bar rating (LED lights) to quickly assess cleanliness of the connector.
  • Pass/fail thresholds adapted to broadband context.
  • Cloud-hosted job management and reporting via EXFO Exchange to ensure technician compliance.
  • Autonomous mode: The FIP-200 can also operate independently, with no phone required for basic functions.
  • Long-reach head to easily access dense panels and cabinets.

Applications

  • FTTH testing
  • Service activation

Specifications

Technical specifications
End-to-end inspection and analysis time 7 seconds
Field of view Single-fiber: 0.75 mm × 0.75 mm
Pass/fail analysis 5-bar rating for FTTH networks
Camera sensor 5 megapixels
Light source Blue LED at 460 ±10 nm
CPU 1.4 GHz dual core
Connectivity Bluetooth® and Wi-Fi
Battery type Lithium-ion polymer (Li-Po) rechargeable battery
Autonomy 210 captures
3h30 at 1 capture per minute
Charging time 46 minutes to 50%
120 minutes to 100%
Connector USB-C
Local storage capability 100 single-fiber measurements
EXFO Exchange synchronization Yes
General specifications
Size (H × W × D) 247 mm × 40 mm × 38 mm (9 3/4 in × 1 5/8 in × 1 1/2 in) a
Reach (long-reach head) 60 mm (2 3/8 in)
Weight 137 g (0.3 lb)
Temperature – Operating –10 °C to 40 °C (14 °F to 104 °F)
Temperature – Storage –20 °C to 60 °C (–4 °F to 140 °F)
Humidity range 0 % to 95 % non-condensing
Supported languages (user manual) b English, French
a. FIP-200 body with tip.
b. Translations available upon request.
