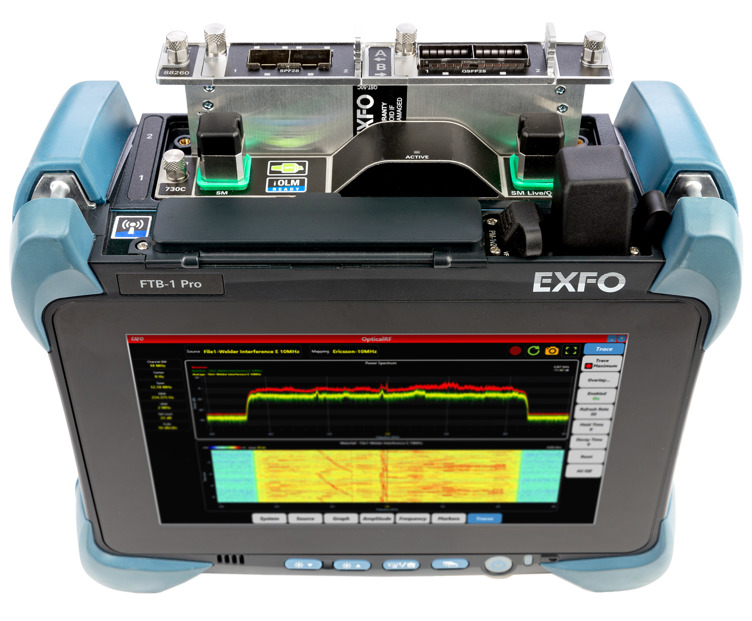

| Frequency range (TA-FR1 / TA-FR2) | 450 MHz to 6 GHz / 24.25 GHz to 40 GHz |
| Analysis bandwidth (TA-FR1 / TA-FR2) | 100 MHz / 100 MHz |
| RF max safe level input (TA-FR1) | 30 dBm peak typical, ±50 VDC (≥ 10 dB attenuation) |
| RF max safe level input (TA-FR2) | 20 dBm peak typical, ±50 VDC (≥ 10 dB attenuation) |
| Preamplifier (TA-FR1 / TA-FR2) | Yes / Yes |
| Attenuator (auto/manual) (TA-FR1 / TA-FR2) | 0 to 30 dB, 10 dB steps / 0 to 30 dB, 10 dB steps |
| Connector RF IN (TA-FR1) | SMA female connector |
| Connector RF IN (TA-FR2) | RF IN 2.92 mm (K) male connector |
| Spectrum analyzer traces | Max, Sample, Max Hold, Min Hold. Displays all traces at the same time. |
| Spectrum analyzer frequency range (TA-FR1 / TA-FR2) | 450 MHz to 6 GHz / 24.25 GHz to 40 GHz |
| Frequency reference (accuracy) | ±0.35 ppm (including aging for 2.5 years) |
| Spectrum analyzer markers | Display 12 markers. Apply on Max, Sample, Max Hold, Min Hold traces. Go to Peak, Snap to Peak (patent-pending). |
| Spectrum analyzer audible tone | Audible tone linked to each marker for interference hunting (configurable level-limit lines). |
| Spectrum analyzer persistence spectrogram | Apply on Max, Sample, Max Hold, Min Hold traces. 30 seconds, amplitude scale user selectable, 2D and 3D. |
| RBW/VBW | 58 Hz to 120 kHz / 1:1, 3:1, 10:1, 30:1, 100:1 |
| Gated sweep | Zero span and gate configuration to visualize TDD signals. Patent-pending synchronization with 5GNR and LTE frames. SSB scanner to scan, detect and sync onto 5G signals. |
| Spectral purity – offset SSB phase noise at 1 GHz | 10 KHz –98 dBc/Hz; 100 KHz –105 dBc/Hz; 1 MHz –125 dBc/Hz; 10 MHz –137 dBc/Hz |
| Spectral purity – offset SSB phase noise at 25 GHz | 10 KHz –85 dBc/Hz; 100 KHz –93 dBc/Hz; 1 MHz –104 dBc/Hz; 10 MHz –127 dBc/Hz |
| Spurs (typical values) | Residuals < –100 dBm (50 ohms termination, 0 dB attenuation, preamp off) a Contact factory for more details |
| Third-order intercept (TOI) (typical values) | 450 MHz to 3 GHz: 10.1 dBm; 3 GHz to 6 GHz: 7.2 dBm; 24.5 GHz to 30 GHz: 13.82 dBm; 30.5 GHz to 39.5 GHz: 14.44 dBm |
| Amplitude ranges (1 GHz) | DR: 2/3* (TOI-DANL at 1 Hz RBW): > 104 dB. Measurement range: DANL to 30 dBm. DR: 2/3* (TOI-DANL at 1 Hz RBW): > 105 dB. Measurement range: DANL to 20 dBm. |
| Displayed average noise level (DANL typical values) – TA-FR1 | Preamp ON: 1 GHz –167 dBm/Hz; 2-3 GHz –167 dBm/Hz; 4-6 GHz –166 dBm/Hz. Preamp OFF: 1 GHz –151 dBm/Hz; 2-3 GHz –149 dBm/Hz; 4-6 GHz –151 dBm/Hz. |
| Displayed average noise level (DANL typical values) – TA-FR2 | Preamp ON: 24.5-36.5 GHz –160 dBm; 37-40 GHz –161 dBm. Preamp OFF: 24.5-36.5 GHz –142 dBm; 37-40 GHz –143 dBm. |
| Input VSWR | 1.3:1 (nominal) (TA-FR1); 2.3:1 (nominal) (TA-FR2) |
| Channel power (typical amplitude uncertainty) (dBm) | 2 (TA-FR1); 2 (TA-FR2) |
| RTSA bandwidth (MHz) | 6.25, 12.5, 25, 50, 100 |
| RTSA traces | Persistent real-time spectrum with variable decay (0-10 seconds) and infinite decay. Max, Sample, Average, Max Hold, Min Hold. Displays all traces at the same time. |
| RTSA markers | Display 12 markers. Apply on Max, Sample, Average, Max Hold, Min Hold traces. Go to Peak, Snap to Peak. |
| RTSA audible tone | Audible tone linked to each marker for interference hunting (configurable level limit lines). |
| RTSA persistence spectrogram | Apply on Max, Sample, Average, Max Hold, Min Hold traces. 30 seconds, amplitude scale user selectable, 2D and 3D. |
| POI (probability of intercept) | 50 μs (100 MHz bandwidth) |
| FFT rate | 60 000 FFT/s |
| 5G signal analyzer frequency range | 450 MHz to 6 GHz (FR1) and 24.25 GHz to 40 GHz (FR2) |
| 5G signal analyzer analysis bandwidth (MHz) | Up to 100 |
| 5G signal analyzer band configuration | Manual or selectable band number, absolute radio frequency channel number (ARFCN), auto subcarrier spacing (SCS) |
| 5G signal analyzer multi-beam view | Physical-layer cell ID, beam index, SCS, SSB periodicity (auto-detected), SS-RSRP (dBm), SS-RSRQ (dB), SS-SINR (dB) |
| SSB blind scanner (5G signal analyzer) | Scan and detect 5G NR signals by searching through GSCN and ARFCN. Predefined search in SPAN, frequency range and 3GPP band. |
| 5G signal analyzer amplitude | Auto range, reference level offset, attenuation level (auto/manual), preamp |
| 5G signal analyzer Multi-PCI | Filter by strongest and specific PCI (display up to 12 PCI) |
| LTE signal analyzer frequency range | 450 MHz to 6 GHz (FR1) |
| LTE signal analyzer analysis bandwidth (MHz) | Auto, 1.4, 3, 5, 10, 15, 20 |
| LTE signal analyzer band configuration | Manual or selectable band number, absolute radio frequency channel number (ARFCN) |
| LTE signal analyzer cell view | Physical cell ID (PCI), SectorID, GroupID, duplexing, RSRP (dBm), RSRQ (dB), RSSI (dBm) |
| LTE signal analyzer amplitude | Auto range, reference level offset, attenuation level (auto/manual), preamp |
| LTE signal analyzer Multi-PCI | Filter by strongest and specific PCI (display up to 8 PCI) |
| a. Three exceptions: Spur at 2Fc-4315.53 for central frequency (FC) in (4265.53-4365.53) with a level of –94 dBm. Spur at 2Fc-1975.53 for FC in (1925.53-2025.53) with a level of –100 dBm. Spur at 2Fc-2458.48 for FC in (2458.48-2491.53) with a level of –100 dBm. | |
| Interfaces | RJ45 LAN 10/100/1000 Mbit/s; WiFi connectivity; USB 2.0 ports (2); USB 3.0 port (1); MicroSD card slot; 3.5 mm headset/microphone port |
| Battery autonomy – Dual carrier (FTB-1v2 Pro) | > 2h |
| Battery autonomy – High-power dual carrier (FTB-1v2 Pro) | > 4h |
| Certification | MIL-PRF-28800F – Class 2 (shock, vibration and drop) |
| Mainframe and storage | Quad-core processor / 4 GB RAM / Windows 10 with 128 GB internal flash memory. MicroSD slot for external storage. |
| Screen | Touchscreen, color, 1280 × 800 TFT 203 mm (8 in) |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Size (H × W × D) – Double-depth module back / Dual carrier | 210 mm × 254 mm × 96 mm (8 ¼ in × 10 in × 3 7/8 in) |
| Size (H × W × D) – High-power dual carrier | 210 mm × 254 mm × 122 mm (8 ¼ in × 10 in × 4 ¾ in) |
| Weight – Dual carrier | 2.9 kg (6.4 lb) |
| Weight – High-power dual carrier | 3.7 kg (8.2 lb) |
