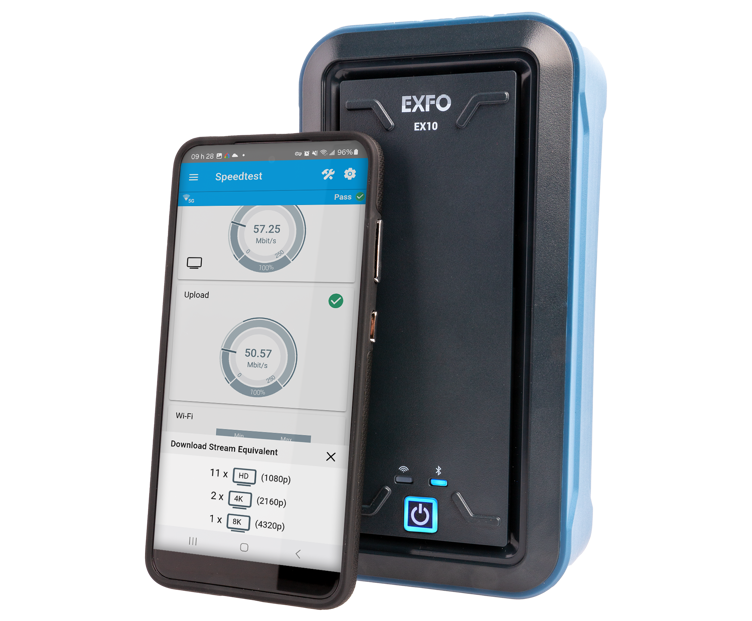

EX10 - Multigigabit residential & business services tester

Download spec sheet
Download spec sheet
Overview
Validate bandwidth speeds up to full line rate 10 Gigabit Ethernet, test residential Wi-Fi 7 and monitor residential quality of experience
EX10 - Multigigabit residential & business services tester

Key features

  • Multigigabit validation including 1, 2.5, 5 and 10 Gigabit interfaces (powered by Speedtest® by Ookla®)
  • Latency, download and upload throughput performance metrics with adjustable pass/fail thresholds based on subscribers’ purchased plans
  • SFP/SFP+ interface for Speedtest over fiber
  • Wi-Fi 7 testing (2.4 GHz, 5 GHz and 6 GHz bands)
  • Supports GPON, XGS-PON with PON ID, ONU ID and transmit optical loss (TOL) and optical distribution network (ODN) loss
  • Wireless interface (WiFi) supporting Speedtest and channel mapping

Applications

  • Broadband validation
  • QoE: validate core services
  • WiFi optimization

Specifications

Technical specifications
Electrical RJ45 test port100/1000/2500/5000/10000 Mbit/s
Optical SFP test port1GE SFP, SFP GPON ONT (upcoming release) (2.4 Gbit/s download and 1.2 Gbit/s upload) and 10GE SFP+, SFP+ XGS‑PON ONT (10 Gbit/s download and 10 Gbit/s upload)
USB portUSB 3.0 type-C port
BluetoothBluetooth v5.0
Wi-FiWi-Fi 7 (2.4 GHz, 5 GHz and 6 GHz)
TypeRechargeable Li-ion smart battery
Battery autonomyOne full day of customer visits (i.e., average of 10 residential broadband customer visits)
Charging time3.5 h using supplied wall charger
AC/DC adapter/chargerInput: 100–240 VAC; 50/60 Hz; 1.0 A max, output: 5 V, 9 V, 12 V, 15 V; 3.0 A and 20 V; 2.25 A
General specifications
Size (H x W x D)105 mm x 200 mm x 60 mm (4 1/16 in x 7 13/16 in x 2 3/8 in)
Weight0.8 kg (1.75 lb)
Temperature Operating0 °C to 40 °C (32 °F to 104 °F)
Storage with battery (short term < 1 month)–10 °C to 40 °C (14 °F to 104 °F)
Relative humidity range≤ 93 %, non-condensing
