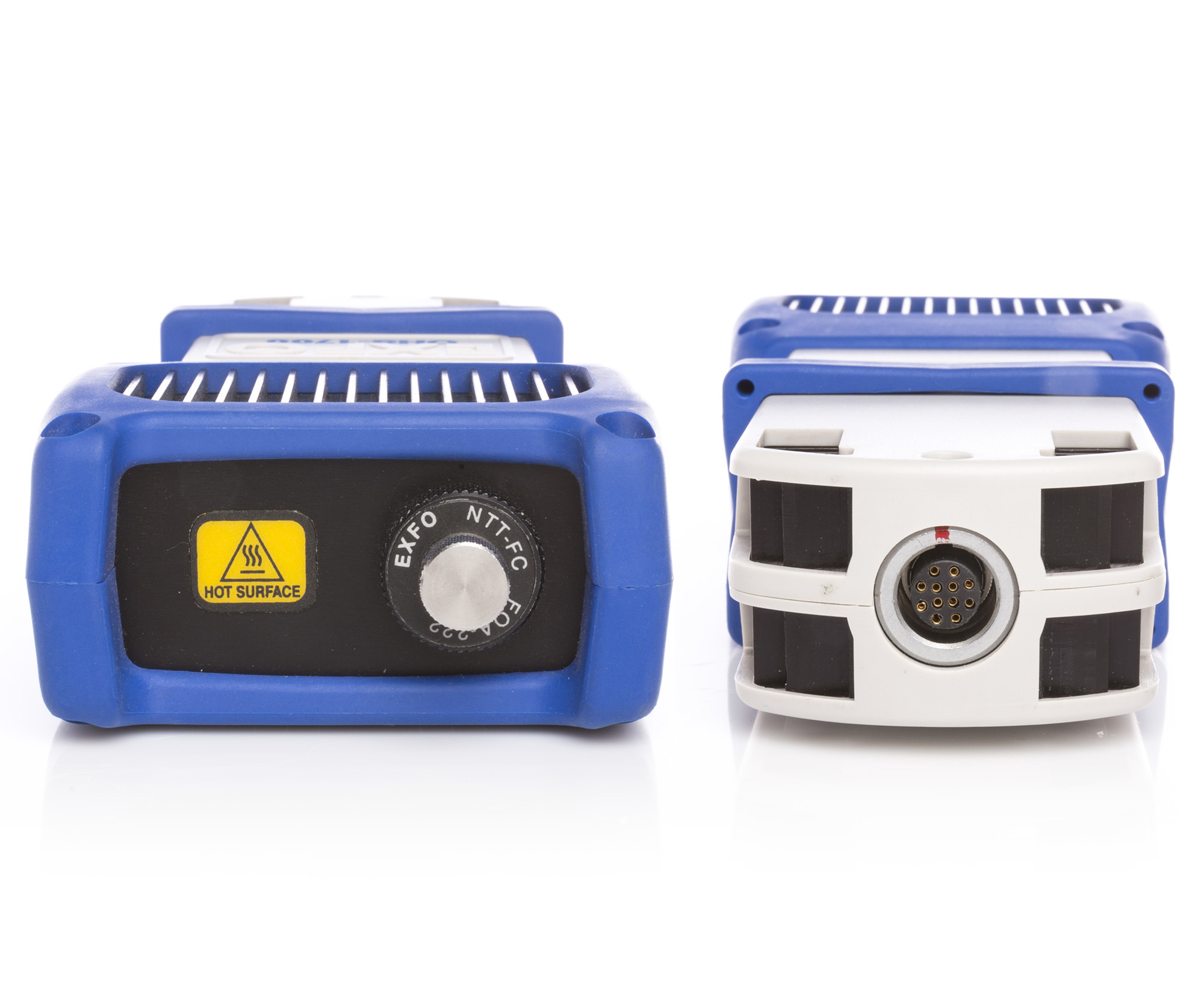

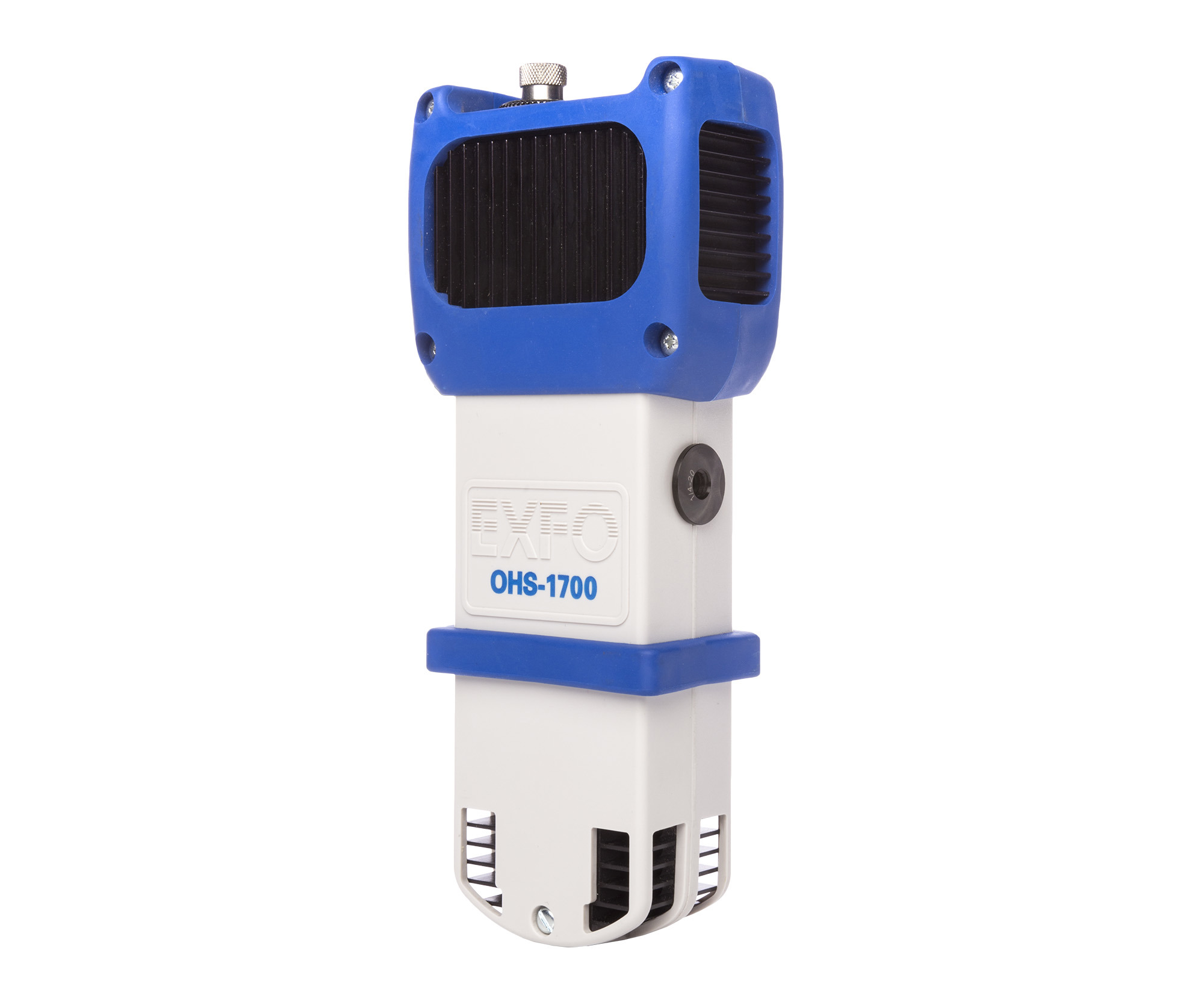

OHS-1700 - High-Performance Optical Head

The OHS-1700 High-Performance Optical Head interfaces with the FTBx-1750 module, delivering high performance for R&D and active/passive component manufacturing test setups.

Datenblatt Bedienungsanleitung

Leistungsmerkmale

Measurement up to +37 dBm
Possibility to combine up to 2 remote heads on single interface module
9 mm input aperture
Continuous sampling rate of up to 5 kHz

Anwendungen

Absolute power measurement up to +40 dBm
IL and PDL testing of connectorized or non-connectorized passive components

Spezifikationen

Technische Daten
Compatible Products LTB-12 / LTB-2 / LTB-8
Datenblatt

Beschreibung

The OHS-1700 is a remote power measurement sensor that interfaces with the FTBx-1750 module, delivering high performance for R&D and active/passive component manufacturing test setups.

The—Ultra-High-Power™—OHS-1700 Optical Heads can handle high power levels while maintaining unsurpassed accuracy, a very high sampling rate and an impressive stabilization time.

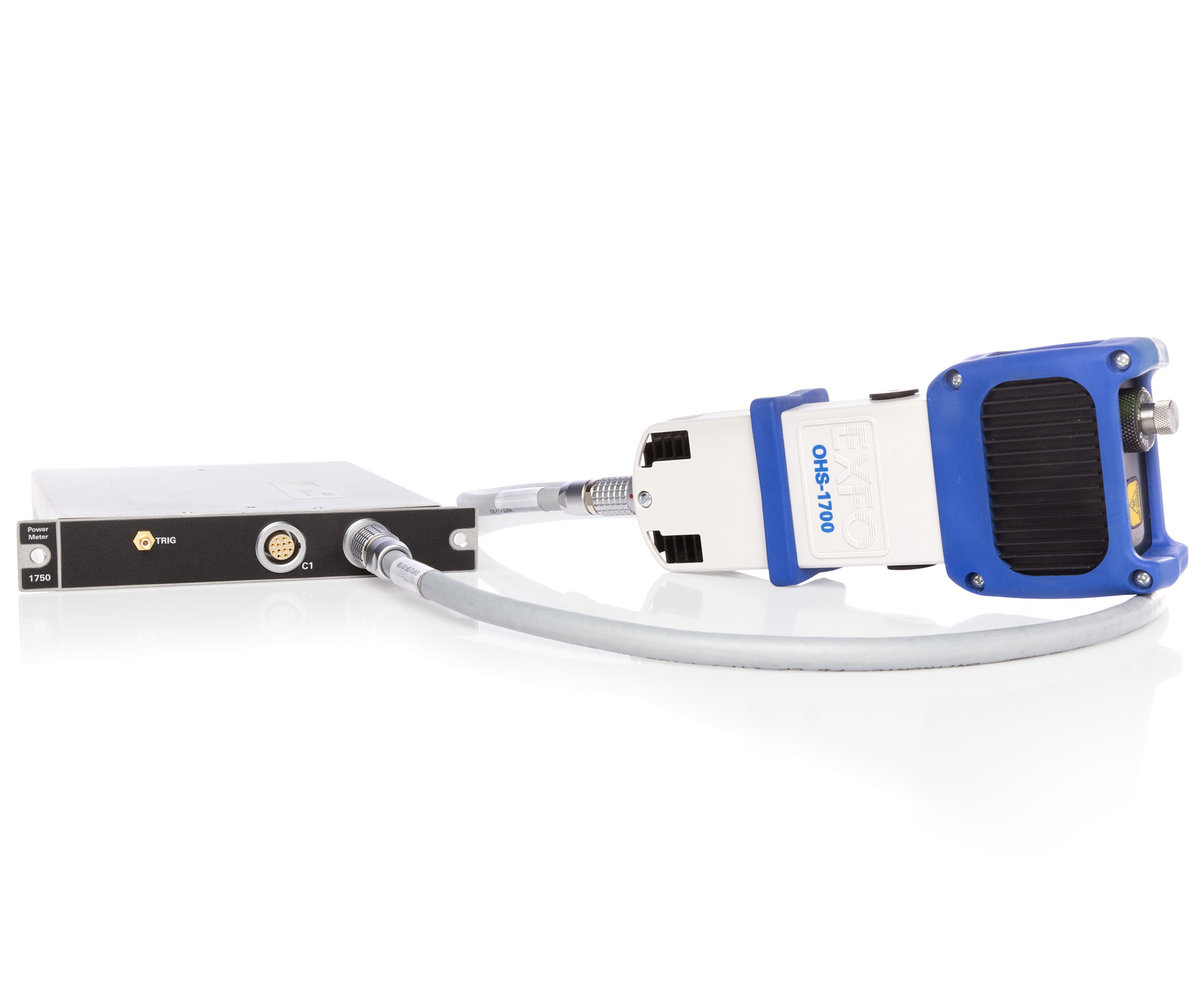

Use up to two independent optical heads on a single FTBx-1750 interface module to improve efficiency, reduce costs and save space.
