FOT-5205 - DWDM channel checker

Übersicht

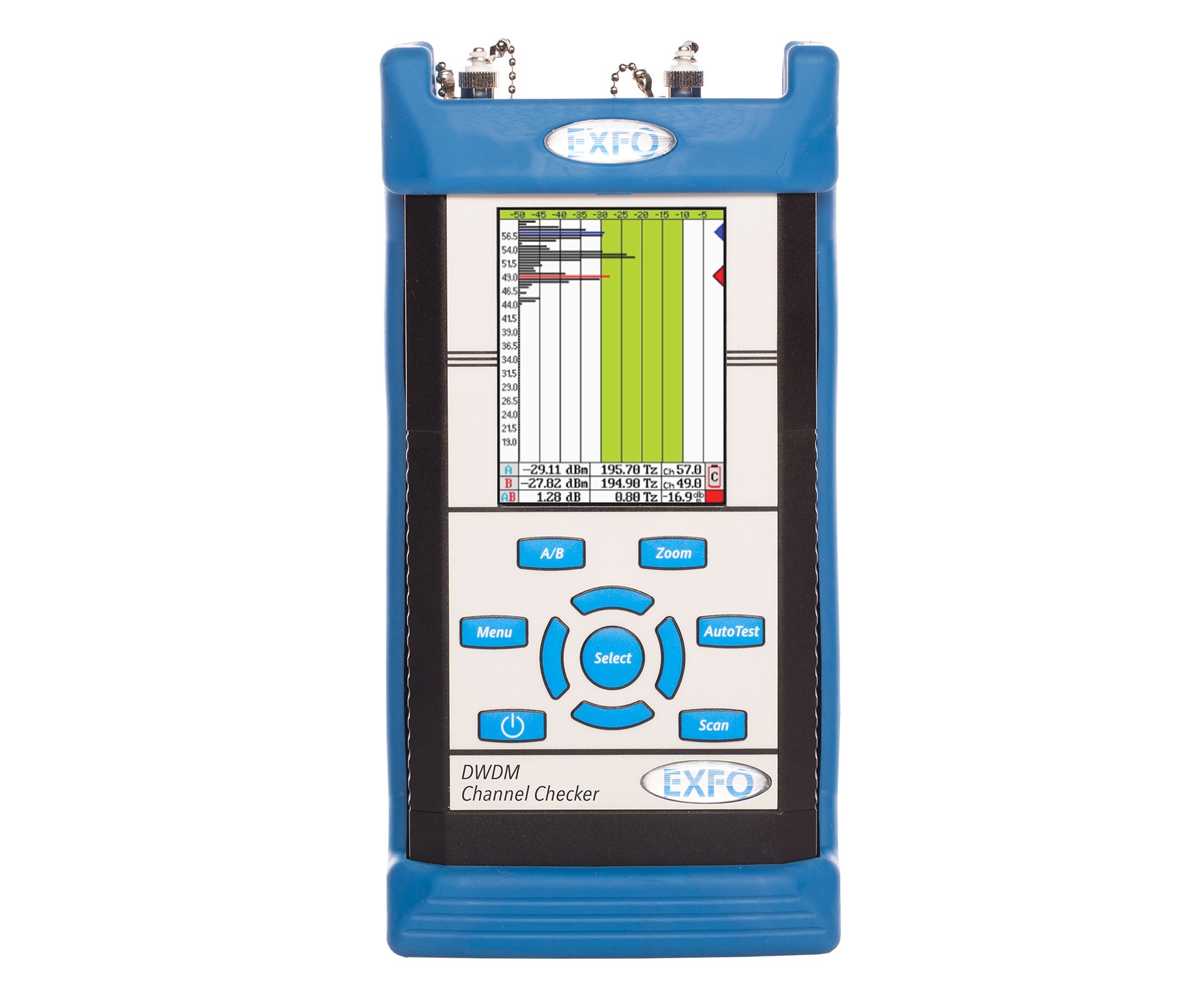

Handheld channel checker for monitoring DWDM channels and measuring their power

Leistungsmerkmale

  • Handheld channel checker that supports 50 GHz and 100 GHz DWDM spacings
  • Ideal tool for cable operators
  • Spectral range covering all Remote PHY wavelengths
  • Low power signal detection ideally suited for measurements through monitor ports
  • Ultrafast measurement time

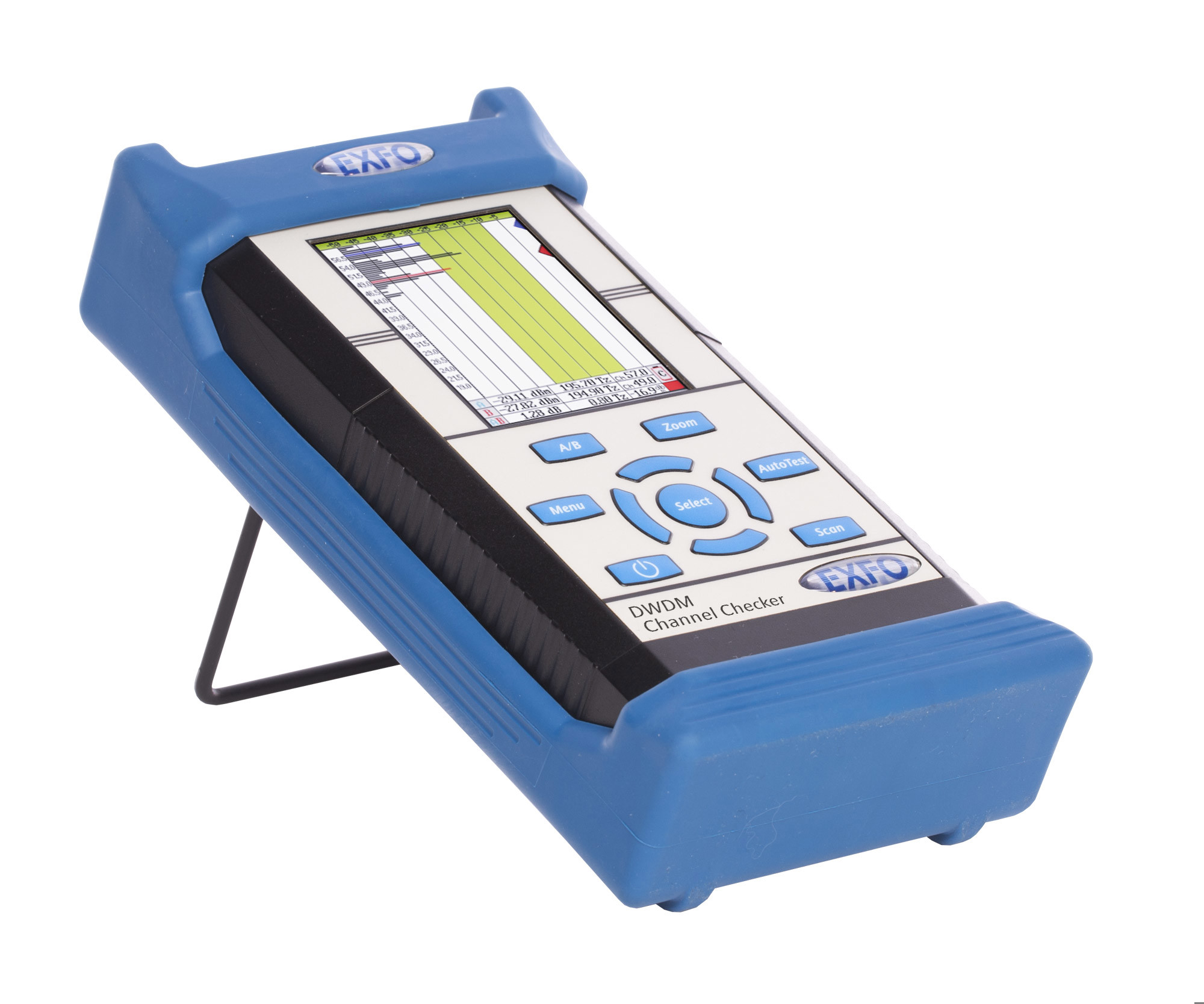

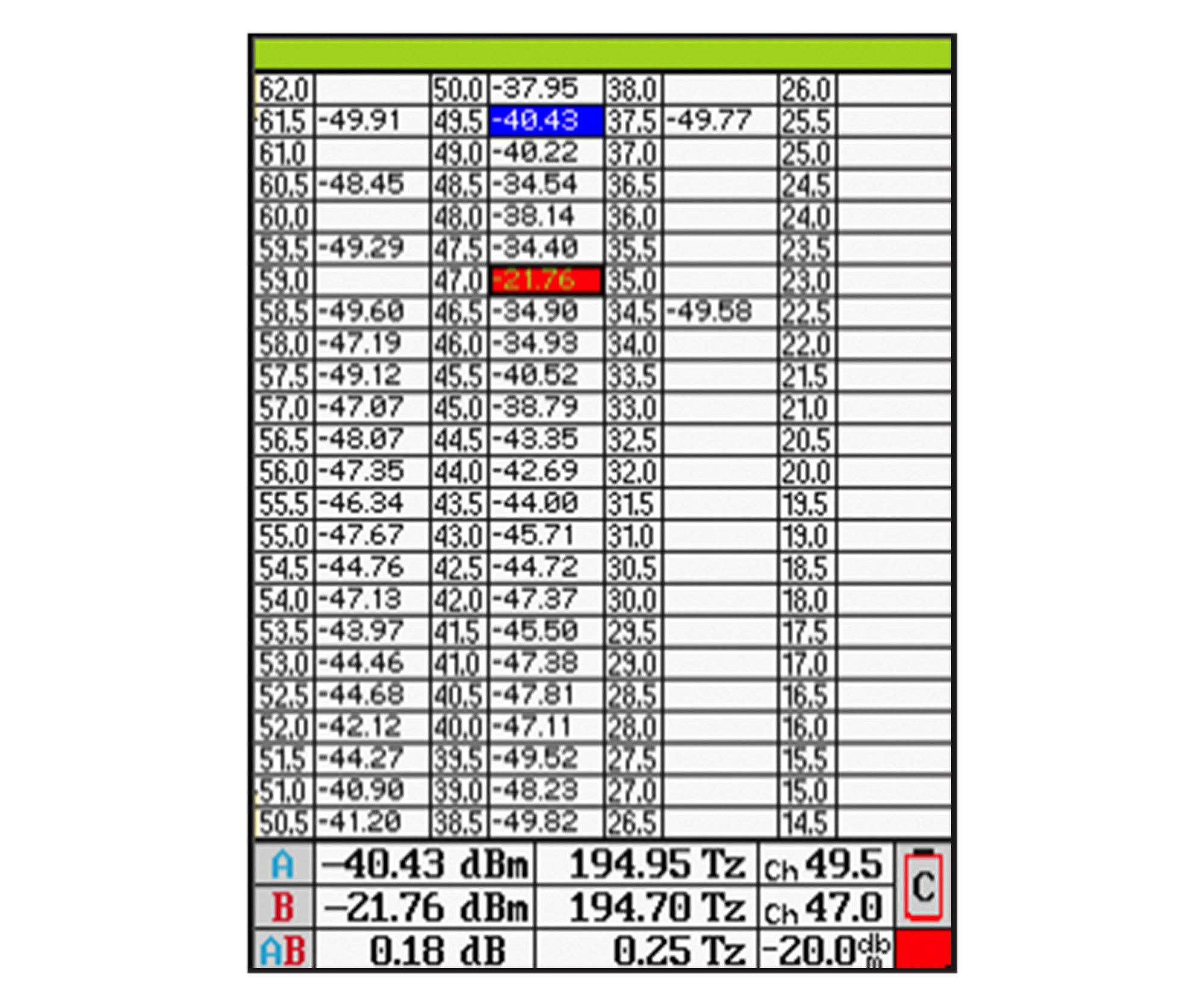

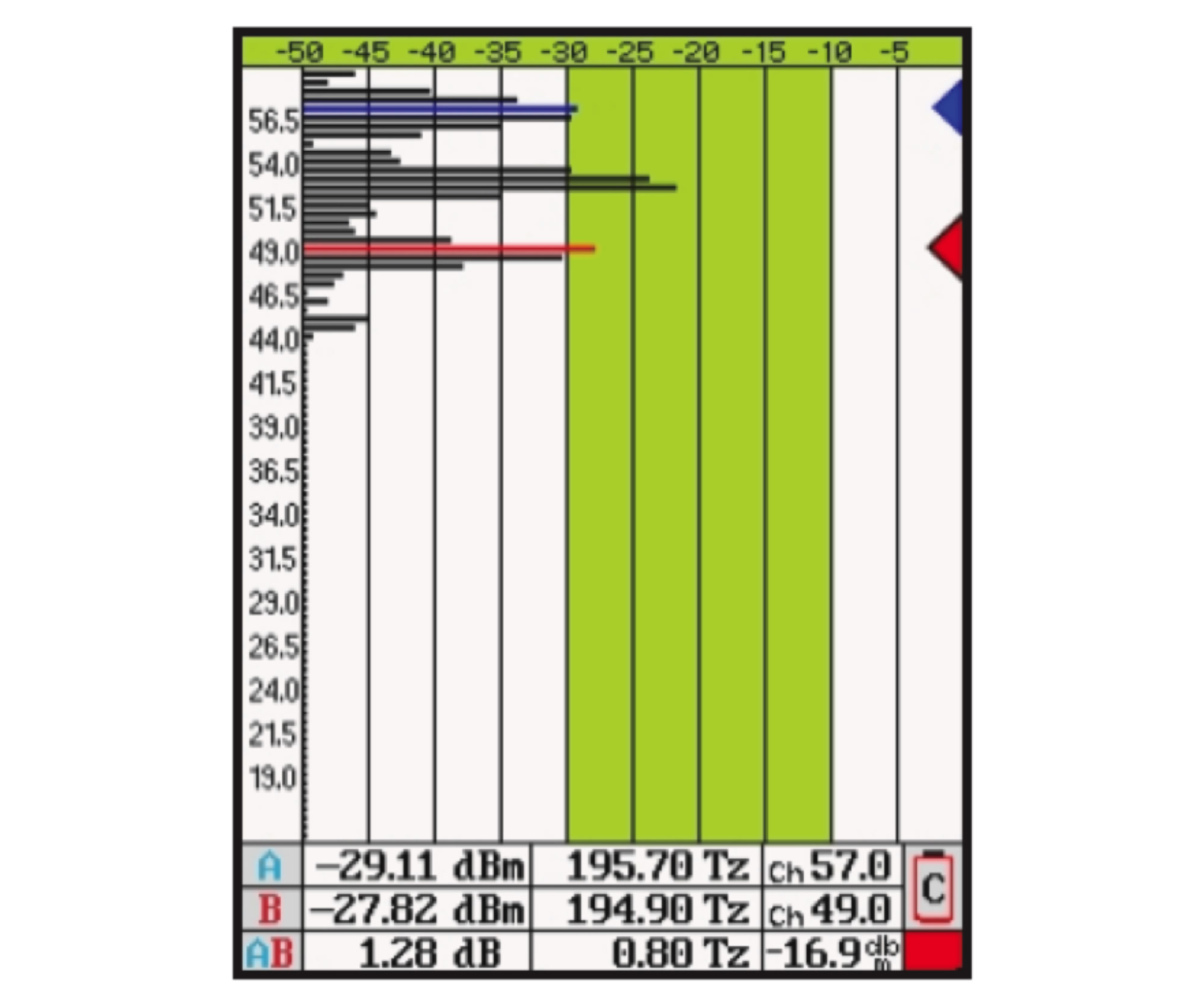

  • Bar graph and table display, pass/fail thresholds and rugged design

Anwendungen

  • Channel Checker
  • DWDM networks

Spezifikationen

Handheld
Deployment Field
Recalibration Month Interval 12
Test Type Optical power / Wavelength measurement
Vollständige Spezifikationen

Ressourcen

Datenblatt

FOT-5205 DWDM channel checker
Bedienungsanleitung

FOT-5205 Hand held DWDM channel checker
Alle Ressourcen

Beschreibung

Deploying Remote PHY? Meet your new best friend.

For cable operators, Remote PHY is the next major network architecture change. This new technology brings fiber much deeper into the network—and much closer to the end user. Remote PHY also triggers the evolution from analog optics to digital optics, featuring Dense Wavelength Division Multiplexing (DWDM) for increased capacity.

The FOT-5205 meets the testing needs of Remote PHY deployments in terms of spectral range, power range and channel spacing. It is the ideal tool for successful network commissioning and effective troubleshooting.

Extremely fast measurement time

EXFO understands that field technicians want to get the job done the first time—and quickly. The FOT-5205 boasts a measurement time of less than 0.5 seconds, one of the fastest in the industry.

Unparalleled testing capabilities

Unlike some competing products, EXFO’s FOT-5205 is sensitive enough to detect low power signals, down to -50 dBm. This feature is especially important when measuring through monitor ports because these reduce the signal power by approximately 20 dB.
