Optical Wave Expert -

Übersicht

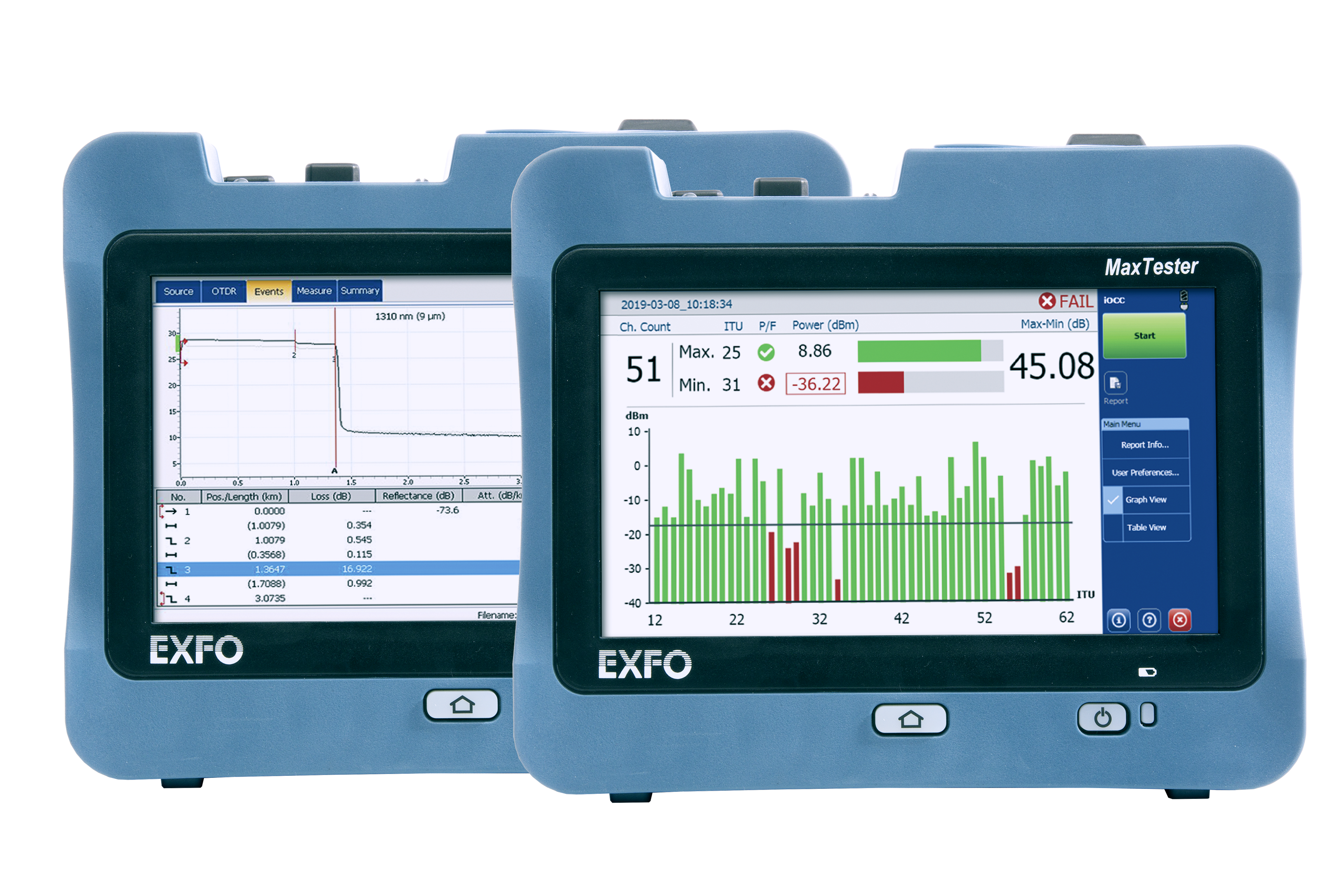

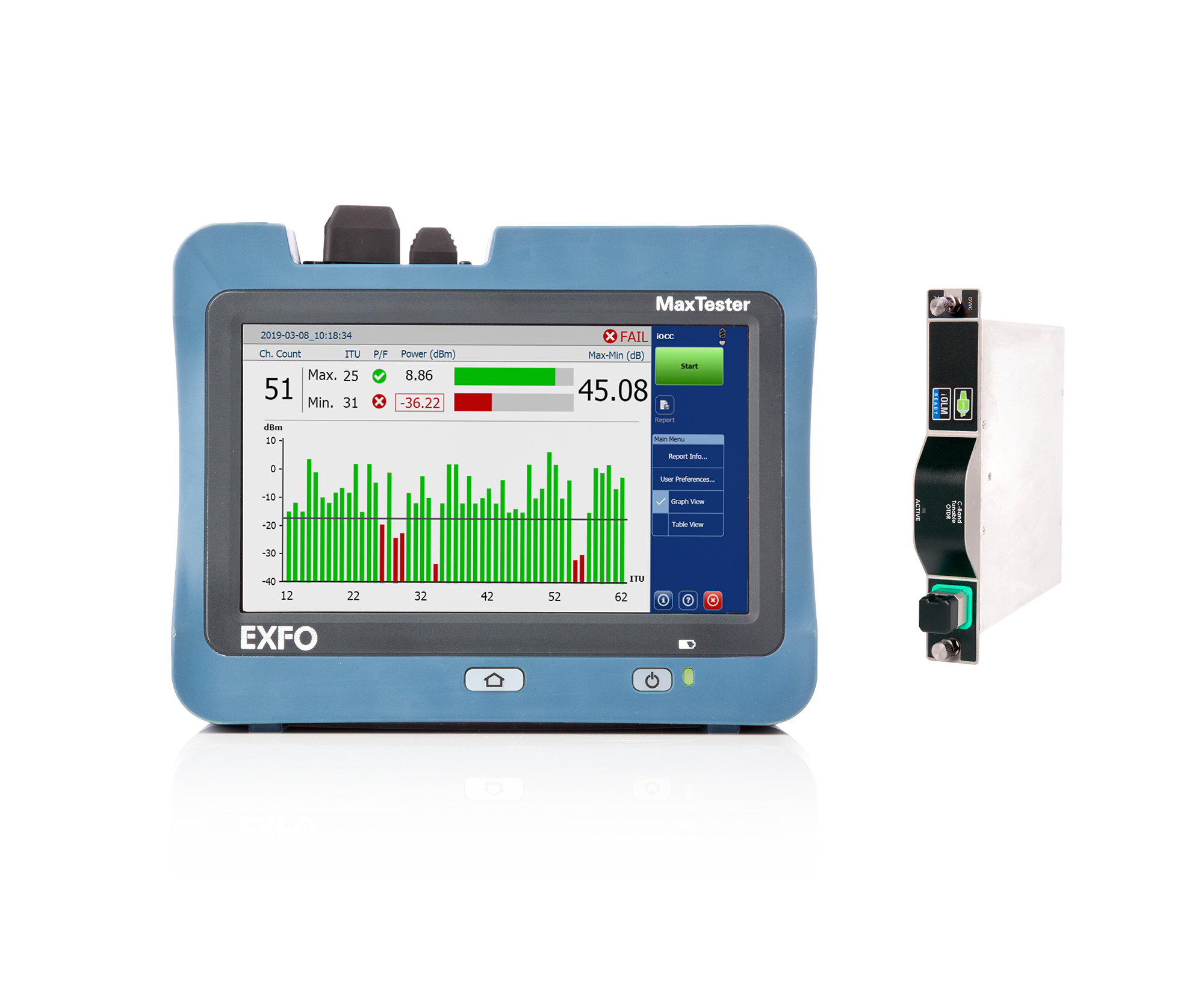

Now available in MaxTester and FTBx format. A handheld tester combining DWDM channel power validation with OTDR capabilities on a single port.

Leistungsmerkmale

  • DWDM channel checker & OTDR capabilities integrated on a single port (patent-pending)
  • Intelligent channel power level diagnostics (iOCC)
  • Compact and portable form factor
  • iOLM-ready: one-touch multiple acquisitions, with clear MUX/ DEMUX characterization
  • Bar graph and table view on wide touchscreen display
  • In-channel and out-of-band testing of active networks

Anwendungen

  • DWDM link characterization through MUX, DEMUX and OADM
  • DWDM link troubleshooting (DAA, RPHY or C-RAN)
  • DWDM metro Ethernet links
  • Deployment of commercial services
  • P2MP access networks

Spezifikationen

850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650
Handheld
Dynamic range (dB) 40 dB
Recalibration Month Interval 12
Test Type Fault location / Fiber characterization / Fiber length / Loss / ORL / Optical Power (optional)
Vollständige Spezifikationen

Ressourcen

Datenblatt

Optical Wave Expert
Bedienungsanleitung

MaxTester Series
Alle Ressourcen

Beschreibung

The Optical Wave Expert integrates channel power validation and reflectometry characterization on a single port. This means that technicians can automatically identify faulty channels and follow through with fault location by leveraging intelligent OTDR capabilities.

The smart toggle to the OTDR mode is done automatically, without having to set any parameters. Technicians can now obtain instant channel power readings through an intuitive GUI and seamlessly benefit from tunable OTDR capabilities. The field-proven MaxTester platform provides a rugged and compact form factor that is purpose-built around practicality and efficiency.

The integration of channel checker and OTDR capabilities on a single port means less unnecessary manipulation of the optical fiber and improved field efficiency. This translates into faster mean-time-to-repair (MTTR) and makes the trial and error approach–which can disable nodes–obsolete.

The first integrated solution for DWDM troubleshooting

The Optical Wave Expert is an easy-to-use and compact handheld tester that eliminates the need for multiple instruments. With integrated channel checker and OTDR capabilities on a single port, troubleshooting DWDM is now a seamless, automated process.

Test DWDM seamlessly: Channel checker and OTDR

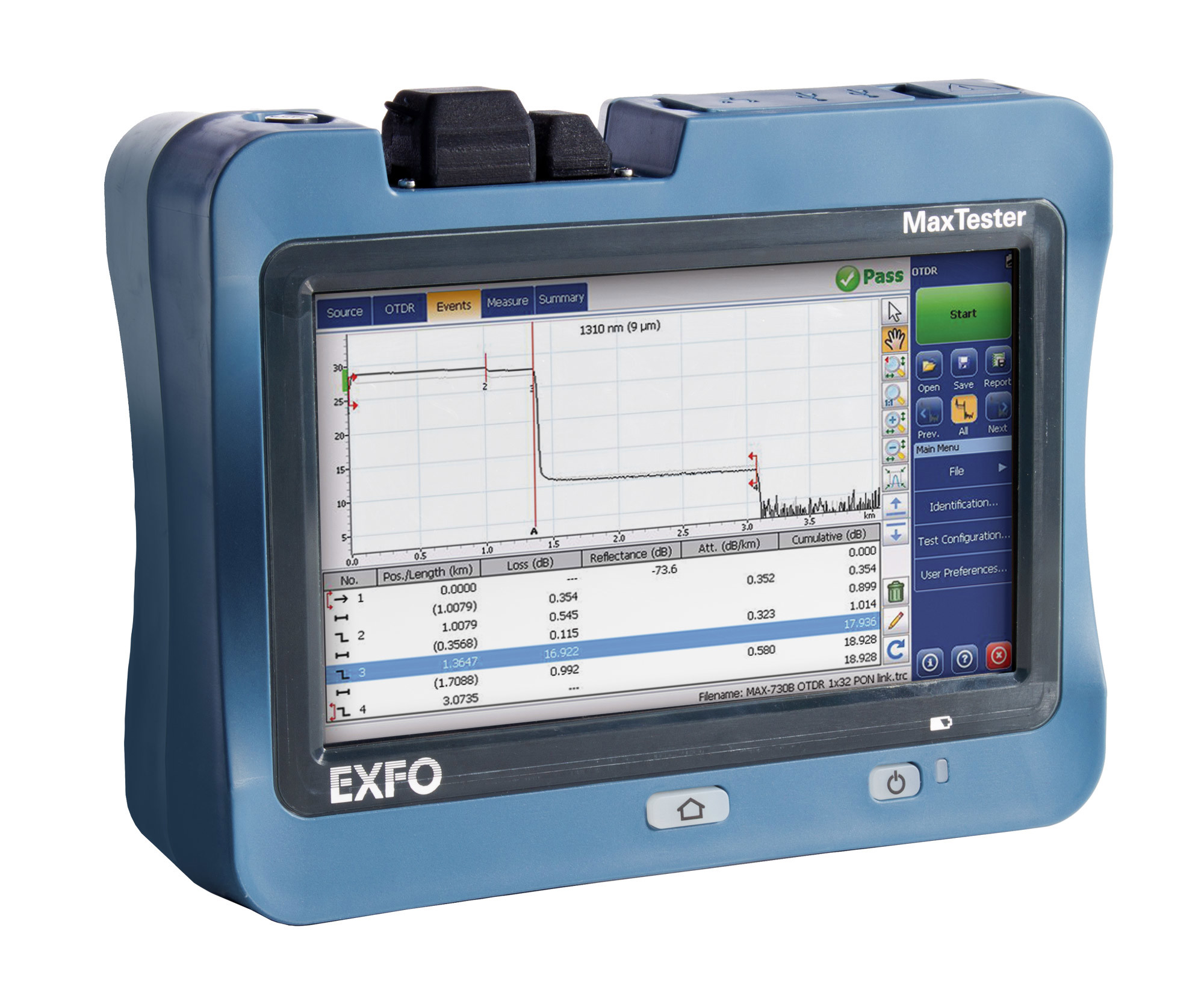

The intuitive graphical interface provides real-time channel power readings. If an issue is detected, the tunable OTDR capabilities automatically kick in to find faults. Results and diagnostics are clearly displayed on a wide touchscreen.
