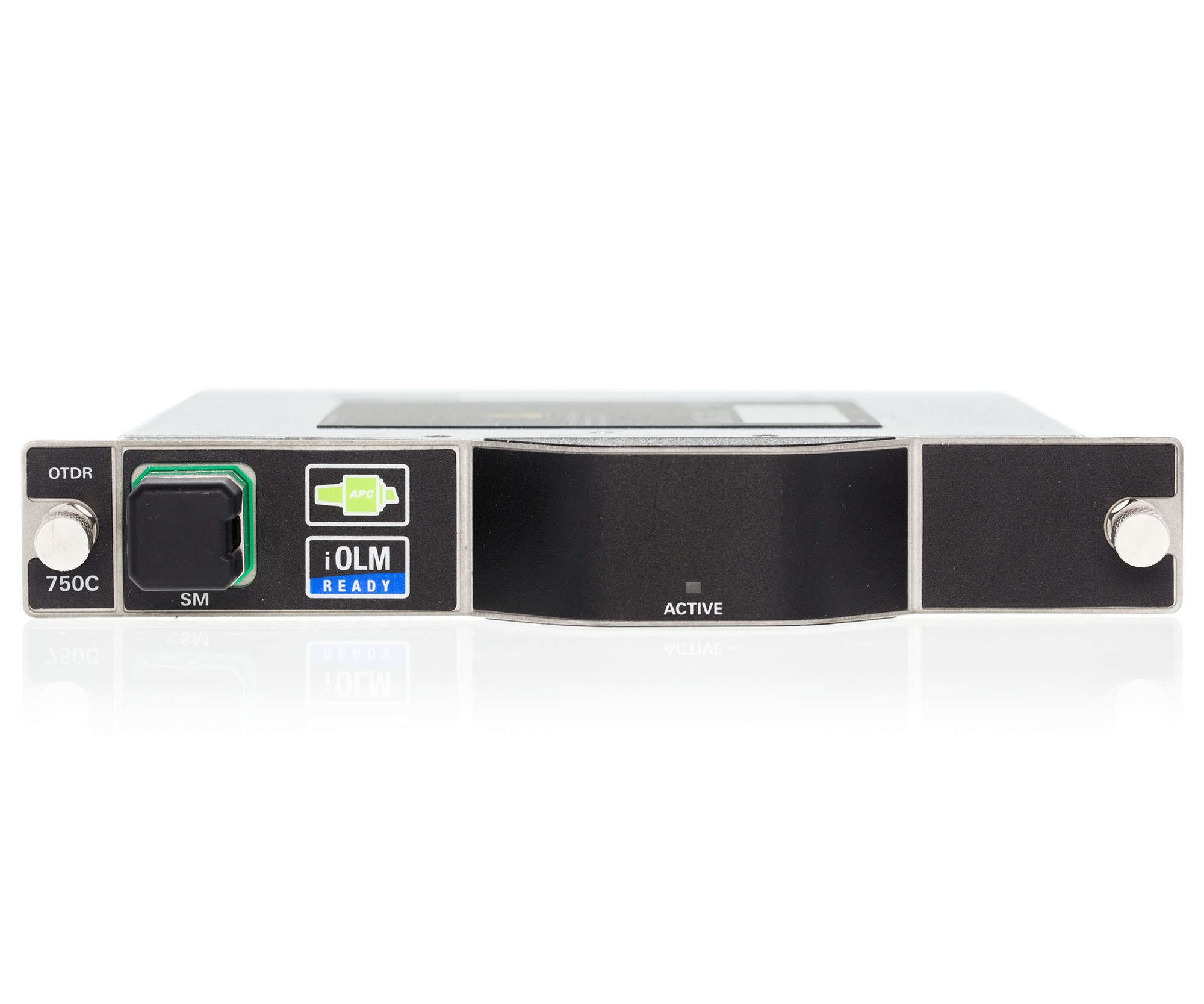

FTBx-750C - metro/longhaul OTDR

High dynamic range combined with high resolution for highly accurate fiber characterization

Datenblatt Bedienungsanleitung

Leistungsmerkmale

Dynamic range of up to 46 dB
Event dead zone of 0.5 m and attenuation dead zone of 2.5 m
Up to 256 000 sampling points
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Hollow core fiber capable

Anwendungen

Long-haul
Manufacturing automation
Metro

Spezifikationen

Technische Daten
Calibrated wavelengths 1310 / 1550 / 1625

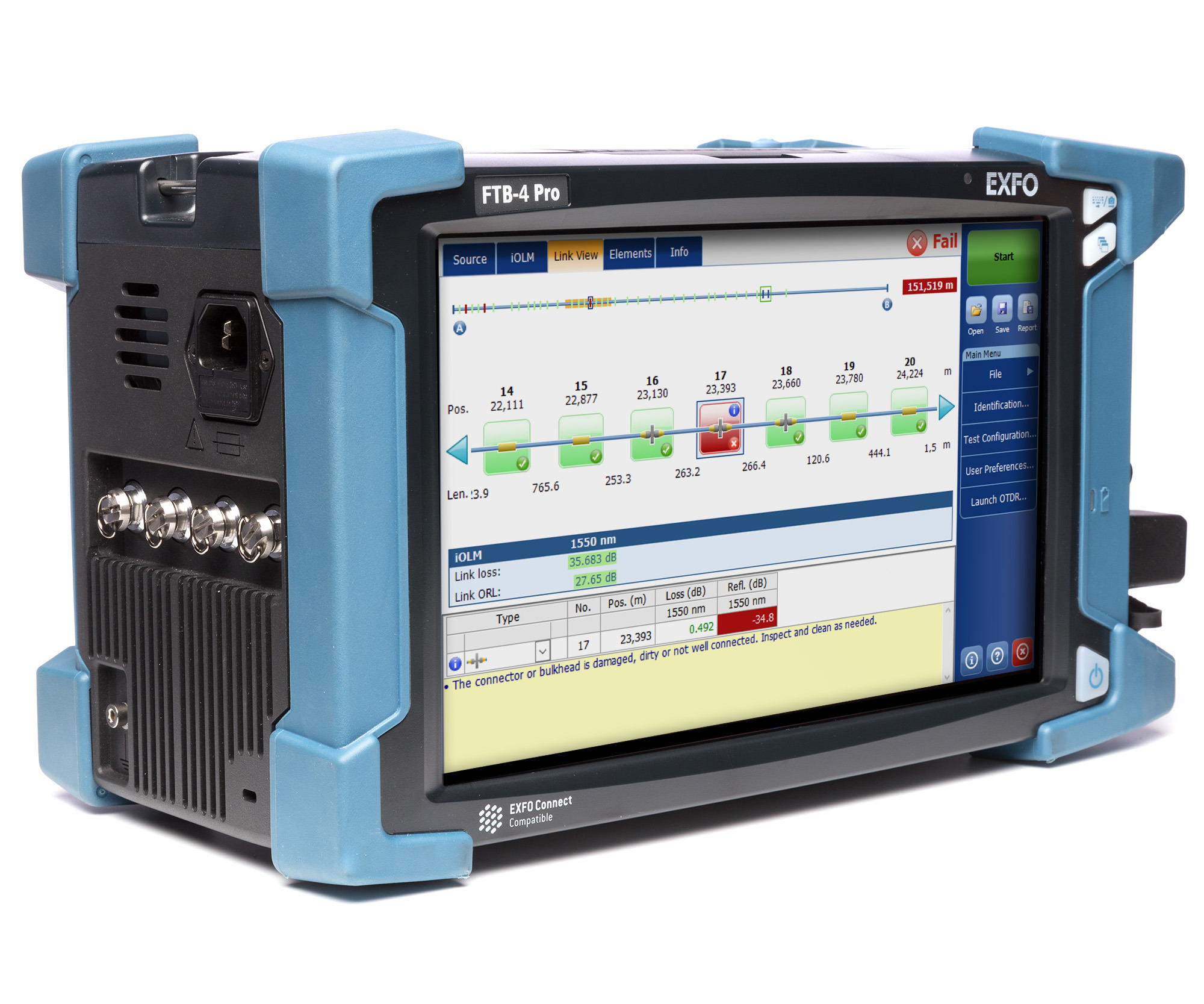

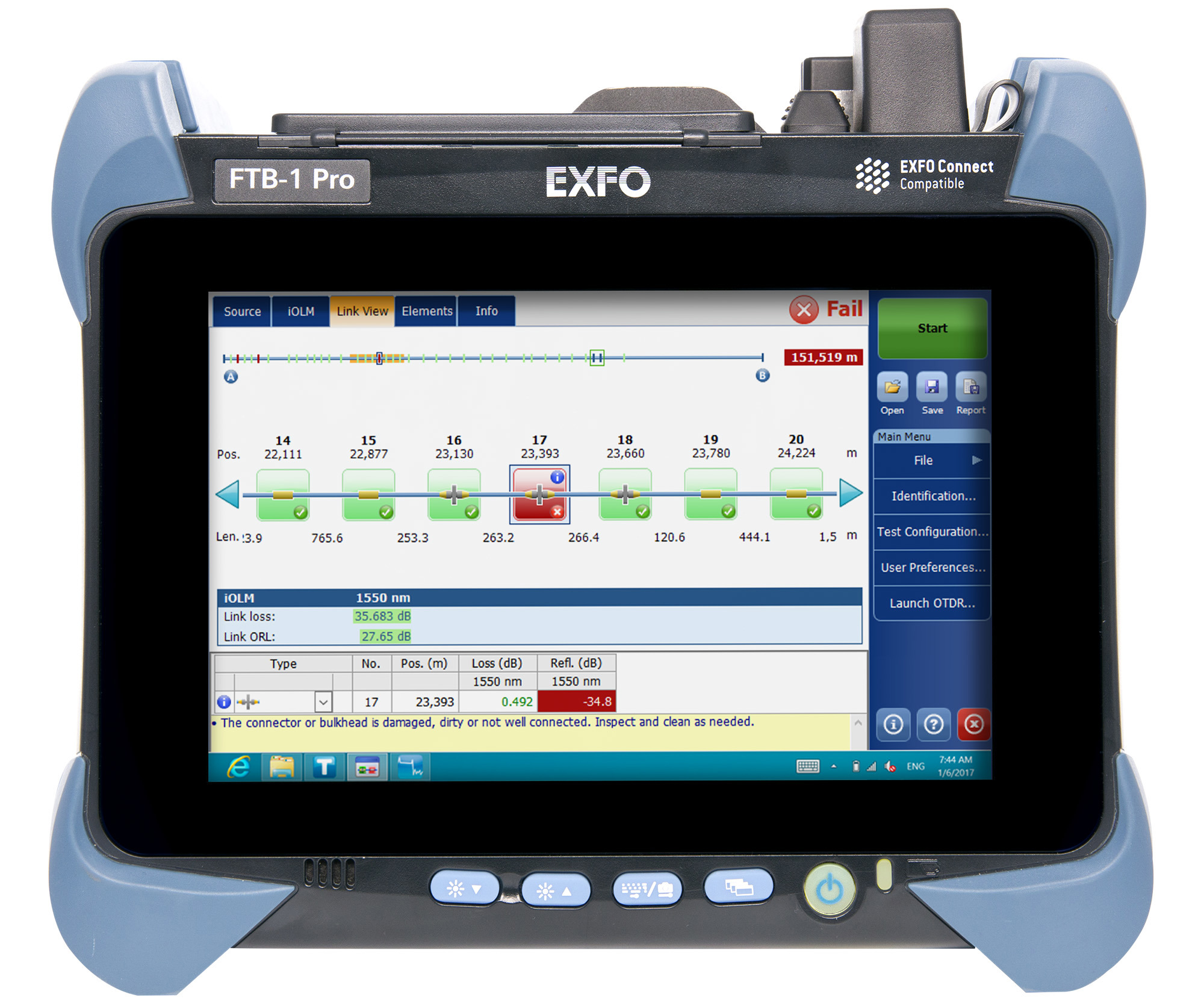

Compatible Products FTB-1V2-PRO / FTB-2-PRO / FTB-4-PRO / LTB-12 / LTB-8 / LTB-2
Dynamic range (dB) 46 dB
EXFO Exchange-Kompatibilität Ja
iOLM-ready Ja
Product type Module
Typentest Fault location / Fiber characterization / Fiber length / Loss / ORL
