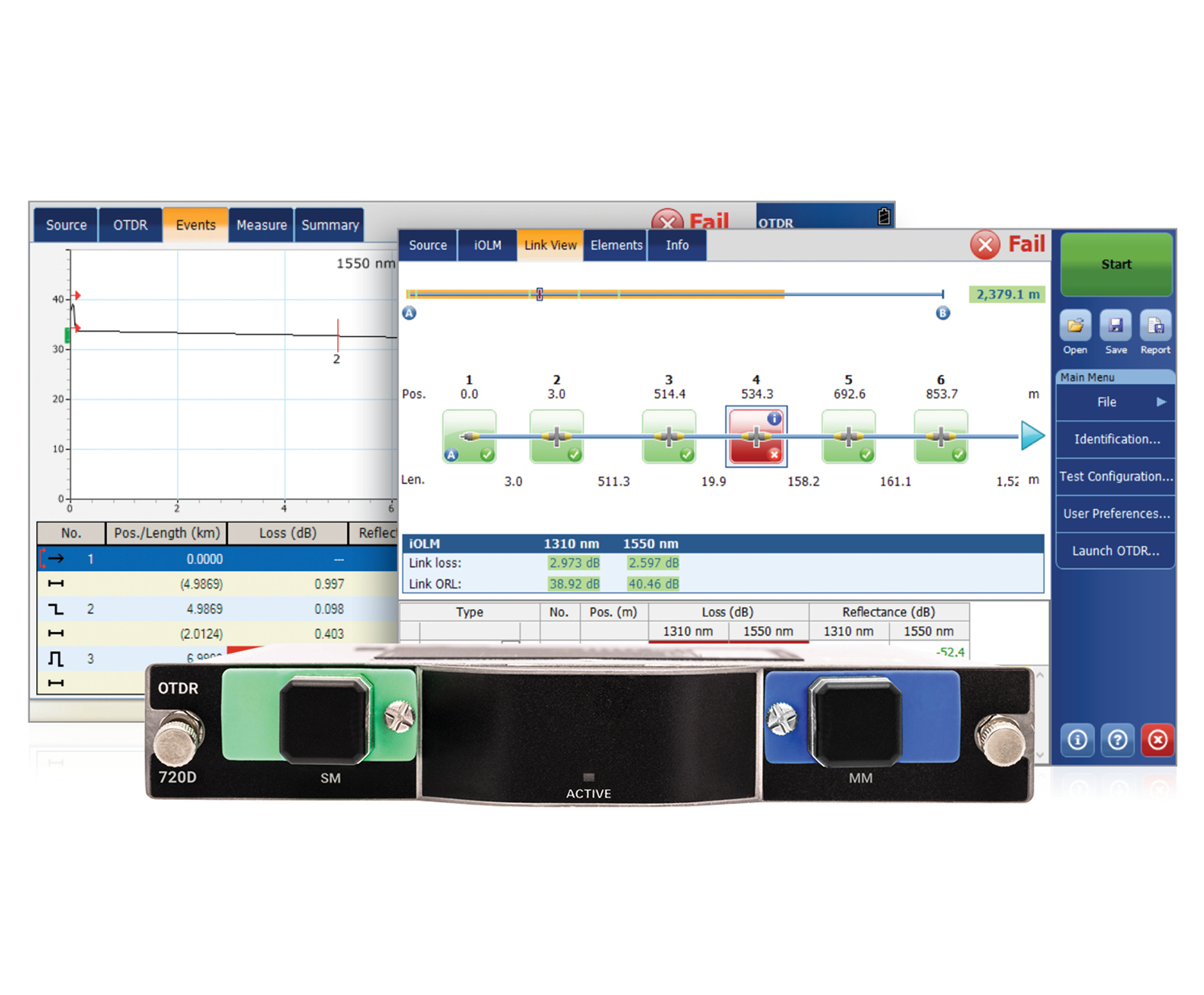

FTBx-720D - LAN/WAN access OTDR

Übersicht
Purpose-built construction OTDRs for everyday field testing in any access network. With an intelligent Optical Link Mapper (iOLM) application for both singlemode and multimode testing, this is the most automated and intelligent troubleshooting tool for FTTA, LAN and data centers.

Leistungsmerkmale

  • Dynamic range of up to 38 dB in singlemode and 30 dB in multimode
  • Quad singlemode/multimode version
  • FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter
  • Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
  • iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
  • OTDR, light source and power checker through single port to optimize the fiber handling process.

Anwendungen

  • Access network construction and troubleshooting
  • FTTx/PON testing though splitters (up to 1x32)
  • FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
  • Central office link certification
  • Data center and private networks
  • LAN/WAN characterization
  • Fronthaul/backhaul

Spezifikationen

850 / 1300 / 1310 / 1550 / 1650
Module
Distance Range Max 260
Distance Range Min (dB) 0,1
Dynamic range (dB) 38 dB in singlemode (SM), 30 dB in multimode (MM)
Kompatible Produkte FTB-1v2 Pro / FTB-4-PRO / FTB-2-PRO
Recalibration Month Interval 12
Vollständige Spezifikationen

Ressourcen

Datenblatt

FTBx-720D LAN/WAN Access-OTDR
Bedienungsanleitung

OTDR 2
Alle Ressourcen

Beschreibung

The FTBx-720D is an OTDR that is best suited for most typical short and access networks. It can perform both singlemode and multimode testing.

The FTBx-720D is designed for fronthaul/backhaul applications (FTTA, DAS, RRH, small cells), Tier-2 certification in data centers, enterprise and access networks, PON characterization and more.

The FTBx-720D test module is hosted within EXFO’s compact modular platforms that can also be equipped with other testing capabilities such as Ethernet, CPRI or copper testing to provide a complete test solution for FTTA contractors.

The FTBx-720D advantage

  • Accurately pinpoint faulty connectors or fiber breaks on short spans thanks to optimized multimode performance.
  • Multimode units are quad-ready to enable singlemode testing.
  • User-friendly graphical user interface.
