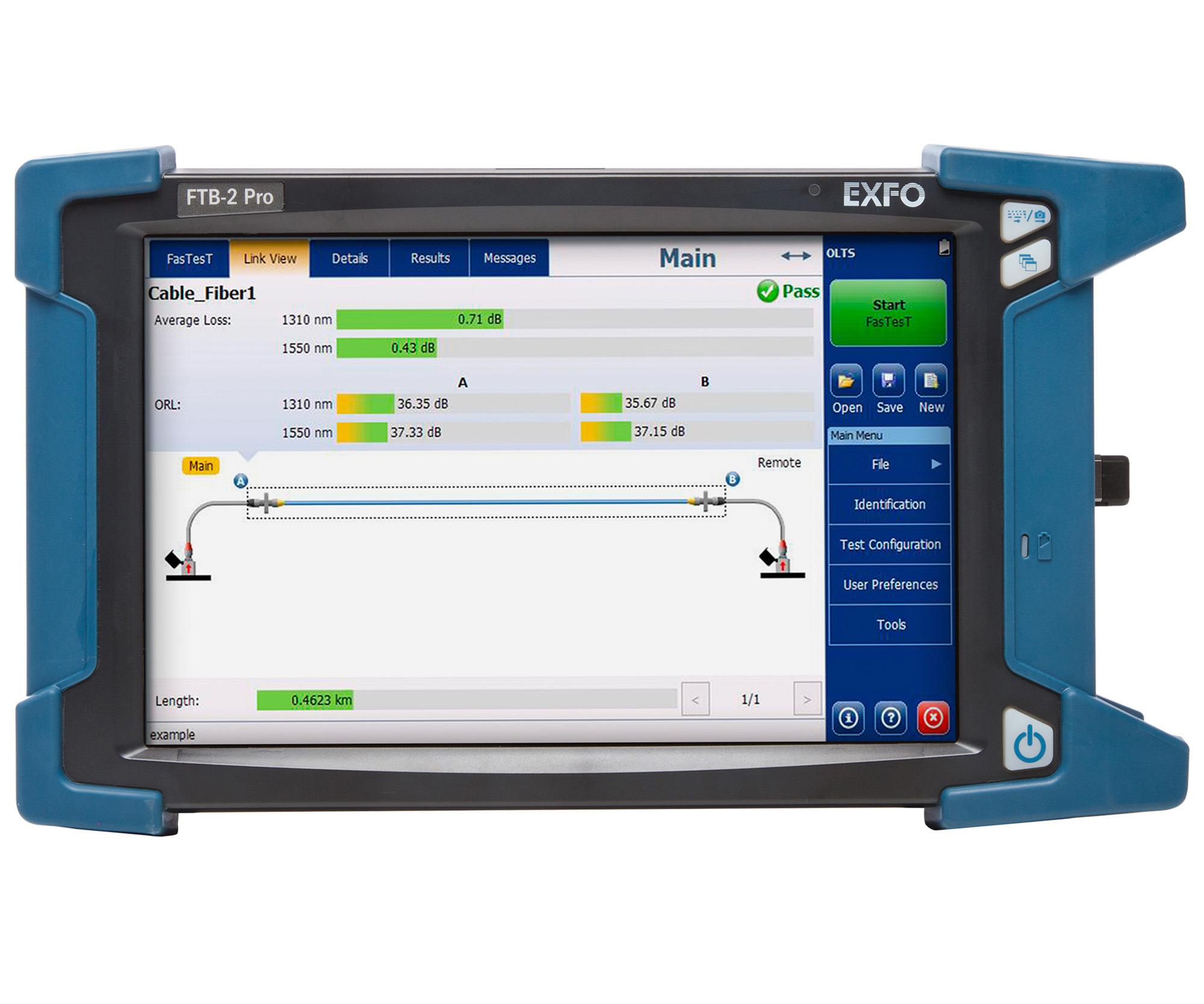

FTBx-945 Telco OLTS

Übersicht
Multifunction optical loss test set (OLTS) for the FTB-2 and FTB-2 PRO platforms

Leistungsmerkmale

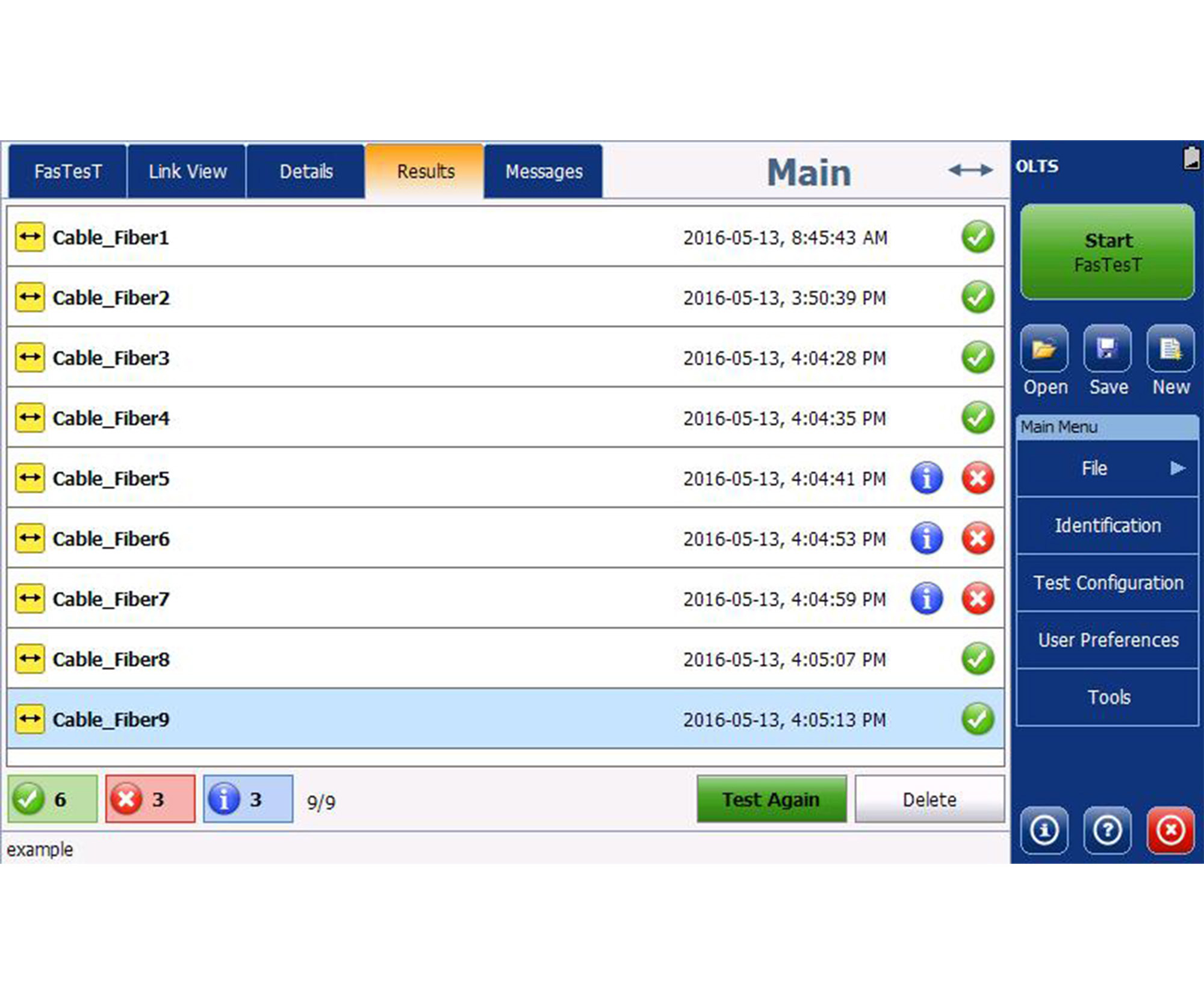

  • Perform 100% automated bidirectional tests at two wavelengths in under 5 seconds with FasTesT™
  • 100% automated fiber inspection: one-step process with pass/fail analysis at both ends

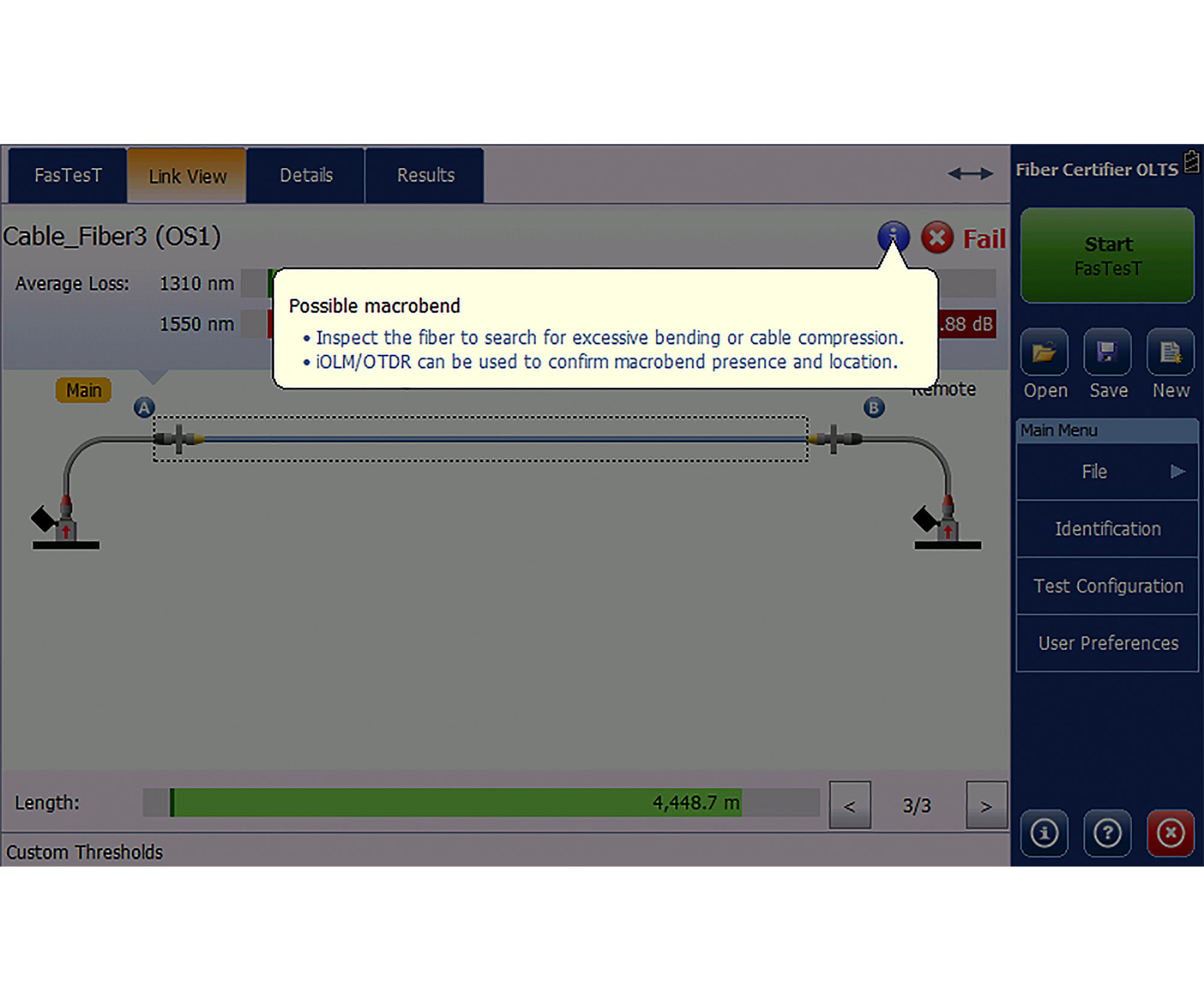

  • On-board assistant and diagnosis to reduce reference errors and negative loss
  • Improved short fiber measurement
  • Compatible with FTB-2 and FTB-2 PRO platforms
  • Best-in-class singlemode distance range of 200 km

Anwendungen

  • FTTx construction
  • Telecommunications and outside plant network testing
  • Data centers
  • Enterprise structured cabling

Spezifikationen

850 / 1270 / 1290 / 1300 / 1310 / 1330 / 1350 / 1370 / 1383 / 1390 / 1410 / 1430 / 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 / 1610 / 1625 / 1650
Module
Automation Automated (FasTesT™)
Fiber Connector Type ST / SC / LC / E2000
Fiber Type Singlemode
Measurement Type Link loss / Optical return loss (ORL)
Multiple wavelength measuring
Recalibration Month Interval 36
Test Type Fiber length / Loss / ORL / Optical power
Tone Detection
Visual Fault Locator (VFL)
Vollständige Spezifikationen

Ressourcen

Datenblatt

FTBx-945 Telco OLTS
Alle Ressourcen

Beschreibung

Telco fully automated OLTS module

The FTBx-940/945 Telco OLTS can measure insertion loss (IL), optical return loss (ORL) and fiber length at two wavelengths under 5 seconds via fully automated bidirectional FasTesT™ analysis. FTTx certification and outside plant network testing just became a lot faster.

OLTS module for Telco, FTTx and outside plant testing

Ever since its introduction in 1996, the patented FasTesT™ technology revolutionized the industry by fully automating the test sequence, thereby saving countless hours of testing and troubleshooting in the field. Proven in thousands of diverse network deployments across the globe, FasTesT™ truly generates CAPEX/OPEX savings.
