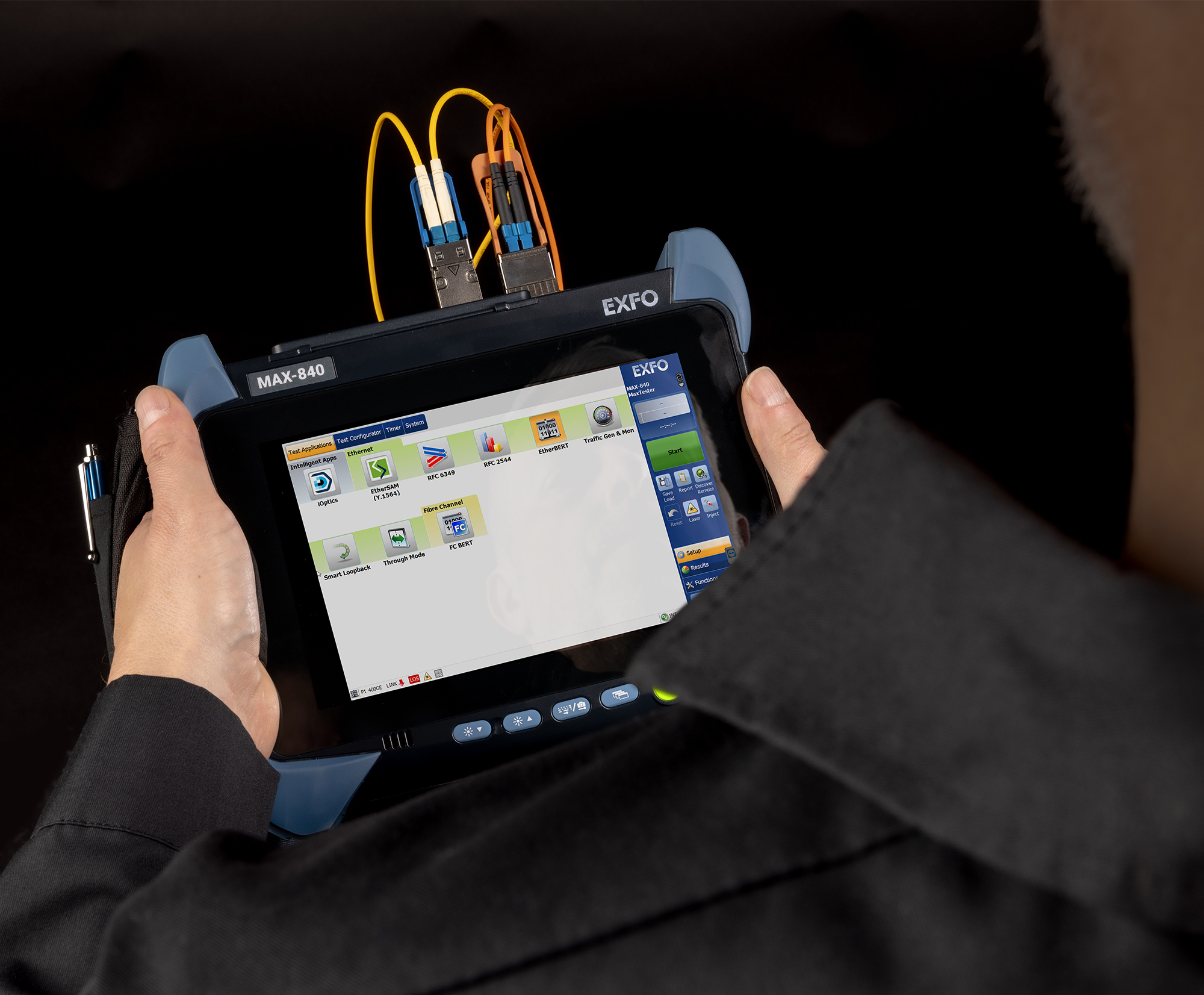

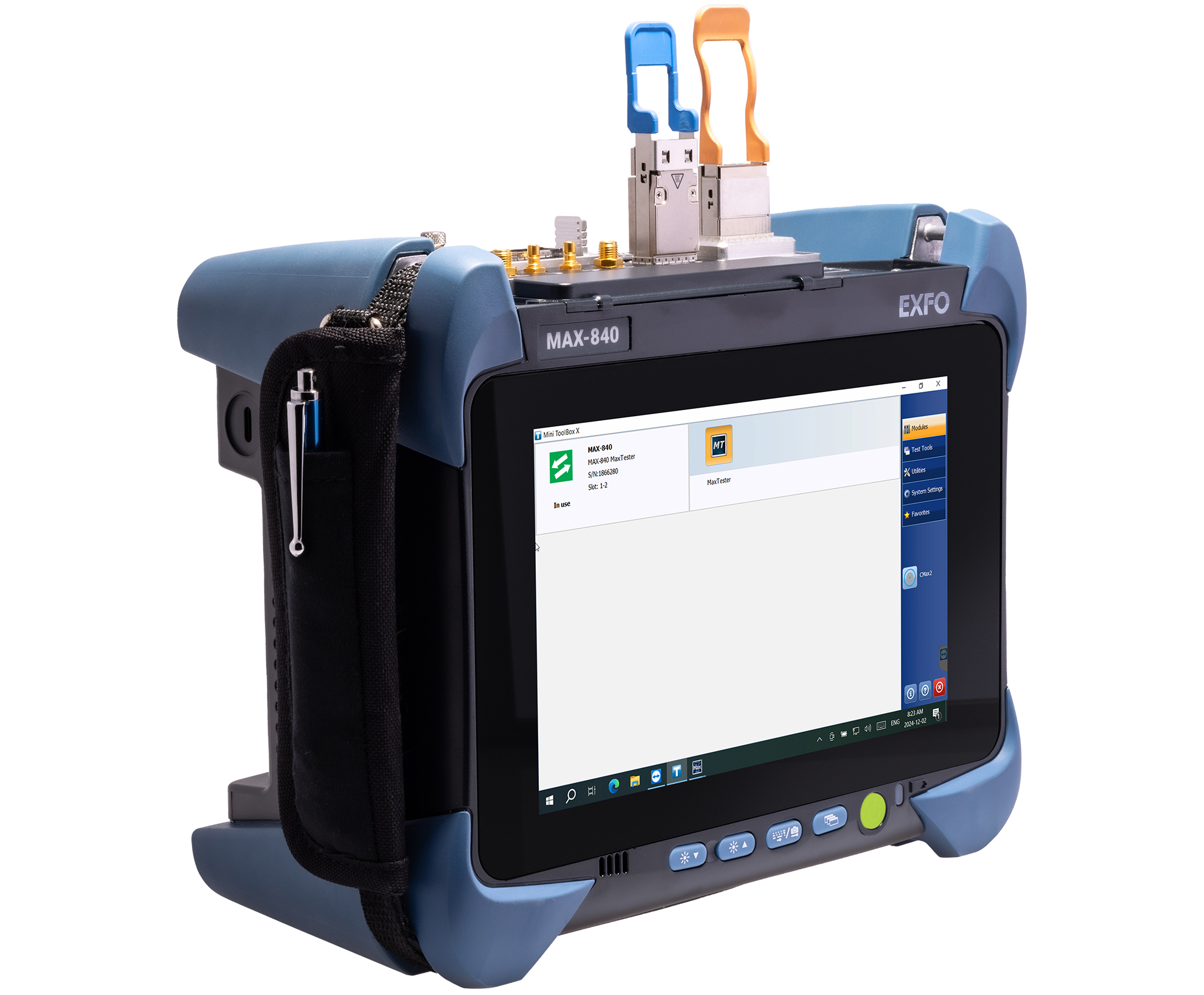

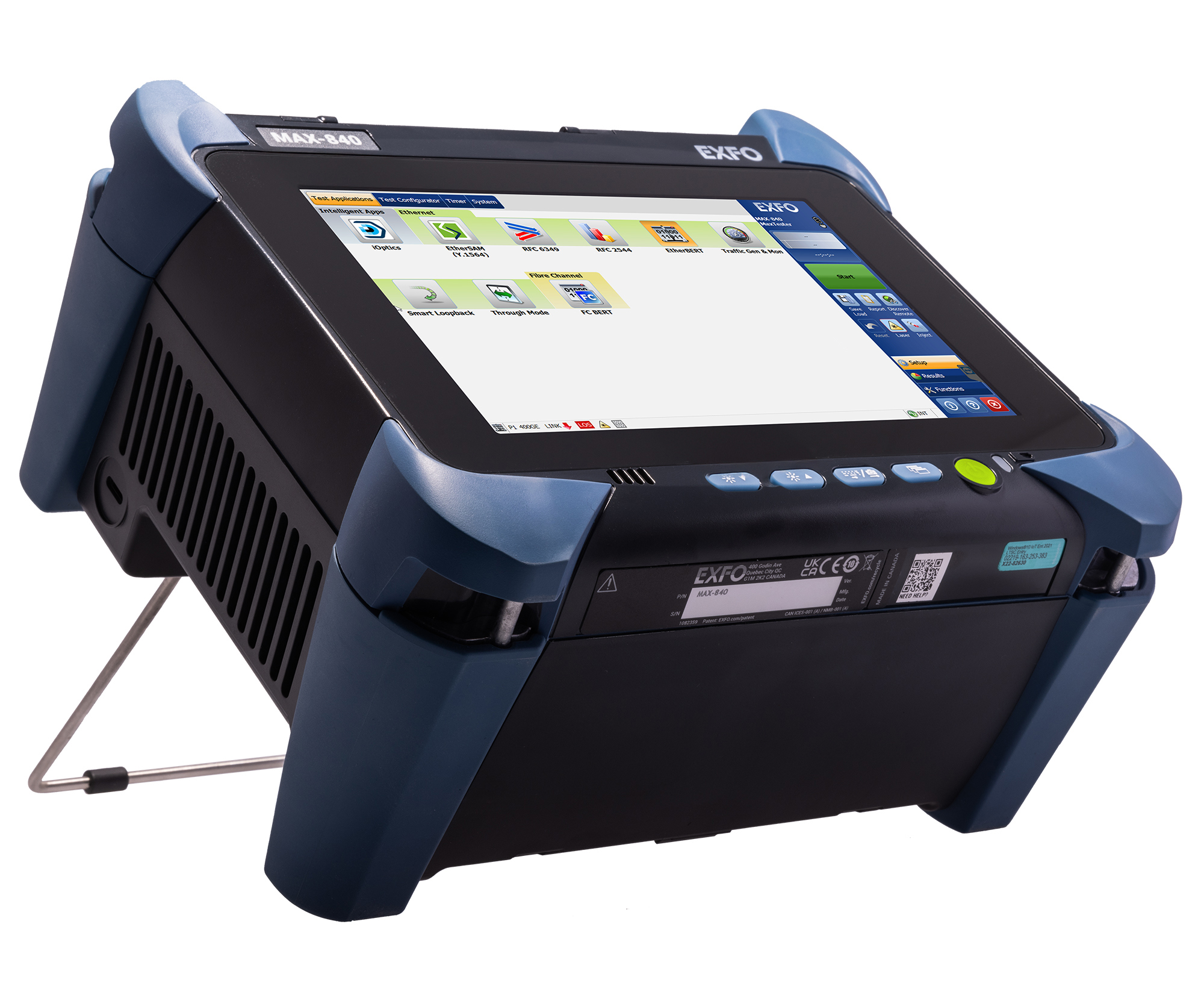

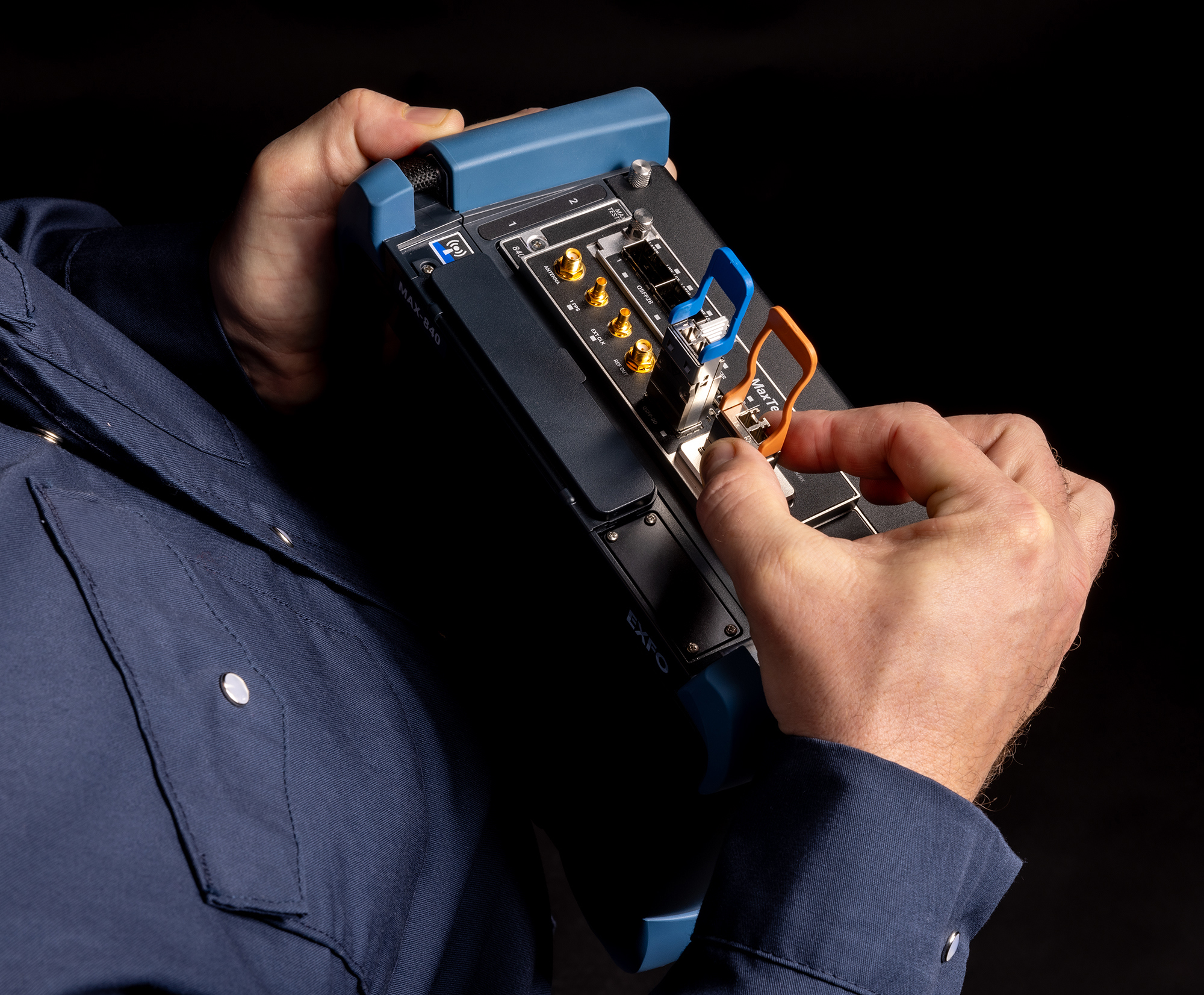

MAX-840 - 400G Ethernet tester with 100G-start option

Start your 400G journey, your way.

The MAX-840 Ethernet tester is a go-anywhere compact, upgradeable solution including 1G to 400G Ethernet testing capabilities based on the latest IEEE standards. It features a journey-to-400G design for ultimate flexibility; go with 400G now or start with up-to-100G testing and upgrade to 400G later. Covering the basics, it includes EtherBERT, TGEN, BERT, RFC2544, Fibre Channel (1X – 32X) and other core testing requirements. It supports a wide range of pluggable transceiver form factors, including SFP28, QSFP28, QSFP-DD, QSFP112, and OSFP.  The MAX-840 includes iOptics, an intelligent pluggable optics test application that can quickly validate any pluggable transceiver from 1G to 400G, as needed.

Übersicht
The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.

Leistungsmerkmale

  • 1G to 400G Ethernet testing capabilities based on IEEE standards
  • Start with up-to-100G testing and upgrade to 400G later, or go with 400G right now
  • Fibre Channel testing from 1X to 32X
  • Validate pluggable optics fast, including AOC and DAC cables, with EXFO’s iOptics automated intelligent test application
  • Automatic plug-and-play transceiver detection with the iOptics test application
  • Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers

Anwendungen

  • Core and metro-edge network testing
  • Data centers
  • 4G/5G backhaul testing
  • Service activation

Spezifikationen

Supported data rates 1G / 10G / 100G / 400G

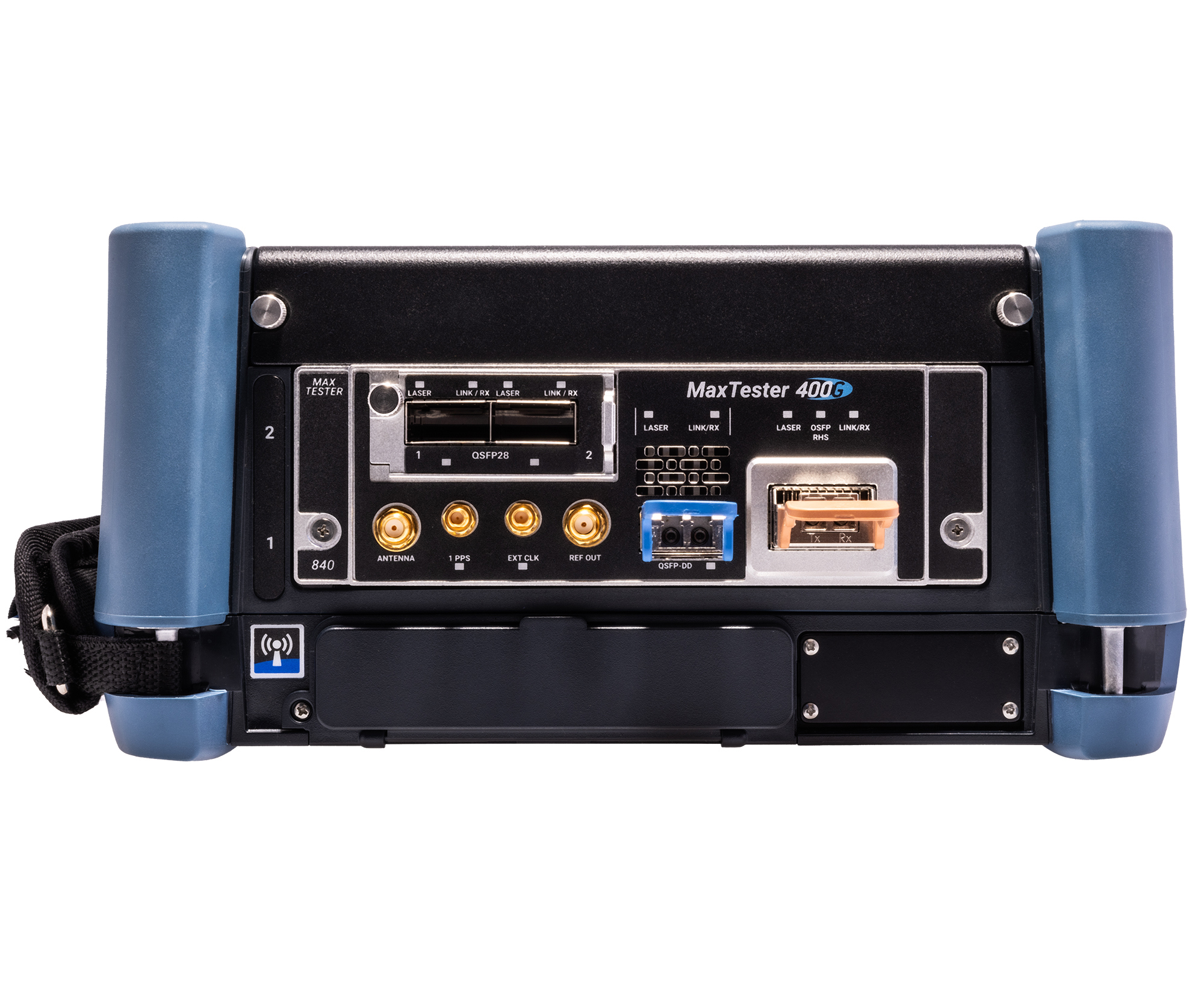

Supported Interfaces SFP28 / QSFP28 / QSFP-DD / OSFP
Test Type Fibre channel / Ethernet / EtherBERT / iOptics / EtherSAM (Y.1564) / RFC6349 / OTN BERT
Vollständige Spezifikationen

Testergebnisse teilen. Konformität steigern. Erkenntnisse gewinnen.

Cloudbasierte Lösung zur Ergebnisverwaltung und Compliance-Optimierung.

In Kombination mit EXFOs führenden Testinstrumenten treibt EXFO Exchange ein ganzes Ökosystem voran – nahtlos integriert in bestehende Betriebsprozesse.

Wichtigste Vorteile :


icon automate test results managementAutomatisierte Verwaltung von Testergebnissen

icon boost compliance efficiencyHöhere Konformität und Effizienz.

icon improve collaboration visibilityVerbesserte Zusammenarbeit und Transparenz.

icon access comprehensive reportingUmfassende Berichterstattung.

icon unlock insights see what mattersErkenntnisse gewinnen – sehen, was wirklich zählt.
