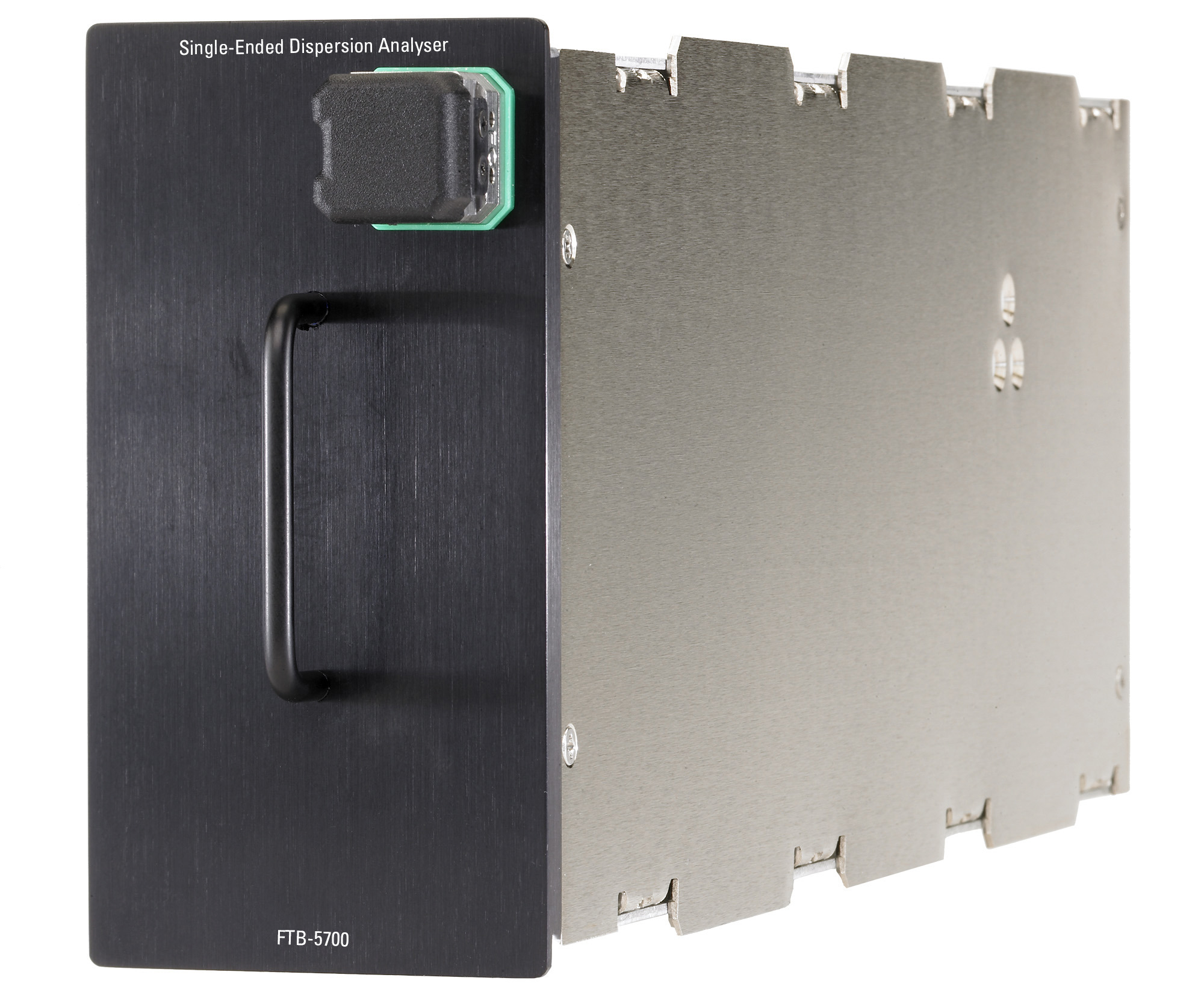

FTB-5700 - Single-ended dispersion analyzer

Übersicht
Optimized CD/PMD characterization with single-ended testing of multiple links from one location.

Leistungsmerkmale

  • Single-ended testing efficiency: Conduct CD/PMD tests on multiple links from a single location, minimizing truck rolls and reducing operational expenses
  • Rapid and accurate: CD and PMD results in under 30 seconds.
  • Connectivity: Leverage cloud-hosted capabilities for job management and reporting with EXFO Exchange and ensure operational compliance across teams.
  • Extensive band coverage: Test O band and SCL bands.
  • Compact and portable: Housed in the FTB-1 V2 Pro, FTB-2 Pro and FTB-4 Pro for ultra portability.
  • Standards compliance: Adhere to industry standards (e.g., ITU-T G.650.3, EIA/TIA FOTP-175B, EIA/TIA FOTP-243 and IEC 61282-9).

Anwendungen

  • Qualification up to 400G/800G and beyond
  • Metro, core, DCI and cellular/mobile xhaul network testing
  • Fully compliant fiber characterization (with OLTS and OTDR)

Spezifikationen

Module
Kompatible Produkte FTB-2-PRO / FTB-4-PRO / FTB-500
Module Number of Slots 2 slots
Recalibration Month Interval 12
Test Type Chromatic dispersion / Polarization mode dispersion
Vollständige Spezifikationen

Ressourcen

Datenblatt

FTB-5700 single-ended dispersion analyzer
Bedienungsanleitung

FTB-5700 Single Ended Dispersion Analyzer for FTB-500
Alle Ressourcen

Beschreibung

The need for CD/PMD testing

In high-speed networks, especially metro and edge networks, fiber characteristics like chromatic dispersion (CD) and polarization mode dispersion (PMD) significantly impact performance. As transmission rates increase and distances extend, testing these parameters becomes critical to avoid data integrity issues and service disruptions.


CD and PMD can cause bit-error-rate (BER) to climb and with it, network unreliability. Testing these factors is crucial, especially during upgrades that involve different fiber types, which may introduce varying dispersion characteristics.

Awards and reviews

Innovation and leadership have always been front and center at EXFO. Each year, we strive to develop solutions that will ensure superior customer experience in smarter, modern networks. Being recognized as such is always a great honor. Learn more about our awards:

Erfolgsgeschichten

Alle Erfolgsgeschichten

Overcoming Dispersion Issues on High-Speed Mobile Backhaul

This case study explores how a wireless service provider overcame dispersion issues as it deployed 10G on the mobile backhaul. See how EXFO’s test solutions helped overcome their challenges.
