FTBx-735C - metro/PON FTTx/MDU OTDR

High-resolution OTDR designed for metro network testing and splitter characterization in PON FTTx applications.

  • Datum des Auslaufens: 01.05.2025
  • Datum der Beendigung des Dienstes und des Supports: 01.05.2030
  • Datum des Endes der Kalibrierung: 01.05.2030
Datenblatt Bedienungsanleitung

Leistungsmerkmale

Dynamic range of up to 42 dB, event dead zone 0.5m and atten. zone of 2.5m
Singlemode port for in-service troubleshooting with in-line 1490/1550 nm power meter
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

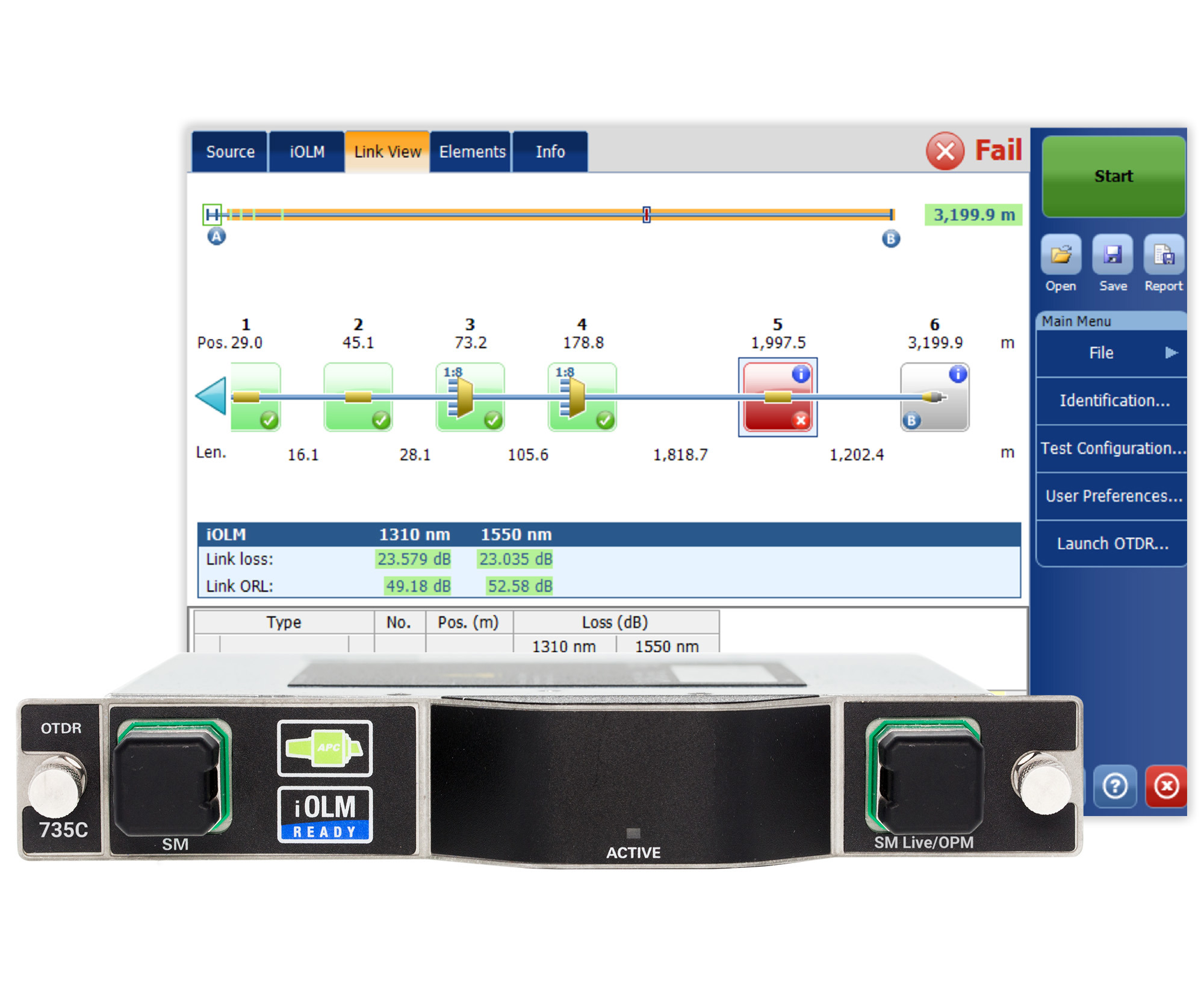

iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

Anwendungen

FTTx PON
Manufacturing automation
Metro

Spezifikationen

Technische Daten
Calibrated wavelengths 1310 / 1490 / 1550 / 1625
Dynamic range (dB) 42 dB
EXFO Exchange-Kompatibilität
iOLM-ready
Product type Module
Typentest Fault location / Fiber characterization / Fiber length / Loss / ORL / Optical power
Datenblatt

Beschreibung

The FTBx-735C has been designed to test FTTH/PON networks and longer links in the metro range. This OTDR has 42 dB of dynamic range to test up to 150 km of optical fiber. The PON-optimized performances of the FTBx-735C enable it to fully characterize links up to a 1:128 FTTH/PON splitter ratio.

With its high dynamic range, the FTBx-735C empowers technicians to test optical fibers with greater speed and accuracy.

The FTBx-735C advantage

  • The industry’s highest resolution for PON testing and the shortest PON dead zone to detect more problems closer to the splitter.
  • High resolution for maximum fiber characterization on long links up to 150 km. Ideal to support bidirectional testing.
